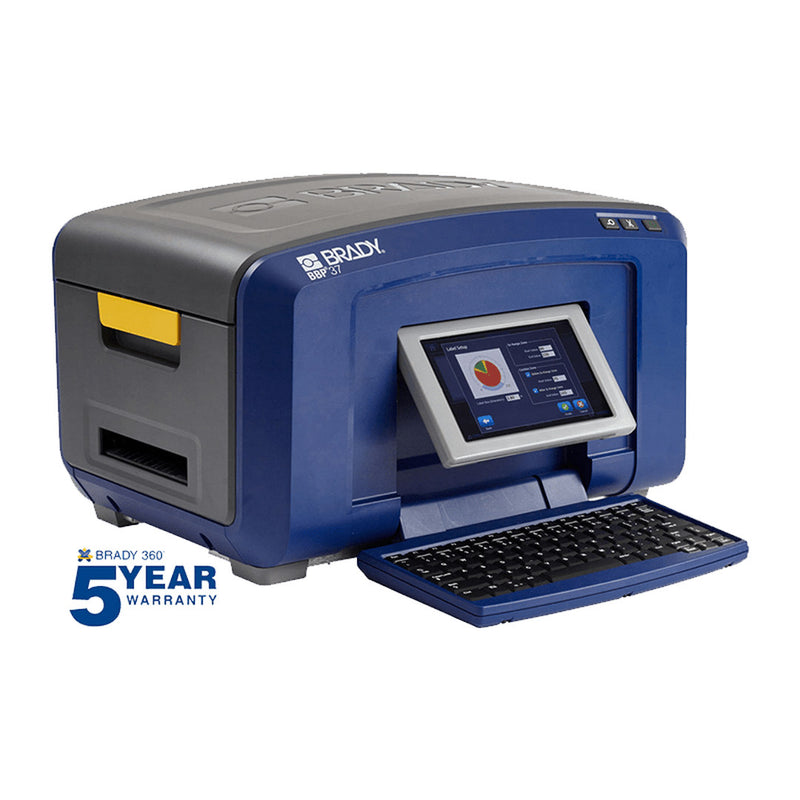

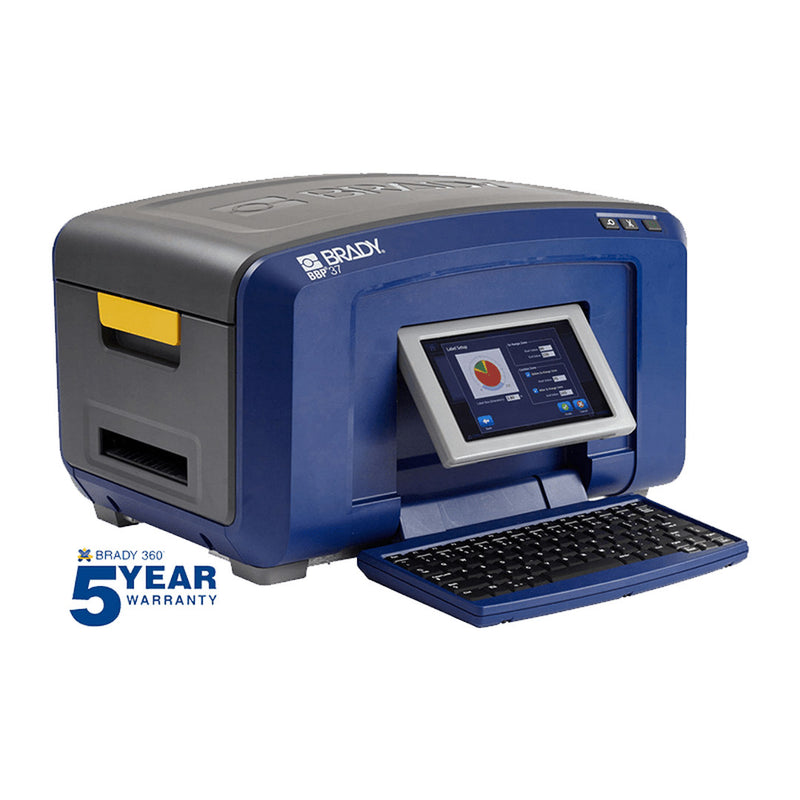

Brady BBP37 Sign and Label Printer
SKU: 876623
$6,193
Brady BBP37 Sign and Label Printer
 |
DATA SHEET |
|
SPEC SHEET |
|
|
USER MANUAL |
|
|
QUICK START GUIDE |
|
|
WARRANTY |
Brady's BBP37 sign and label printers gives you the power to make signs and labels in the colours and shapes you need to make an impact - right at your own facility and right when you need them. With versatile shape-cutting capabilities and impressively fast print speeds, you'll never know how you lived without the BBP37.
Overview Brady BBP37
Create colourful workplace visuals with the BBP®37 Sign and Label Printer, which features an XY cutter, automatic setup, and 20-second material change out.
- The BBP®37 Colour and Cut, Sign and Label Printer can connect to a PC or operate as a stand-alone printer with a built in touchscreen and keyboard
- Choose from a variety of industrial-grade label and ribbon materials that click into place without calibration or threading
- With the XY cutter, you can create die-cut shapes and text that give you the flexibility to put your messages where you need them most
- Print multi-coloured signs and labels that are more noticeable, more memorable and more effective
Specifications Brady BBP37
| Automatic Label Set Up | Yes |
| Barcode Capability | Barcode Capable |
| Calibration Required? | No |
| Color Printing Capability | Multi-Color |
| Custom Media Parts Available | No |
| Dimensions | 280mm H x 480mm W x 360mm D |
| Display Size | 155mm W x 90mm H |
| UOM | Each |
| Estimated Media Changeover Time | 20 s |
| Font Sizes | 12mm to 89mm Text |
| Maximum Printed Label Length | 2530 mm |
| Maximum Label/Tape Width | 108mm |
| Maximum Liner Width | 110mm |
| Maximum Print Speed | 127 mm/s |
| Maximum Print Width | 102mm |
| Minimum Label Length | 12mm |
| Number of Symbols | 664 |
| Special Characters Quantity | 95 |
| Power Supply Voltage | 110 to 240 V |
| Print Multiple Copies | Yes |
| Print Preview Feature? | Yes |
| Print Resolution | 300 dpi |
| Product Number | 143638 |
| UPC | 754473955540 |
| Trade Name | BBP®37 |
| Warranty | 5 Years |
| Weight | 16.5kg |
| Applications | Arc Flash Labels, Cold-Temperature Labeling, Equipment Marking, Facility ID, GHS & Chemical Labels, Glow in the Dark Labels, Lean/5S, Magnetic Labeling, Panel Labeling, Pipe & Valve Marking, Push Button Labeling, Reflective Labels, Safety Labeling, Signs, Tags |
| Barcode Symbologies - Linear | Code 128 Auto, Code 39, Interleave 2 of 5, More Through Brady Workstation |
| Barcode Symbologies - 2D | More Through Brady Workstation, PDF 417, QR Code |
| Label Material Types | Cold Temperature Tape, Indoor/Outdoor Grade Vinyl, Low-Halide Polyester, Magnetic Supply, Photoluminescent Tape, Pre-Printed GHS/CLP Labels, Pre-Printed Sign Header Labels, Push Button and Raised Panel Labels, Reflective Tape, Repositionable Vinyl, Right-To-Know Chemical Labels, Tags, TOUGHSTRIPE® Floor Marking Tape, TOUGHWASH® Washdown Resistant Labels |
| Connectivity Options | Ethernet, Standalone Use, USB |
| Continuous & Die-Cut Materials Supported | Continuous Tapes & Die-Cut Labels |
| Cutter Type | XY Cutter and Auto Cutter |
| Desktop Printer Model | BBP®37 Color & Cut Sign and Label Printer |
| Display Type | Color Touch Screen |
| Font Styles | Arial, Arial 65, Courier New, Tahoma, Times New Roman |
| Includes | BBP® 37 Printer, Cleaning Kit, Cutter Cleaning Tool, Network Card, Power Cord, Quick Start Guide, USB Cable |
| Keyboard Type | Full Size QWERTY |
| Label/Media Format | Cartridge |
| Built-In Label Wizards | Arc Flash, Circle Gauge, Custom Label, General Templates, GHS/CLP, Gradient Scale, Pipe Marker, PreMade Labels, Right-to-Know, Tags, WHMIS |
| Languages Available | English, French, Portuguese, Spanish |
| Maximum Labels per Day | 600 2"x4" labels per day, 300 larger labels per day, 8hrs / 5 days |
| Media Sensor Type | Notch |
| Memory | 240 MB |
| Mode of Operation | Stand-Alone & PC Connect |
| Patent Number(s) | 6364552, 6664995, 6768502, 6788324 |
| Plug Type | IEC Type B |
| Print Technology | Thermal Transfer |
| Units | Inches, mm, Points |
| User Interface Type | Keyboard, Touch Screen |
