GO Solenoid Valve 1/4
Dimensions - GO Solenoid Valve 1/4
Skip to product information
1 of 3

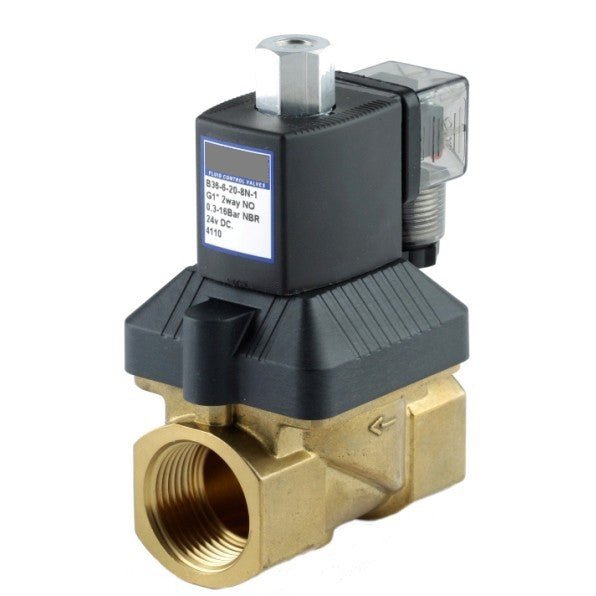

General purpose differential solenoid valve for air, water and non aggressive media up to 40CST viscosity. Designed with an anti water hammer diaphragm (slow close) making it great for mains water applications or downstream of a pump/compressor. Normally open (energise to close) and available in all voltages. Comes with coil (class H insulation) and DIN plug (IP65 protection). The coil is 100% ED rated for continual operation and the valve has a life expectancy of hundreds of thousands of cycles. Installation can be in any orientation however upright is always preferable if possible.

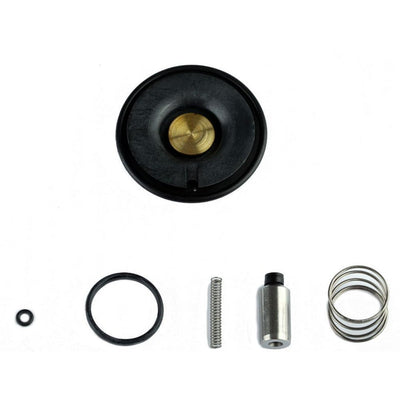

Model Port Size (BSP) Orifice (mm) CV Media Pressure Media Temperature Repair Kit Coil Specifications
B36-2-14-*N 1/4 14 3 0.3 to16 BAR -10°C to 80°C RK-B36-4-N SC-N13
11 Volt Amps
15 Watts
Class H Insulation
100% ED
B36-3-14-*N 3/8 14 4 0.3 to16 BAR -10°C to 80°C RK-B36-4-N
B36-4-14-*N 1/2 14 5 0.3 to16 BAR -10°C to 80°C RK-B36-4-N
B36-5-20-*N 3/4 20 10 0.3 to16 BAR -10°C to 80°C RK-B36-6-N
B36-6-20-*N 1 20 11 0.3 to16 BAR -10°C to 80°C RK-B36-6-N
B36-7-40-*N 1 ¼ 40 28 0.7 to16 BAR -10°C to 80°C RK-B36-8-N SC-N14
20 Volt Amps
21 Watts
Class H Insulation
100% ED
B36-8-40-*N 1 ½ 40 34 0.7 to16 BAR -10°C to 80°C RK-B36-8-N
B36-9-50-*N 2 50 50 0.7 to16 BAR -10°C to 80°C RK-B36-9-N


  • Size 1/4" to 2" BSP
  • Function Normally Open (power to close)
  • Valve Operation Servo Assisted
  • Body Brass
  • Seat NBR
  • Pressure Range 0.3 to 16 BAR
  • Media Non aggressive media

    pagination here

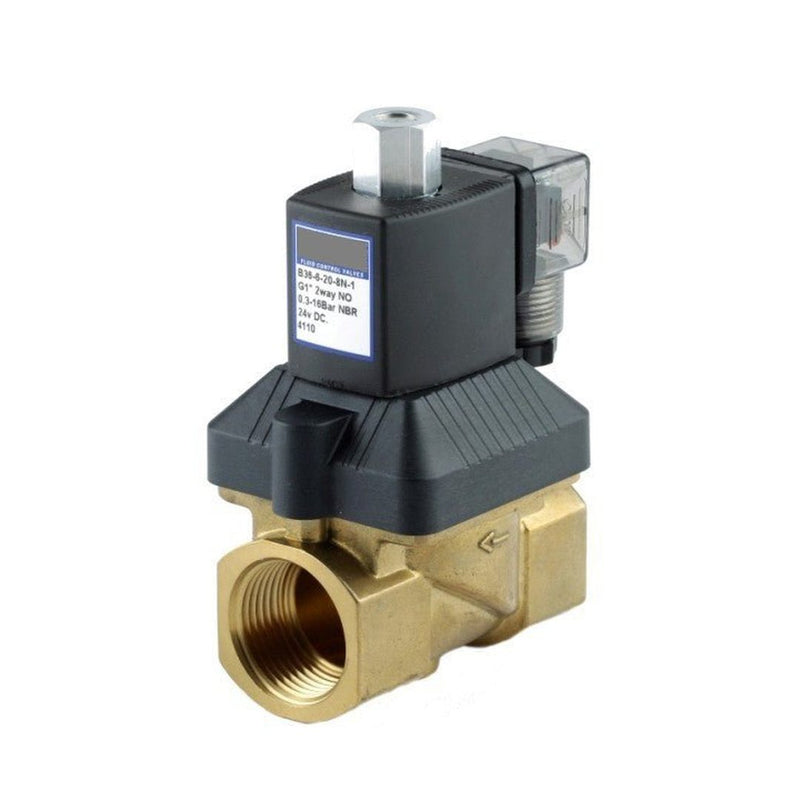

GO Solenoid Valve 1/4" to 2" B36 Brass General Purpose Differential Normally Open Range

SKU: B36-2-14

GO Solenoid Valve 1/4" to 2" B36 Brass General Purpose Differential Normally Open Range

Regular price $105.00 AUD
Sale price $105.00 AUD Regular price
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Size
Orifice

Other payment options

The Basics

      Brass 2 way 2 position normally open differential solenoid valve.G1/4", 14mm orifice, 304 SS operator, copper shading ring, NBR seat.0.3-10 BAR pressure range, media temp -10°C to 80°C.Coil Class H insulation, 15 Watts, IP65 protection.
