GO B56 Brass Petrochemical Zero Differential Normally Open Solenoid Valves
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.

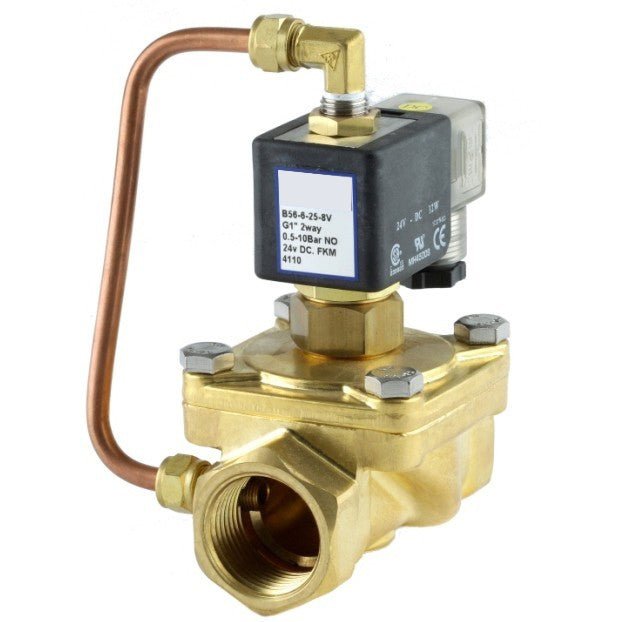

A normally open valve with forged brass body and seat, 304 stainless steel operator. Comes standard with Viton seals (contact us for silicone, Neoprene or Nitrile). Liquids to 40 cst viscosity. Standard with coil and weatherproof IP65 LED illuminated plug. Typical applications include; hot water, petrochemical and general industry.
Specifications
Brass 2 way 2 position normally open differential solenoid valve.G3/4", 20mm orifice, 304 SS operator, copper shading ring, FKM seat.0.5-10 BAR pressure range, media temp -10°C to 100°C.Coil Class H insulation, 17.5 Watts, IP65 protection.

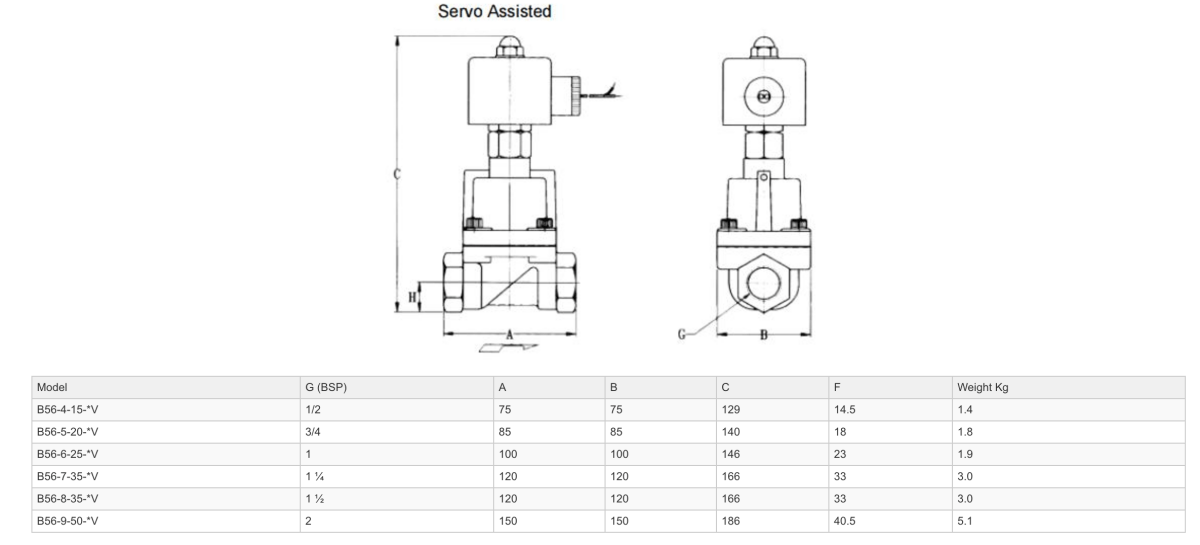

| Model | Port Size (BSP) | Orifice ømm | CV | Media Pressure | Media Temperature | Coil Specifications |
|---|---|---|---|---|---|---|
| B56-4-15-*V | 1/2 | 15 | 4.5 | 0.5 to 10 BAR | -10°C to 100°C | SC-C1 15 Volt Amps 12 Watts Class H Insulation 100% ED |
| B56-5-20-*V | 3/4 | 20 | 9.3 | 0.5 to 10 BAR | -10°C to 100°C | |
| B56-6-25-*V | 1 | 25 | 13.2 | 0.5 to 10 BAR | -10°C to 100°C | |
| B56-7-35-*V | 1 ¼ | 35 | 26 | 0.5 to 10 BAR | -10°C to 100°C | |
| B56-8-35-*V | 1 ½ | 35 | 26 | 0.5 to 10 BAR | -10°C to 100°C | |
| B56-9-50-*V | 2 | 50 | 48 | 0.5 to 10 BAR | -10°C to 100°C |
