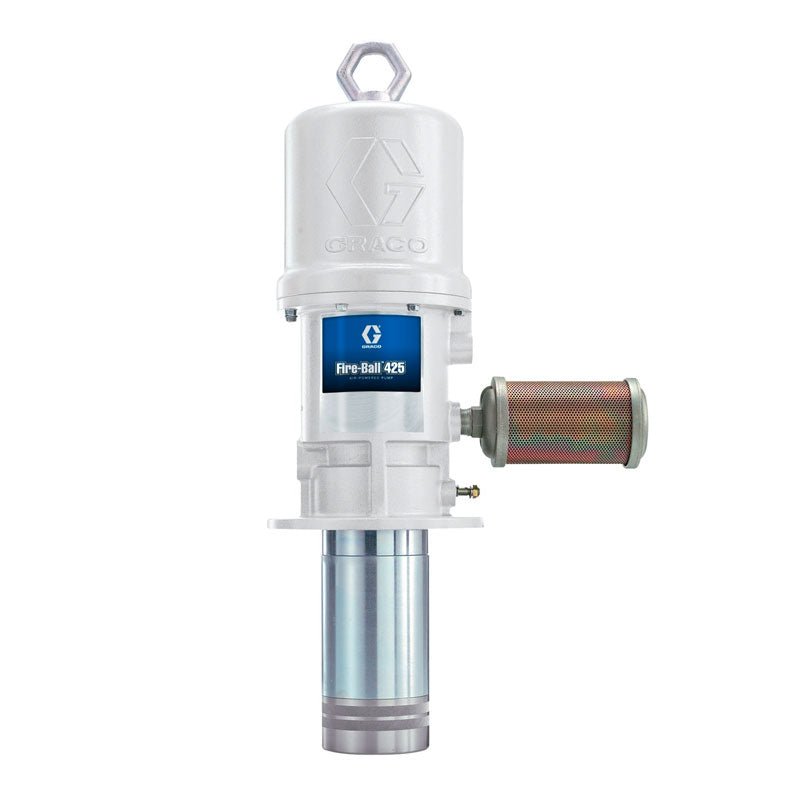

GRACO Fire-Ball 425 Series 10:1 Universal Size Oil Pump
SKU: 237526GRACO Fire-Ball 425 Series 10:1 Universal Size Oil Pump
Regular price
$4,983.00 AUD
Sale price
$4,983.00 AUD
Regular price
Unit price
per
Inclusive of GST.
Shipping calculated at checkout.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
Other payment options
At a Glance
The pump of choice for your most demanding high volume applications. The Graco Fire-Ball 425 Oil Pump Range, from GO Industrial, is perfect for fluid oil transfer in high volume and longer distance applications such as truck workshop, service fleet facilities, mining, civil construction and in-plant applications, where multiple dispenses happen at the same time
With a large 4.25 inch air motor to supply the power you need for long pipe runs and higher volume dispensing, the Fire-Ball 425 delivers field-proven durability for multiple fluid types and exceptional cost savings that are hard to beat!
- Thick cast aluminium air motor housing offers unmatched durability.
-
Fewer Repairs
- Fewer moving parts in the air motor assembly means less downtime and low repair cost.
-
Extended Seal Life
- In-line pump design aligns the air motor piston and fluid piston rods to maximise seal life.
-
Reduce Downtime
- Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
-
Superior Sealing
- Non-metallic poppet valves offer positive sealing performance, even with contaminated ""dirty"" air environments for long life without repair.
-
Reduced Icing
- Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
-
Corrosion-Resistant
- Corrosion-resistant design utilises liquid salt nitriding, nickel plating, stainless steel, aluminium and chrome on key components for longer life.
3:1 Fire-ball 425 Pump
| Maximum working pressure | 3.7 MPa, 37 bar |
| Fluid pressure ratio | 3:1 |
| Air operating range | 0.28 to 1.2 MPa, 2.8 to 12 bar |
| Air consumption | 3 ft³/min per gallon pumped, (0.022 m3/min per liter pumped) up to 8 ft³/min (0.058 m³/min) with pump operating within recommended range |
| Pump cycles per gallon (liter) | 1.6 Liters |
| Maximum recommended pump speed | 66 cycles/min; 45 lpm |
| Recommended speed for optimum pump life | 15 to 25 cycles per min |
| Piston seals | polyurethane |
| Rod seals | nitrile |
| Wetted parts | aluminum, steel, nitrile |
| Approximate weight | 21 kg |
| * Sound pressure | 82 dB(A) |
6:1 Fire-Ball 425 Pump
| Maximum working pressure | 76 bar, 7.6 MPa |
| Fluid pressure ratio | 6:1 |
| Air operating range | 3 to 12 bar, 0.3 to 1.2 MPa |
| Air consumption | 7 ft³/min per gallon pumped (0.051 m³/min per liter pumped) at 100 psi (7 bar, 0.7 MPa) |
| Pump cycles per gallon (liter) | 3.8 Liters |
| Maximum recommended pump speed | 23 liter/min |
| Recommended speed for optimum pump life | 15 to 25 cycles per min |
| Piston seals | polyurethane with nitrile spreader |
| Rod seals | polyurethane with nitrile spreader |
| Wetted parts | aluminum, steel, polyurethane, nitrile |
| Approximate weight | 21 kg) |
| * Sound pressure level | 79.5 dB(A) |
10:1 Fire-Ball 425 Pump
| Fluid pressure ratio | 10:1 |
| Air pressure operating range | 3–12.4 bar, 0.3–1.2 MPa |
| Maximum working pressure | 124 bar, 12.4 MPa |
| Maximum delivery | 19.7 lpm |
| Cycles | 6 per l |
| Max. recommended pump speed | 60 cycles per minute |
| Air motor effective diameter | 108 mm |
| Stroke | 102 mm |
| Air consumption | approx. 6 m/hr³/l 0.7 MPa, 7 bar |
| Wetted parts | steel, brass, aluminum, leather, Buna–N |
| Weight | 17 kg |
| Sound Pressure Level (Input Air Pressures at 15 cycles per minute) (Measured at 1 m from unit) | 0.28 MPa, 2.8 bar; 73.6 dB(A): 0.48 MPa, 4.8 bar; 78.34 dB(A): 0.7 MPa, 7 bar; 80.85 dB(A) |
| Sound Power Level (Input Air Pressures at 15 cycles per minute) (Tested in accordance with ISO 9614–2) | 0.28 MPa, 2.8 bar; 87.4 dB(A): 0.48 MPa, 4.8 bar; 92.09 dB(A): 0.7 MPa, 7 bar; 94.62 dB(A) |
Durable
