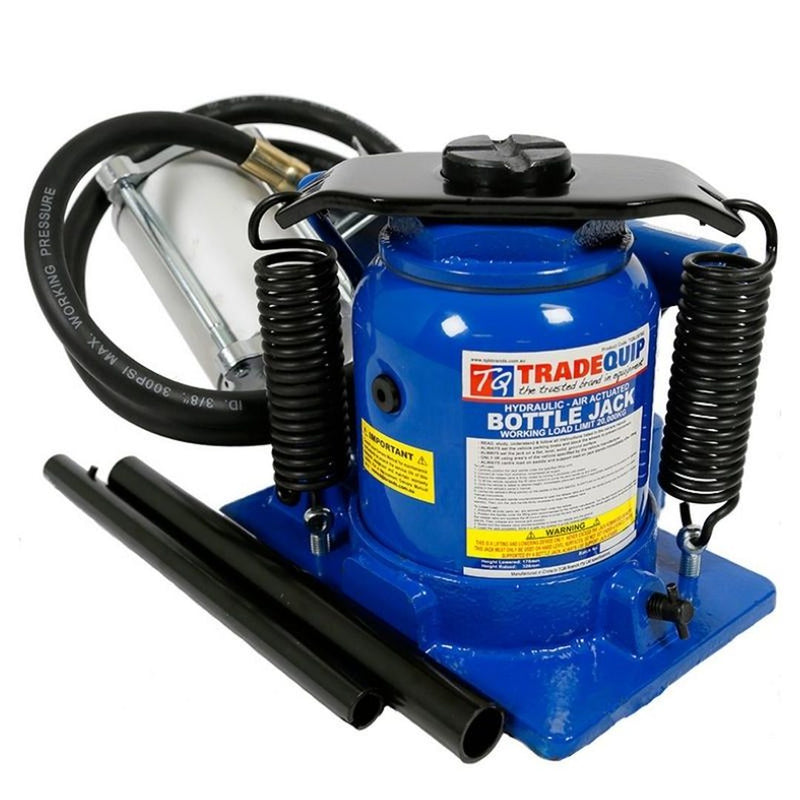

The TradeQuip low profile air/hydraulic bottle jack is designed to operate pneumatically, providing lifting power for farm vehicles, heavy duty machinery, industrial construction equipment and more, while its low profile design gets you out of tight situations with ease. Rated to 20,000kg, it uses a 110-125psi rated air pressure supply to deliver fast, strong lifting across a 178 to 328mm range, with a knurled, heat-treated pad and screw height adjustment to fine-tune the load. A safety overload valve gently lowers the jack if it is overloaded, and a rugged high grade steel frame with an oil, grease and dirt resistant lead-free paint finish stands up to daily use.
Features
Machined Cylinders: Machined and polished cylinders with die-cut threads.
Hard-Cast Steel: Fabricated from hard-cast steel with heat-treated critical stress areas.
Release Valve: A unique cross-type forged release valve assures positive load control.
Bypass Protection: Built-in bypass protection prevents damage from over-pumping.
Air Turbo Motor: A compact yet powerful Air Turbo motor.
Quick Connector: A versatile quick connector provides quick and easy air connection.
Two-Piece Handle: Two-piece pump handle.
Carry Handle: Convenient welded carry handle.
Included accessories
Specifications
| Safe Working Capacity | 20,000kg |
|---|---|
| Minimum Height | 178mm |
| Maximum Height | 328mm |
| Hydraulic Stroke | 87mm |
| Screw Extension Height | 63mm |
| Operating Air Pressure | 110-125psi |
| Air Fitting | 1/4" |
| Carton | 390 x 192 x 195mm |
| Gross Weight | 13kg |
