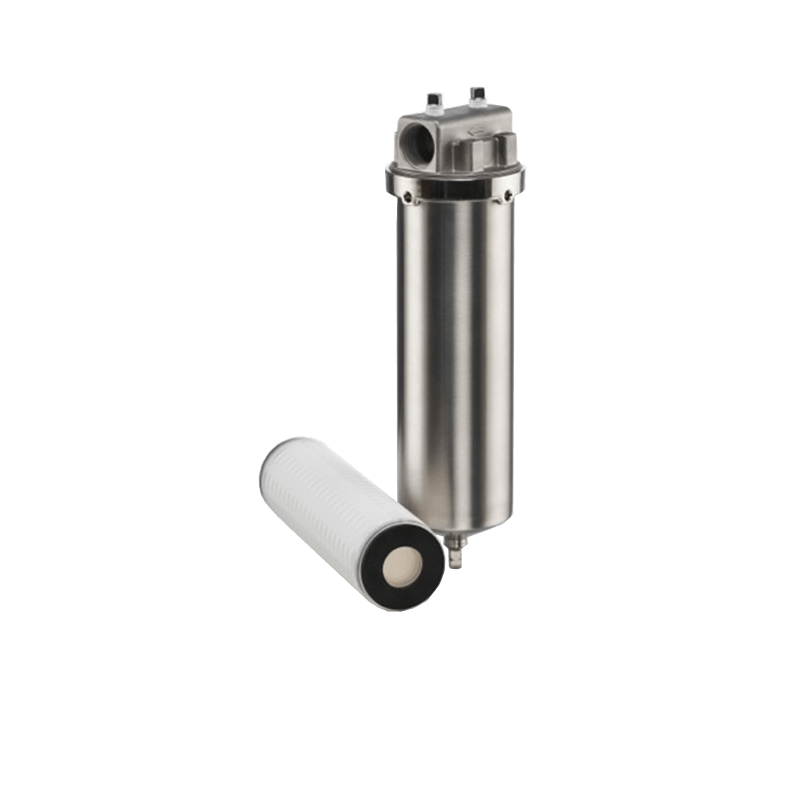

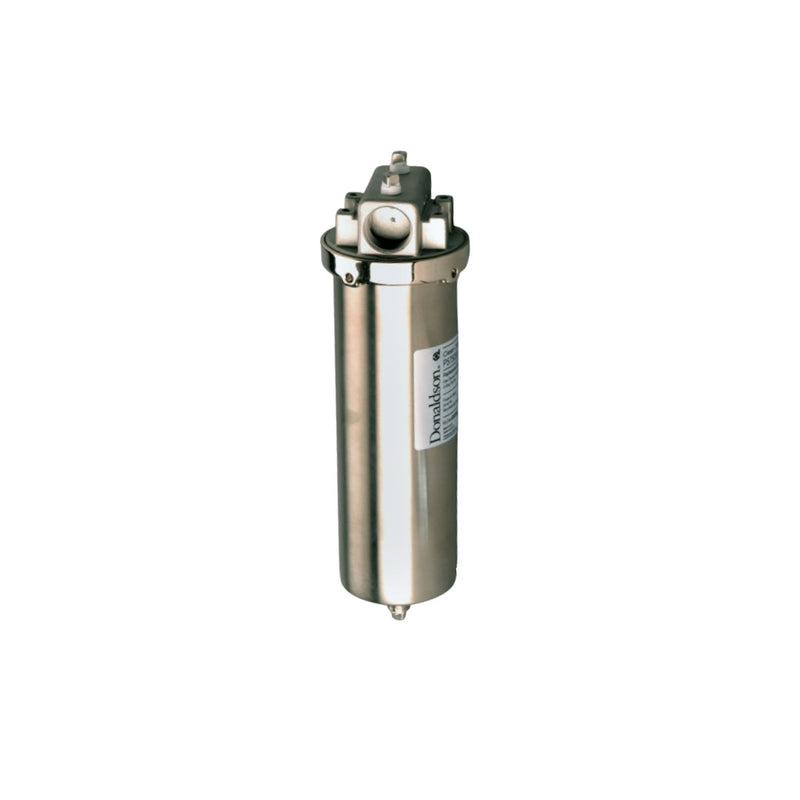

DONALDSON Housing, Diesel Exhaust Fluid (AdBlue) 1" BSPT
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Bundle the essentials.
Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.
Today's Selective Catalytic Reduction (SCR) emissions control systems require clean Diesel Exhaust Fluid (AdBlue) for precise dosing and complete atomisation. Contamination from transfer and storage, or corrosion from incompatible materials, can prevent the SCR system from getting the clean AdBlue it needs for proper operation.
The Donaldson AdBlue filter catches contaminants before they reach your vehicle or equipment and the onboard AdBlue filter. Clean AdBlue ensures proper function of the SCR, extends the life of the onboard filter, and helps turn NOx from exhaust into harmless nitrogen and water vapour.
AdBlue is highly corrosive, so all pipe fittings must be compatible with AdBlue. Most plastics and stainless steel are acceptable, while carbon steel, zinc, aluminium, brass and copper are not recommended.
Features
- Fine Filtration: Captures particulate down to 1 micron at Beta 5000, a 99.98% capture rate, so the dosing module receives clean fluid.
- Stainless Construction: A 316 stainless steel body and EPR O-ring stand up to AdBlue, which corrodes carbon steel, zinc, aluminium, brass and copper.
- Knife Edge Seal: A precise knife-edge internal seal holds pressure to 20.7 bar without weeping at the bowl joint.
- Integrated Gauge Ports: Two 1/4 inch NPT ports sit upstream and downstream, so differential pressure and fluid samples are read without adding fittings.
- Serviceable Element: The element changes out with the supplied filter wrench and is replaced on its own, so the housing stays plumbed in the line.
- Dispenser Rated: Sized for AdBlue dispensers up to 38 litres per minute, with a 1/4 inch NPT drain plug for bowl draining at service.
Included accessories
Specifications
| DEF FILTER HOUSING | P575058, 1 IN BSPT, includes mounting bracket and filter wrench |
|---|---|
| DEF FILTER ELEMENT | P575059, sold separately |
| DEF HOUSING O-RING | P575060, replacement part |
| MICRON RATING & EFFICIENCY | 1 micron at Beta 5000 (99.98%) |
| MAXIMUM FLOW RATE | 38 L/MIN | 10 GPM |
| MAXIMUM WORKING PRESSURE | 20.7 BAR | 300 PSI |
| MINIMUM OPERATING TEMPERATURE | -11 C | 12 F |
| MAXIMUM OPERATING TEMPERATURE | 50 C | 122 F |
| INLET AND OUTLET | 2 x 1 IN BSPT |
| HOUSING CONSTRUCTION | 316 Stainless Steel, EPR O-ring |
| FILTER MATERIAL | Polypropylene, EPDM gaskets |
| GAUGE PORT | 2 x 1/4 IN NPT, upstream and downstream |
| DRAIN PLUG | 1/4 IN NPT |
| OVERALL HEIGHT | 348 MM | 13.69 IN |
| OVERALL WIDTH | 105 MM | 4.13 IN |
| FILTER CHANGEOUT CLEARANCE | 25 MM | 1 IN |
