DONALDSON 7um Particulate Filter Element Light Oil - GO Industrial - DBB8665
  • DONALDSON 7um Particulate Filter Element Light Oil - GO Industrial - DBB8665
1 1

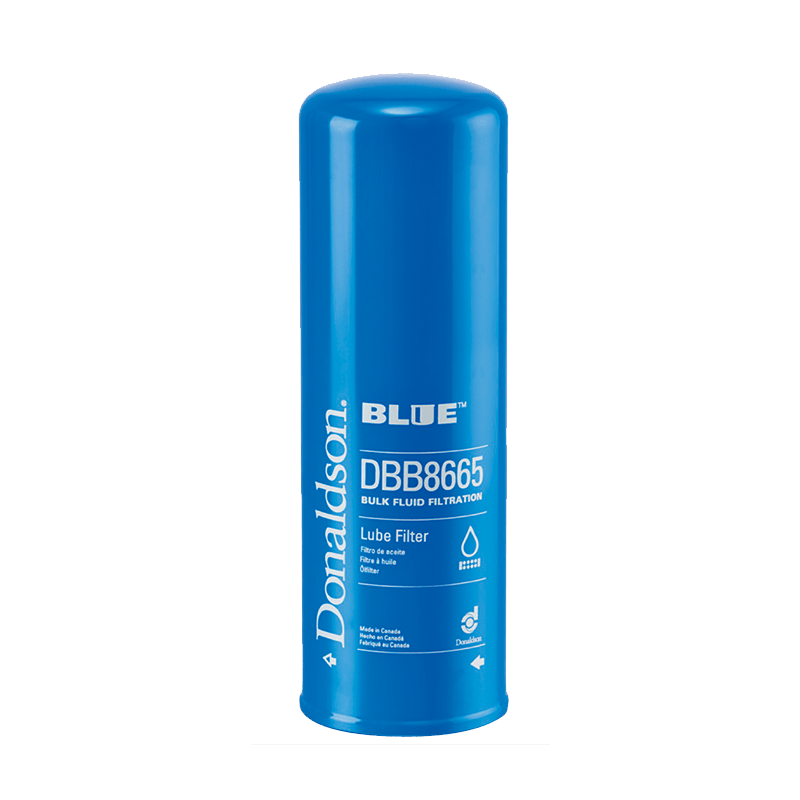

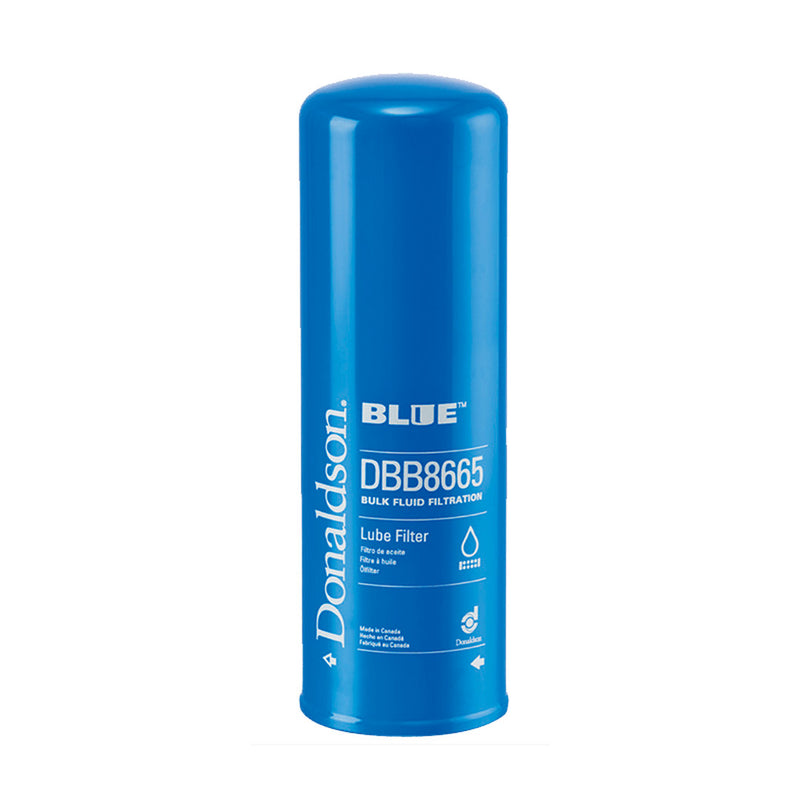

DONALDSON 7um Particulate Filter Element Light Oil

SKU: DBB8665

DONALDSON 7um Particulate Filter Element Light Oil

$241.15 AUD
$241.15 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

View full details
DONALDSON 7um Particulate Filter Element Light Oil - GO Industrial - DBB8665

DONALDSON 7um Particulate Filter Element Light Oil

$241.15 AUD
$241.15 AUD
Save $0
Sold out

Details

Installation

  • Use with single or dual bulk filter heads, models P570329, P570330, P568583
  • Install on pressure side of pump with arrows pointing in direction of flow
  • Allow 11/2 in / 38 mm clearance for servicing filter
  • Lubricate filter and head O-rings with clean oil or diesel
  • Install filter on head by spinning clockwise
  • Use a Bahco strap-wrench to tighten
  • Also available in kit X0111745, including P570330 head, P573681 pressure gauge and P573682 port adapter.

Replacement and Maintenance

  • Service filter when flow slows or predetermined differential pressure is reached
  • (varies based on pump spec, system dP and clean filter dP)
  • Isolate filter and relieve pressure prior to servicing
  • Loosen filter by rotating counter clockwise using strap-wrench
  • Install clean filter by rotating clockwise, using strap-wrench to tighten
  • Dispose of used filter appropriately

Features

  • Requires only 11/2 in / 38 mm clearance for servicing
  • Unsurpassed filter efficiency
  • Spin-on design for fast, easy maintenance

    • Donaldson Filter Element Light Oil 7um Particulate

    Overview

    Fluid Compatibility: Transmission and hydraulic oil

    Donaldson DBB8665 provides the targeted ISO cleanliness level of 16/14/13 for the duration of its service life and has been designed to suit most hydraulic and transmission oil applications.

    Donaldson spin-on elements enable fast, simple and clean servicing, without the requirement of specialised tooling, lifting devices or elevated work platforms. The filter media has greater protection from environmental contamination during service and installation than common cartridge style elements, further enhancing Donaldson’s high initial efficiency.

    Contaminant loaded media is disposed of with the replaceable can, eliminating the need for manual cleaning of fixed infrastructure or direct handling of concentrated contaminants.

    The DBB8777 spin-on elements can be configured for high flow rates with minimal pressure drop.

          Shipping & Returns

          Our network of warehouses Australia-wide enables us to
          deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

          All returns must be pre-approved to ensure replacement and / or refund.

          Shipping & Returns

          Our network of warehouses Australia-wide enables us to
          deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

          All returns must be pre-approved to ensure replacement and / or refund.

          Warranty

          Read our complete warranty terms & conditions here.

          Warranty

          Read our complete warranty terms & conditions here.

          Secure Payment

          All our online payment methods are secured.

          Secure Payment

          All our online payment methods are secured.

          • GO Data Sheet Donaldson DBB8665

          Specifications

          Outer Dimension

          117 mm

          Length

          362 mm

          Working Pressure

          350 psi / 2413 kPa / 24.1 bar

          Maximum Flow Range

          246 lpm

          Operating Temperature

          -40 to 88oC

          Media capacity reached at

          50 psi dP

          Dry Weight

          2.3 kg

          Liquid Capacity

          3.8 L

          Media

          Proprietary synthetic

          Seal Type

          Viton

          Internal Liner

          E-coated

          Potting Compounds

          Epoxy

            Features

          • Requires only 11/2 in / 38 mm clearance for servicing
          • Unsurpassed filter efficiency
          • Spin-on design for fast, easy maintenance
