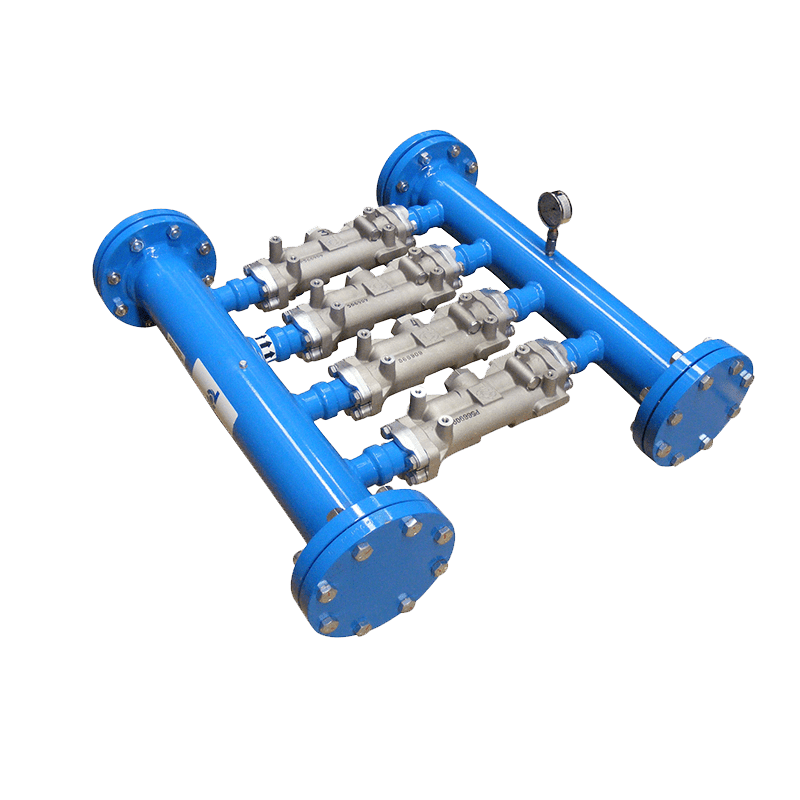

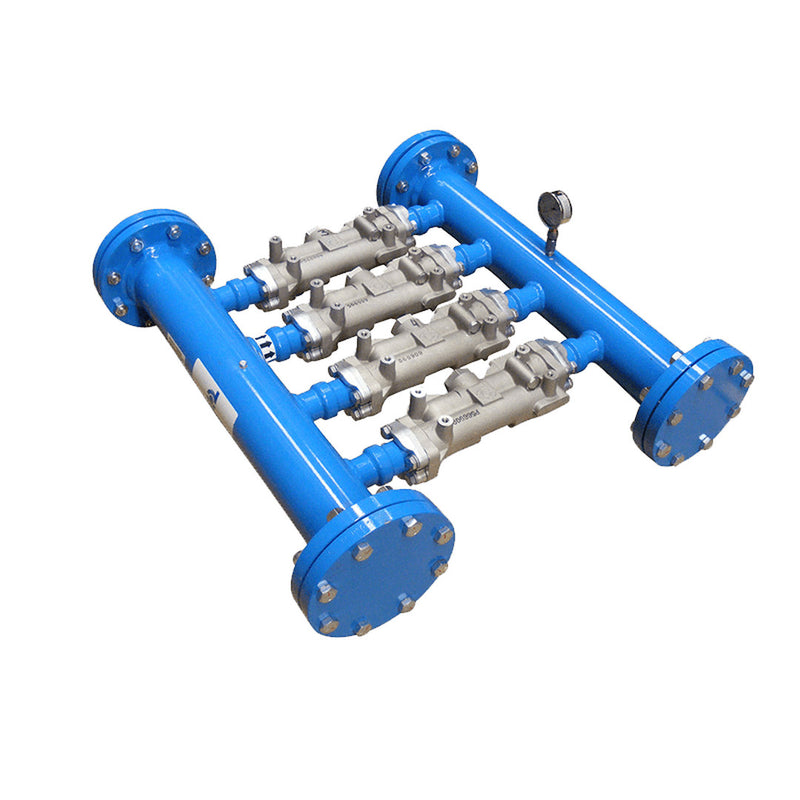

DONALDSON 8 Element Filter Head DN100 4" ANSI 150 1893LPM
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Overview
- Fluid Compatibility: All diesel fuels and lubricants
- Filter Quantity: 8 (sold separately)
Donaldson Clean Solutions Filter Manifolds increase flow rates beyond the capability or a single of dual filter head.
Multiple manifolds may be plumbed together in parallel flow to increase contaminant holding capacity or to clean fluids at high flow rates.
Individual manifolds are configured to provide parallel flow through multiple filters.
Features
- Eight Element Bank: Eight elements in parallel carry high bulk transfer flow without forcing a pressure drop.
- Filters Not Included: The manifold is supplied bare, so the filtration rating is set by the elements you fit.
- Flanged Connection: ANSI 150 flanges on inlet and outlet take the pressure and flow that threaded ports cannot.
- Parallel Banks: Elements run in parallel, so pressure drop stays low across the whole bank even at full flow.
- 4 Inch ANSI: 4 inch ANSI 150 flanges, 229 mm flange diameter, on an 838 by 621 mm frame.
Specifications
| PRODUCT FAMILY | Bulk Filtration |
|---|---|
| PRIMARY APPLICATION | Bulk fluids. Filters not included |
| MAXIMUM FLOW RATE | 1893 L/MIN |
| INLET SIZE | 4 ANSI 150 Flange |
| OUTLET SIZE | 4 ANSI 150 Flange |
| FLANGE DIAMETER | 229 MM | 9.02 IN |
| LENGTH | 838 MM | 33 IN |
| WIDTH | 621 MM | 24.45 IN |
| COUNTRY OF ORIGIN | United States |
Data Sheet
