ELCOMETER 138 Bresle Salt Meter
Features

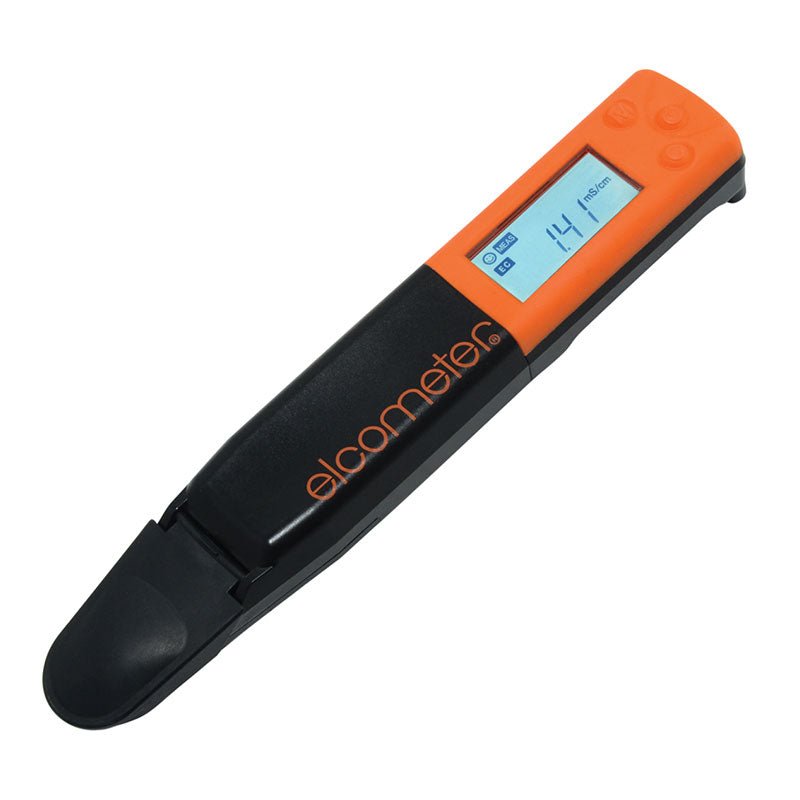

Elcometer 138 Bresle Salt Meter
Overview

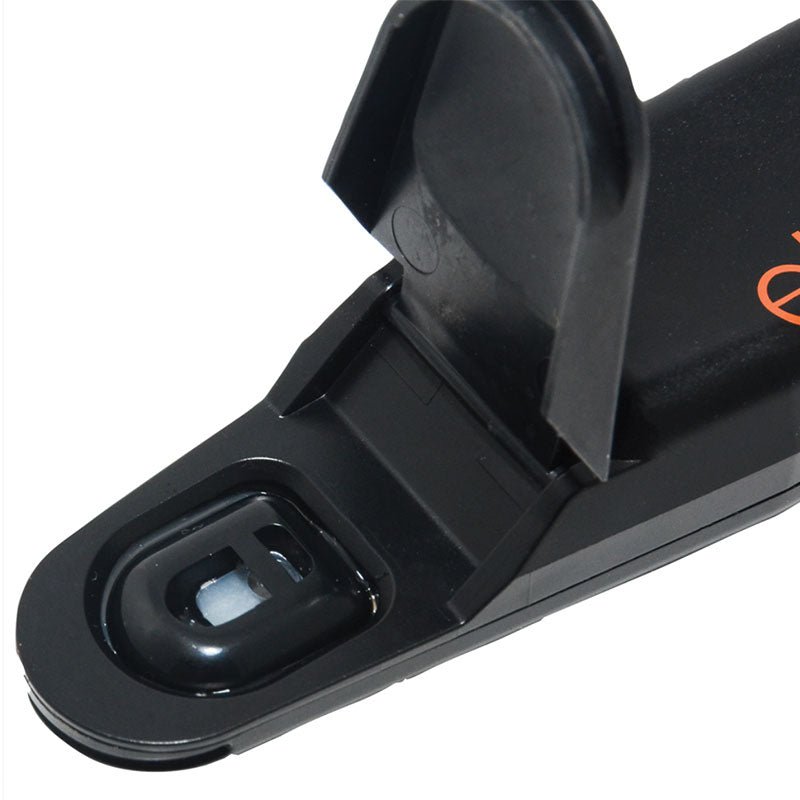

Incorporating a flat sensor, the Elcometer 138 Bresle Salt Meter measures the conductivity of a sample, then automatically converts this to show the density of salts, negating the need for the user to do a manual calculation when working in accordance with ISO 8502-6 or ISO 8502-9.
Specifications
Part Number | Description | |
E138-BSM | Elcometer 138 Bresle Salt Meter | |
Measurement Principle |
2 Electrode Bipolar AC |
|
Measurement Mode |
ISO, IMO, Temperature |
|
Minimum Sample Volume |
0.12ml |
|
ISO Mode |
IMO Mode |
|
Measurement Range |
0 - 2399µg/cm² |
0 - 2199µg/cm² |
Conversion Factor |
µS/cm to µg/cm² : 0.12 µS/cm to mg/m² : 1.2 |
µS/cm to µg/cm² : 0.11 µS/cm to mg/m² : 1.1 |
Resolution |
0 - 239.9µg/cm² : 0.1µg/cm² 240 - 2399µg/cm² : 1µg/cm² |
0 - 219.9µg/cm² : 0.1µg/cm² 220 - 2199µg/cm² : 1µg/cm² |
Accuracy |
±2% full scale (for each range) |
|
Operating Temperature |
5°C to 40°C (41°F to 104°F) |
|
Operating Humidity |
85% or less relative humidity (no condensation) |
|
Battery Type |
2 x CR2032 lithium batteries |
|
Battery Life |
approx. 200 hours of continuous use without backlight |
|
Weight |
50g (1.76oz) - including sensor and batteries |
|
Dimensions |
164 x 29 x 20mm (6.5 x 1.2 x 0.8”) |
|
Packing List |
Elcometer 138 Bresle Salt Meter, 14ml (0.5fl oz) bottle of conditioning solution, 2 x CR2032 lithium batteries and operating instructions |
- Highly precise measurements can be obtained
- Out of range and low battery alarms
- Visual indication when the ambient temperature is outside the operating range
