ELCOMETER 270 Pinhole Detector
Features
Elcometer 270 Pinhole Detector
Overview

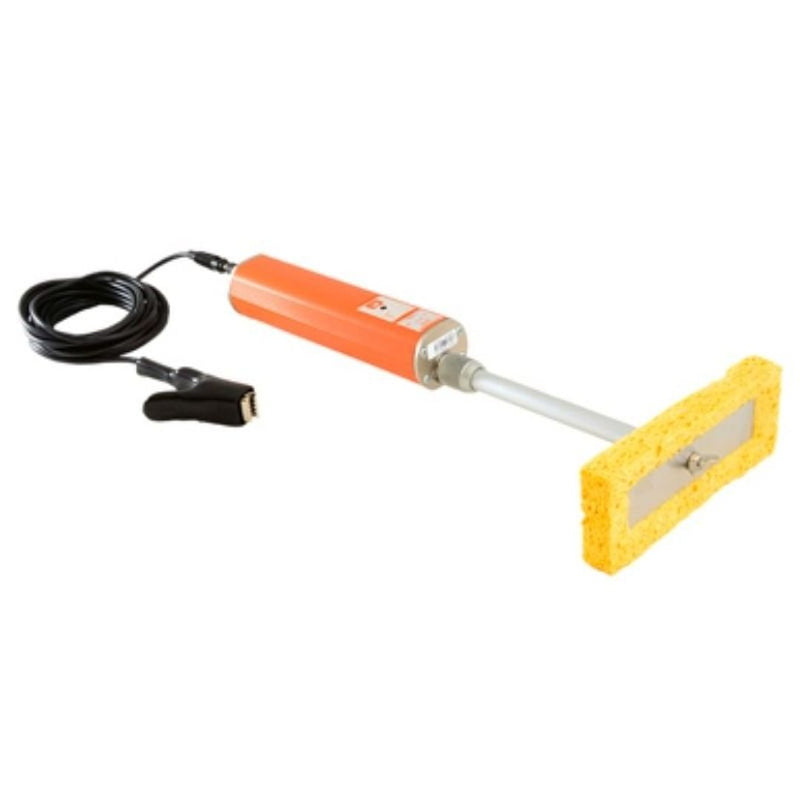

The Elcometer 270 Pinhole Detector is a high quality, low voltage wet sponge detector and is supplied with similar accessories to a high voltage spark tester.
Specifications
| Elcometer 270/3 Pinhole Detector | Elcometer 270/4 Pinhole Detector | Certificate | |
| Part Number | D270----3 | D270----4 | |
| Part Number with Certificate | D270----3C | D270----4C | x |
| Voltage | 9V and 90V | 9V, 67.5V and 90V | |
| Coating Range (Max) | 500µm (20mils) | 500µm (20mils) | |
| Sensitivity | 9V: 90k? ±5 90V: 400k? ±5% |
9V: 90k? ±5% 67.5V: 125k? ±5% 90V: 400k? ±5% |
|
| Battery Life (continuous use) |
9V: up to 200 hours 90V: up to 80 hours |
9V: up to 200 hours 67.5V: up to 100 hours 90V: up to 80 hours |
|
| Battery Type | 3 x AA batteries (rechargeable batteries can also be used, but battery life will be reduced by up to 75%) | 3 x AA batteries (rechargeable batteries can also be used, but battery life will be reduced by up to 75%) | |
| Accuracy of Setting | ±5% | ±5% | |
| Dimensions | Without wand 210 x 42 x 37mm (8.3 x 1.7 x 1.5”) Standard wand 175mm (6.9”) long (including sponge) | Without wand 210 x 42 x 37mm (8.3 x 1.7 x 1.5”) Standard wand 175mm (6.9”) long (including sponge) | |
| Weight | 610g (21oz) including wand, cable and batteries | 610g (21oz) including wand, cable and batteries | |
| Packing List | Pinhole Detector, standard wand and flat sponge, 4m (13’ 2”) return lead with crocodile clip, 3 x AA (LR1600) batteries and operating instructions | Pinhole Detector, standard wand and flat sponge, 4m (13’ 2”) return lead with crocodile clip, 3 x AA (LR1600) batteries and operating instructions |
- Supplied ready to use
- Automatic sensitivity calibration and voltage checks
- Low battery indicator
- Visual and audible alarms
- Integral and separate wand functionality
- A wide range of fully interchangeable wand accessories
- Easy release snag proof cables
- Large standard sponge
- An inspection kit for all your requirements is available.
