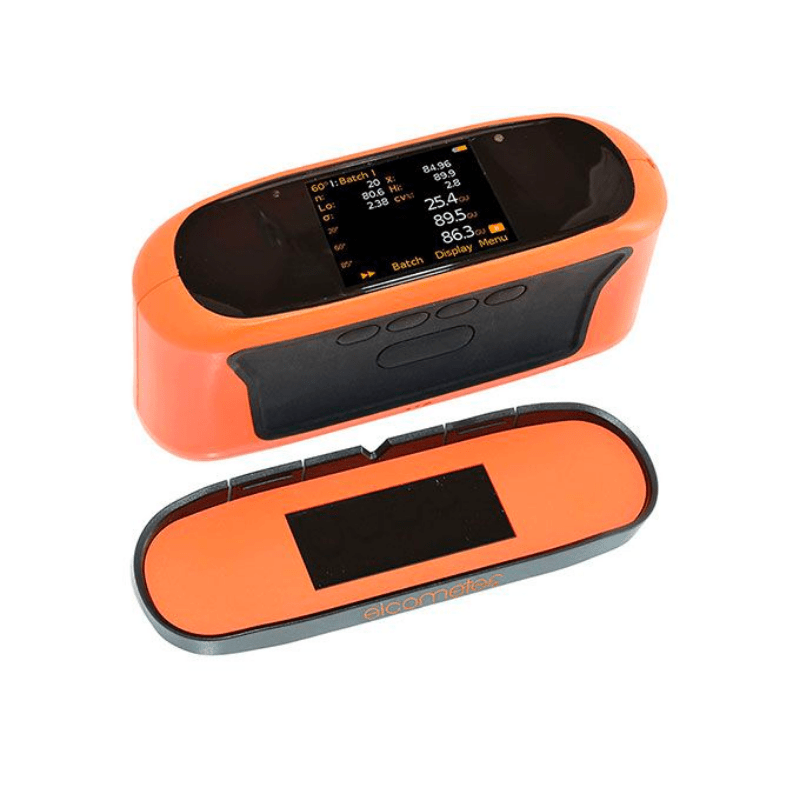

Elcometer 480 Single, Dual & Triple Angle Glossmeter
Elcometer 480 Single, Dual & Triple Angle Glossmeters Display
Elcometer 480 Single, Dual & Triple Angle Glossmeters Side
  • Elcometer 480 Single, Dual & Triple Angle Glossmeter
  • Elcometer 480 Single, Dual & Triple Angle Glossmeters Display
  • Elcometer 480 Single, Dual & Triple Angle Glossmeters Side
1 4

The Elcometer 480 gloss meter rapid LED technology accurately measures up to 3 gloss angles at the same time at a rate of 10 readings per second. Gloss measurements can be instantly transferred from the glossmeter to PC, iPhone, Android™ or other mobile devices via USB or Bluetooth®.

Features:

   Accurate

  • Date and time stamped readings
  • Differential mode with pass/fail
  • Repeatable & reproducible readings
  • 40 user definable limit standards

   Efficient

  • Small, robust & ergonomic
  • Multiple angles; 20°, 60°, 85°
  • Display readings, statistics, graphs & batch review
  • Standard, auto repeat and scan modes
  • Automatic gauge & tile diagnostics
  • Auto calibration tile recognition via RFID (Radio Frequency Identification; European Patent Number: 2906904)

   Powerfull

  • USB & Bluetooth® data output
  • PC, iPhone or Android™ compatible
  • 40,000 reading memory in up to 2,500 batches
  • 3 - 10 readings per second
  • Elcometer 480 Data Sheet
  • Elcometer 480 User Manual
    FeaturesModel BModel T
    Measurement Units60° 60°, 20/60°
    or 20/60/85°*
    Fast, accurate reading rateGUGU, HU, & %
    Repeatable & reproducible measurementsxx
    Easy to use menu structure; in 30+
    languages    		xx
    Tough, impact, waterproof & dust
    resistant    		xx
    Scratch & solvent resistant display;
    2.4" (6cm) TFT    		xx
    Rotating display: auto, 0°, 180°xx
    Ambient light sensor; with adjustable
    auto brightness    		xx
    Data Output
          USB live readingsxx
          USB batch downloadx
          Bluetooth®: to PC, iOS or Android™
    mobile devices    		x
    USB & battery poweredxx
    Calibration certificatexx
    Manual gauge calibrationx
    Auto gauge calibration; via RFID tagging
    ofintegrated calibration tile    		xx
    On Screen Statistics
          Number of readings, Mean (average),
    standard deviation    		xx
          Highest reading, Lowest reading, Rangex
          Coefficient of variationx
          Nominal value, High Limit value, Low Limit
    value    		x
          Number above high limit, Number below
    low limit    		x
    Measurement Modes
          Standard Modexx
          Auto Repeat Mode; programmable
    10-180 readings per minute    		x
          Scan Mode; 10 readings per secondx
          Differential Mode with Pass/ Fail mode;x
    Limit Standards; up to 40 programmable
    standards
          Gauge & Batch specific standard limitsx
    Gauge memory 40,000 readings in up to
    2,500 batches
    Alpha-numeric batch namesx
    Fixed Batch Size Modex
    Date & time stampx
    Gauge auto diagnosticsxx
    Display modes; user selectable
          Readings; gloss, % reflectance, hazexx
          Selected statisticsxx
          Trend graph; last 20 readingsx
          Scan bar displayx
          Readings & differential (with pass/fail)x
    Delete last reading
    2 year extended warrantyxx

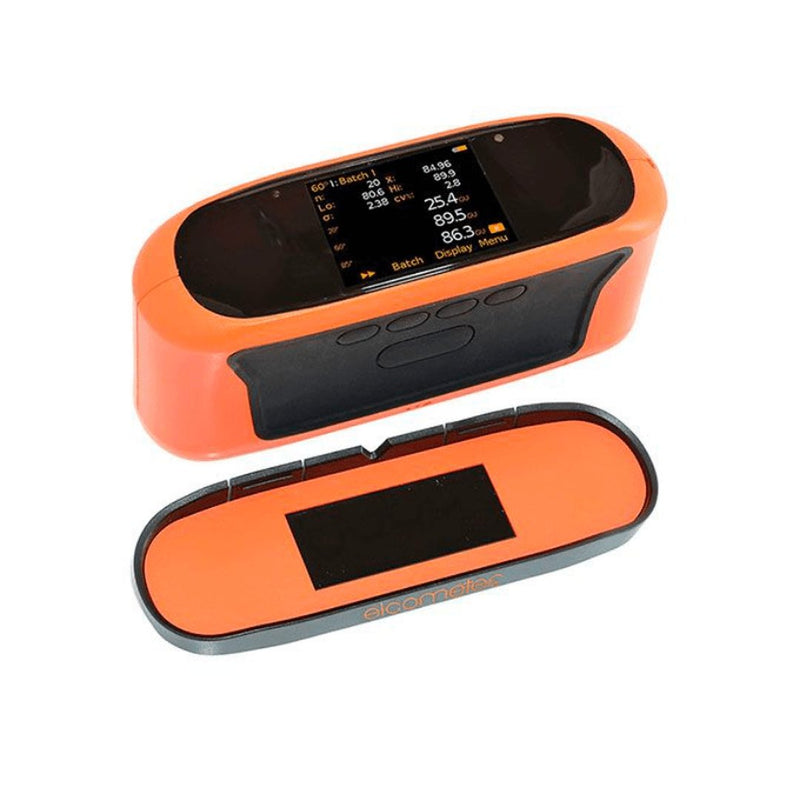

Elcometer 480 Single, Dual & Triple Angle Glossmeters Range

SKU: J480B-6

Elcometer 480 Single, Dual & Triple Angle Glossmeters Range

$3,159.00 AUD
$3,159.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Model

Other payment options

The Basics

Using state-of-the-art design and manufacturing techniques, the Elcometer 480 Glossmeters quickly and accurately measure and record gloss measurements on a wide range of materials, including paint, plastic, ceramic or metal.

    The Elcometer 480 gloss meter rapid LED technology accurately measures up to 3 gloss angles at the same time at a rate of 10 readings per second. Gloss measurements can be instantly transferred from the glossmeter to PC, iPhone, Android™ or other mobile devices via USB or Bluetooth®.

    Features:

       Accurate

    • Date and time stamped readings
    • Differential mode with pass/fail
    • Repeatable & reproducible readings
    • 40 user definable limit standards

       Efficient

    • Small, robust & ergonomic
    • Multiple angles; 20°, 60°, 85°
    • Display readings, statistics, graphs & batch review
    • Standard, auto repeat and scan modes
    • Automatic gauge & tile diagnostics
    • Auto calibration tile recognition via RFID (Radio Frequency Identification; European Patent Number: 2906904)

       Powerfull

    • USB & Bluetooth® data output
    • PC, iPhone or Android™ compatible
    • 40,000 reading memory in up to 2,500 batches
    • 3 - 10 readings per second
    • Elcometer 480 Data Sheet
    • Elcometer 480 User Manual
      FeaturesModel BModel T
      Measurement Units60° 60°, 20/60°
      or 20/60/85°*
      Fast, accurate reading rateGUGU, HU, & %
      Repeatable & reproducible measurementsxx
      Easy to use menu structure; in 30+
      languages      		xx
      Tough, impact, waterproof & dust
      resistant      		xx
      Scratch & solvent resistant display;
      2.4" (6cm) TFT      		xx
      Rotating display: auto, 0°, 180°xx
      Ambient light sensor; with adjustable
      auto brightness      		xx
      Data Output
            USB live readingsxx
            USB batch downloadx
            Bluetooth®: to PC, iOS or Android™
      mobile devices      		x
      USB & battery poweredxx
      Calibration certificatexx
      Manual gauge calibrationx
      Auto gauge calibration; via RFID tagging
      ofintegrated calibration tile      		xx
      On Screen Statistics
            Number of readings, Mean (average),
      standard deviation      		xx
            Highest reading, Lowest reading, Rangex
            Coefficient of variationx
            Nominal value, High Limit value, Low Limit
      value      		x
            Number above high limit, Number below
      low limit      		x
      Measurement Modes
            Standard Modexx
            Auto Repeat Mode; programmable
      10-180 readings per minute      		x
            Scan Mode; 10 readings per secondx
            Differential Mode with Pass/ Fail mode;x
      Limit Standards; up to 40 programmable
      standards
            Gauge & Batch specific standard limitsx
      Gauge memory 40,000 readings in up to
      2,500 batches
      Alpha-numeric batch namesx
      Fixed Batch Size Modex
      Date & time stampx
      Gauge auto diagnosticsxx
      Display modes; user selectable
            Readings; gloss, % reflectance, hazexx
            Selected statisticsxx
            Trend graph; last 20 readingsx
            Scan bar displayx
            Readings & differential (with pass/fail)x
      Delete last reading
      2 year extended warrantyxx
