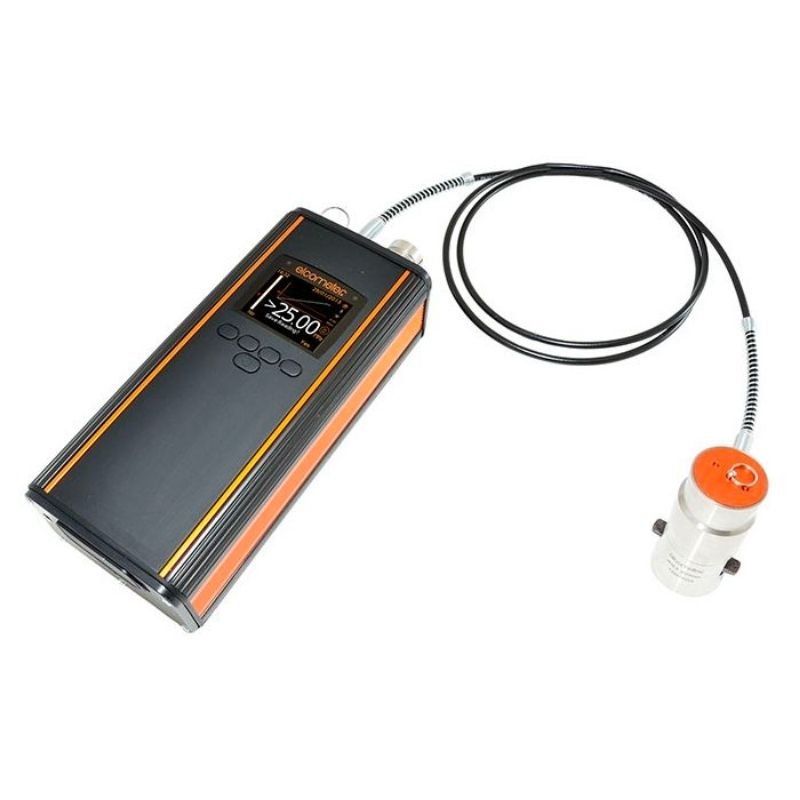

ELCOMETER 510 Automatic Pull-Off Adhesion Gauges
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
Using an automatic hydraulic pump, the Elcometer 510 Pull-Off Adhesion Tester ensures smooth and continuous pressure application for consistent and repeatable results. Whilst the rate of pull is controlled manually for most pull-off adhesion testers, the Elcometer 510 Pull-Off Adhesion Gauge allows the rate of pull to be selected, and the gauge applies the pre-selected rate automatically.
Specifications
| Features | Model S | Model T |
| Repeatable & reproducible measurements | x | x |
| Easy to use menu structure in multiple languages | x | x |
| Tough, impact, waterproof & dust resistant; equivalent to IP64 | x | x |
| Bright LCD colour screen; with ambient light sensor | x | x |
| Scratch & solvent resistant display; 2.4” (6cm) TFT | x | x |
| Calibration certificate | x | x |
| 2 year gauge warranty1 | x | x |
| Automatic rotating display; 0°, 180° | x | x |
| Data output via USB (Live readings - and batch) | x | x |
| Data output via Bluetooth® | x | |
| PC command; start & stop gauge from a PC with live readings (USB only) | x | |
| Switchable Units (MPa, psi, N, Nmm-2) | x | x |
| On Screen Statistics (?, x, ?, Hi, Lo, CV%, N>hi limit2) | x | x |
| Pull Rate Indicator | x | x |
| Trend Graph | x | x |
| Pull Rate Graph (Load v Time) | x | |
| Interchangeable Dolly Selection; 10, 14.2, 20 & 50mm | x | x |
| User Selectable Limit & Limit Hold Time | x | |
| Gauge Memory; maximum number of readings | 60 | 60,000 |
| Number of Batches (Alpha Numeric - Model T) | 1 | 2,500 |
| Attribute Modes to meet National & International Standards | x | |
| Display Modes | ||
| Readings, Selected Stats & Run Chart (last 20 readings) | x | x |
| Pull Rate Graphs | x | |
| Batch Review | x | |
| Power; Battery (B), AC Mains Power (M) | B | B,M |
| USB Cable & ElcoMaster® Software CD | x | x |
| Power Cable with Multi International Plug Adaptor (UK, EU, US, AUS) | x | |
| Plastic transit case | x | x |
| Date & time stamp | x | |
| In Field Adhesion Calibration Verification Mode: | x | x |
