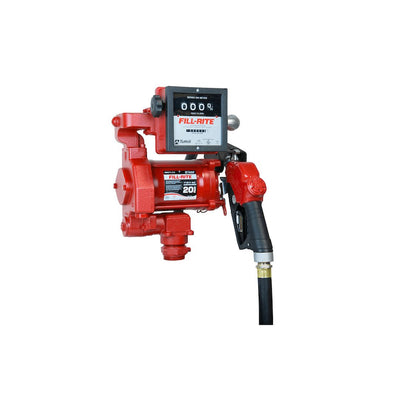

Designed for heavy-duty stationary refuelling across commercial depots, transport yards, and farm fuel bays, the Fill-Rite 700 Series 240V AC Fuel Transfer Pump Range, from GO Industrial delivers high-capacity dispensing power straight from standard mains or generator power.
Pumping up to a 76 L/min (20 GPM), this commercial-grade rotary vane series utilises an IECEx approved explosion-proof motor and rugged cast-iron housing designed for long-term, continuous operation.
The Fill-Rite 700 Series Pump Range is suitable for diesel, petrol, kerosene, and bio-diesel dispensing. Available at GO Industrial as a bare pump unit or in a range of complete dispensing kits—featuring a choice of mechanical or digital meter, heavy-duty anti-static hose, and a manual or automatic shut-off nozzle
Fill-Rite provides an all-in-one, refuelling kit backed by GO Industrial fast Australia-wide delivery.
Features
High-Flow Performance
-
Delivers flow rates up to 76 L/min (approx. 20 GPM), reducing vehicle and equipment downtime during refuelling.
Rugged Heavy-Duty Construction
-
Built with an ultra-durable cast-iron pump housing and an iron rotor featuring self-adjusting carbon rotary vanes to minimise wear over years of continuous use.
240V AC Powered
-
Powered by a heavy-duty, IECEx rated explosion-proof 1/3 HP motor operating on 230/240V AC supply.
Ideal for stationary above-ground storage tanks, skids, and fuel depots.
Multi Fluids Compatibility
-
Versatile fluid compatibility designed to transfer:
-
Diesel
-
Petrol / Gasoline (up to E15 blend)
-
Kerosene
-
Biodiesel (up to B20 blend)
-
Mineral spirits & Stoddard solvents.
-
Equipment Protection & Built-in Features
-
Thermal Overload Protection: Prevents motor burnout under high temperatures or continuous, heavy-load operation.
-
Internal Bypass Valve: Protects system pressure spikes when the nozzle is closed while the pump is running.
-
Integrated Mesh Strainer: Built-in cleanable inlet screen filters out debris before it reaches your equipment’s fuel system.
-
Lockable Lever: Built-in security tab that can be padlocked, to prevent unauthorised fuel extraction and theft.
Global Safety Approvals
-
UL/cUL listed, ATEX, IECEx and CE certified for safe operation in hazardous commercial environments.
Specifications
| Specification Parameter | Technical Detail |
|---|---|
| Warranty | Fill-Rite Limited Lifetime Warranty |
| Max Flow Rate | Up to 76 L/min (20 GPM) |
| Operating Voltage | 230V / 240V AC (50/60 Hz) |
| Motor Horsepower | 1/3 HP Heavy-Duty Explosion-Proof Motor |
| Amp Draw / Current | 1.7 Amps (Full Load @ 240V) |
| RPM / Speed | 1425 RPM @ 50Hz / 1725 RPM @ 60Hz |
| Duty Cycle | 30 minutes ON / 30 minutes OFF (Thermal Reset) |
| Inlet Port Size | DN25 (1") BSP F |
| Outlet Port Size | DN25 (1") BSP F |
| Mounting Options | DN50 (2") BSP M Threaded Bung Mount |
| Max Operating Pressure | 18 PSI (1.24 bar / 124 kPa) |
| Max Suction Lift | Up to 2.4 m (8 ft) dry lift |
| Pump Technology | Rotary Carbon Vane with Sintered Iron Rotor |
| Housing Material | Heavy-Duty Cast Iron with Fluorocarbon Shaft Seals |
| Compatible Fluids | Diesel, Petrol (Gasoline up to E15), Kerosene, Bio-Diesel (up to B20), Mineral Spirits |
| Incompatible Fluids | Water, AdBlue / DEF, Acids, Caustics, Thick Oils (>50 SSU) |
| Inlet Strainer | Cleanable 40-Mesh Stainless Steel Inlet Screen |
| Certifications & Safety | UL/cUL Listed Motor, ATEX, CE Certified (Hazardous Location Approved) |
| Operating Temperature | -26°C to +40°C (-15°F to +104°F) |
| Security Features | Integrated lockable nozzle boot and locking lever |
| Shipping Bare Pump | 39.4 cm × 34.3 cm × 27.9 cm — 14.5 kg |
| Shipping Pump Kit | 50.8 cm × 40.6 cm × 35.6 cm — 22.2 kg |
