DONALDSON Filter Flanged Adaptor Adapts P568583 Dual Head to DN40 BSPP
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts

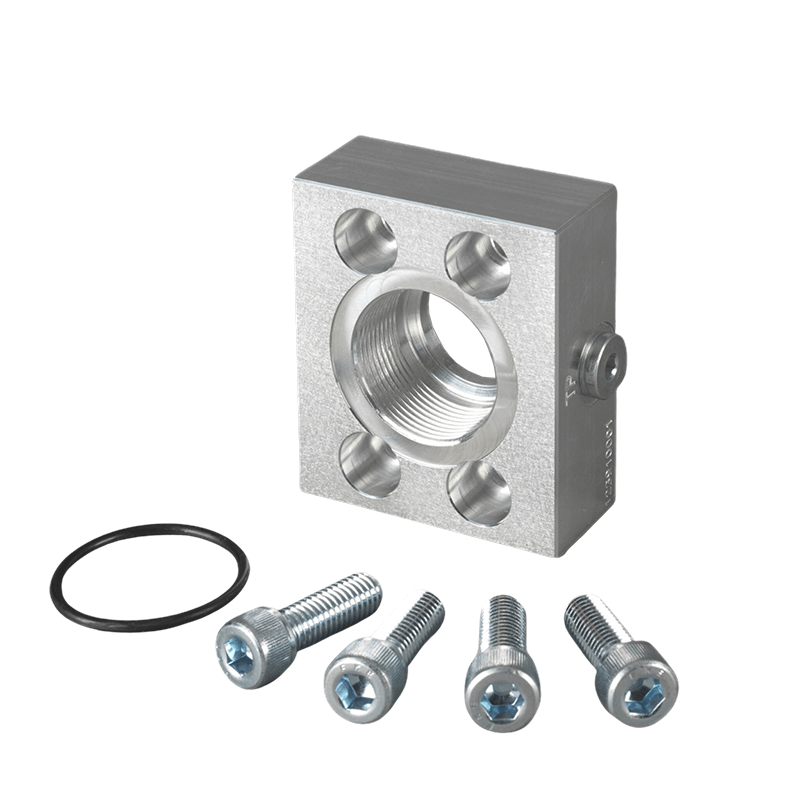

Donaldson Adaptor Kit, from GO Industrial, containing 1 x Flanged Adaptor, 4 x Bolts and 1 x O-Ring. Designed to adaptor Donaldson P568583 Dual Head Filter Head from DN40 (1.5") SAE 4 Bolt Code 61 to DN40 (1.5") Female BSP.
NOTE: 2 x units are needed per P568582 Filter Head to adapt each end of the filter head to DN40 (1.5") Female BSP
Features
- Thread Conversion: Converts a 1 1/2 inch SAE 4-bolt Code 61 flange to a 1 1/2 inch BSP thread.
- Suits P568583: Made for the P568583 dual filter head, whose Code 61 ports it adapts.
- Order Two Per Head: One adaptor converts one end. A filter head needs two to bring both ports to BSP.
- Complete Kit: Supplied as one flanged adaptor, four bolts and an O-ring, so nothing else is needed to fit it.
- Australian Made: Manufactured in Australia rather than imported against an order.
Specifications
| SUITS | P568583 dual filter head, two required per head |
|---|---|
| INLET SIZE | 1 1/2 SAE 4 Bolt Code 61 |
| OUTLET SIZE | 1 1/2 BSP/G |
| COUNTRY OF ORIGIN | Australia |
| SUPPLIED AS | 1 flanged adaptor, 4 bolts, 1 O-ring |
