Flomec OM Series Flow Meter Medium Capacity - GO Industrial

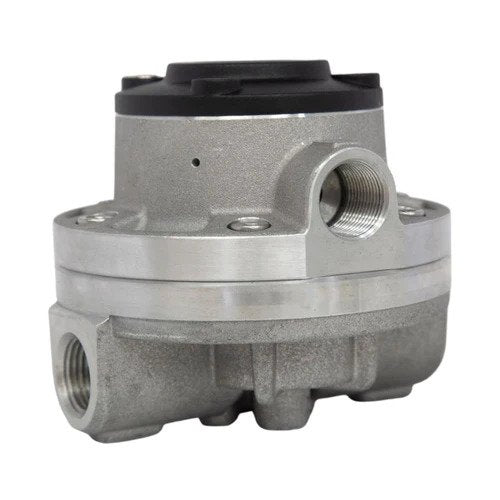

FLOMEC OM Series Flow Meters Medium Capacity

From $963.00 AUD

Save $0

Sold out

Product variants

Details

The OM Series Flow Meter is versatile enough to have multiple output options including;

Pulse out only
RT40 large LCD display in either a low cost glass reinforced nylon housing or rugged aluminium housing
RT14 flow rate totaliser which can interface with external control and monitoring equipment (PLC, SCADA, DCS) via scaled pulse, 4-20mA (Loop Powered) Output or flow alarms
M3 4-digit mechanical totaliser.

Features

High accuracy and repeatability, direct volumetric reading

No requirement for flow conditioning (straight pipe runs)

Only two moving parts means less maintenance and better reliability

Factory calibrated

Flomec OM Series Flow Meters Medium Capacity

Name: FLOMEC OM Series Flow Meters Medium Capacity
Brand: Flomec
SKU: OM015A001-211
Price: 963.0 AUD
Availability: InStock

Overview

The FLOMEC® Medium Capacity OM Series Oval Gear meters are well suited to measurement of fuels and lubricants. Exceptional accuracy and reliability can be obtained on clean liquids of almost any viscosity.

Available in a range of sizes from 1/2" - 2" (15mm-50mm) and flow rates of 1 L/min – 450 L/min combined with low pressure drop, weights and measures (A/NZ only) and various hazardous area certifications make the medium capacity OM-Series meters well suited to almost any liquid transfer or dispensing application whether pumped or gravity-fed. Simple yet proven positive displacement technology means no flow conditioning required (straight pipe runs) making the OM Series flow meters suitable for compact installations.

Our medium capacity flow meters for fuels and oils are constructed with aluminium body material, stainless steel rotors (PPS in the 3/8 in.) and Viton O-rings.

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Read our complete warranty terms & conditions here.

All our online payment methods are secured.

Flomec OM Series Instruction Manual - 1 - 2 Mechanical - GO Industrial

Flomec OM Series Instruction Manual - 12 Mechanical - GO Industrial

Flomec OM Series Instruction Manual - Electronic - GO Industrial

Flomec OM Series Medium Capacity Datasheet - Electronic - GO Industrial

Flomec OM Series Medium Capacity Datasheet - Mechanical - GO Industrial

Flomec RT14 Datasheet - GO Industrial

Flomec RT40 Datasheet - GO Industrial

Specifications

Body Material: Aluminium

Rotor Material: PPS

O-Ring Material: Viton

Temperature Range: -40°C - +150°C

Recommended Filtration: 100 mesh (150 ?m)

Accuracy of ± 0.5% of reading (±1% with M3 mechanical totaliser | ± 0.2% of reading with RT14 with non-linearity correction)

Repeatability typically ± 0.03% of reading

Flows from 1 L/min. – 450L/min. with Pulse-Out or LCD Display

Sizes 1/8” – 3/8” (4mm-10mm) Pipe Sizes

Features

High accuracy and repeatability, direct volumetric reading
No requirement for flow conditioning (straight pipe runs)
Only two moving parts means less maintenance and better reliability
Factory calibrated
