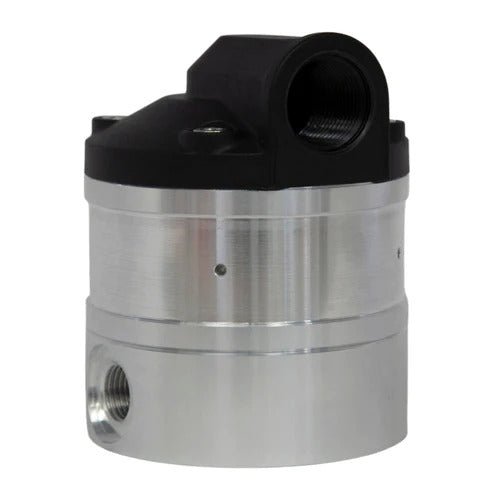

FLOMEC OM Series Flow Meters Small Capacity

Name: FLOMEC OM Series Flow Meters Small Capacity
Brand: Flomec
SKU: OM004A511-211
Price: 814.0 AUD
Availability: InStock

SKU: OM004A511-211

FLOMEC OM Series Flow Meters Small Capacity

$814.00 AUD

Save $0

Sold out

Inclusive of GST. Shipping calculated at checkout.

In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

1/8" (1-36 lph) / BSP / No Display - Pulse Out Only

1/8" (1-36 lph) / BSP / LCD Display - RT40 (GRN Housing)

1/8" (1-36 lph) / BSP / LCD Display - RT40 (Aluminium Housing)

1/8" (1-36 lph) / BSP / LCD Display with Outputs - RT14

1/8" (1-36 lph) / NPT / No Display - Pulse Out Only

1/8" (1-36 lph) / NPT / LCD Display - RT40 (GRN Housing)

1/8" (1-36 lph) / NPT / LCD Display - RT40 (Aluminium Housing)

1/8" (1-36 lph) / NPT / LCD Display with Outputs - RT14

1/4" (2-100 lph) / BSP / No Display - Pulse Out Only

1/4" (2-100 lph) / BSP / LCD Display - RT40 (GRN Housing)

1/4" (2-100 lph) / BSP / LCD Display - RT40 (Aluminium Housing)

1/4" (2-100 lph) / BSP / LCD Display with Outputs - RT14

1/4" (2-100 lph) / NPT / No Display - Pulse Out Only

1/4" (2-100 lph) / NPT / LCD Display - RT40 (GRN Housing)

1/4" (2-100 lph) / NPT / LCD Display - RT40 (Aluminium Housing)

1/4" (2-100 lph) / NPT / LCD Display with Outputs - RT14

3/8" (15-550 lph) / BSP / No Display - Pulse Out Only

3/8" (15-550 lph) / BSP / LCD Display - RT40 (GRN Housing)

3/8" (15-550 lph) / BSP / LCD Display - RT40 (Aluminium Housing)

3/8" (15-550 lph) / BSP / LCD Display with Outputs - RT14

3/8" (15-550 lph) / NPT / No Display - Pulse Out Only

3/8" (15-550 lph) / NPT / LCD Display - RT40 (GRN Housing)

3/8" (15-550 lph) / NPT / LCD Display - RT40 (Aluminium Housing)

3/8" (15-550 lph) / NPT / LCD Display with Outputs - RT14

Size

1/8" (1-36 lph)

1/4" (2-100 lph)

3/8" (15-550 lph)

Connection

BSP

NPT

Display

No Display - Pulse Out Only

LCD Display - RT40 (GRN Housing)

LCD Display - RT40 (Aluminium Housing)

LCD Display with Outputs - RT14

Product variants

Quantity

Other payment options

View full details

FLOMEC OM Series Flow Meters Small Capacity

From $693.00 AUD

Save $0

Sold out

1/8" (1-36 lph) / BSP / No Display - Pulse Out Only

1/8" (1-36 lph) / BSP / LCD Display - RT40 (GRN Housing)

1/8" (1-36 lph) / BSP / LCD Display - RT40 (Aluminium Housing)

1/8" (1-36 lph) / BSP / LCD Display with Outputs - RT14

1/8" (1-36 lph) / NPT / No Display - Pulse Out Only

1/8" (1-36 lph) / NPT / LCD Display - RT40 (GRN Housing)

1/8" (1-36 lph) / NPT / LCD Display - RT40 (Aluminium Housing)

1/8" (1-36 lph) / NPT / LCD Display with Outputs - RT14

1/4" (2-100 lph) / BSP / No Display - Pulse Out Only

1/4" (2-100 lph) / BSP / LCD Display - RT40 (GRN Housing)

1/4" (2-100 lph) / BSP / LCD Display - RT40 (Aluminium Housing)

1/4" (2-100 lph) / BSP / LCD Display with Outputs - RT14

1/4" (2-100 lph) / NPT / No Display - Pulse Out Only

1/4" (2-100 lph) / NPT / LCD Display - RT40 (GRN Housing)

1/4" (2-100 lph) / NPT / LCD Display - RT40 (Aluminium Housing)

1/4" (2-100 lph) / NPT / LCD Display with Outputs - RT14

3/8" (15-550 lph) / BSP / No Display - Pulse Out Only

3/8" (15-550 lph) / BSP / LCD Display - RT40 (GRN Housing)

3/8" (15-550 lph) / BSP / LCD Display - RT40 (Aluminium Housing)

3/8" (15-550 lph) / BSP / LCD Display with Outputs - RT14

3/8" (15-550 lph) / NPT / No Display - Pulse Out Only

3/8" (15-550 lph) / NPT / LCD Display - RT40 (GRN Housing)

3/8" (15-550 lph) / NPT / LCD Display - RT40 (Aluminium Housing)

3/8" (15-550 lph) / NPT / LCD Display with Outputs - RT14

Product variants

Details

The OM Series Flow Meter is versatile enough to have multiple output options including;

Pulse out only
RT40 large LCD display in either a low cost glass reinforced nylon housing or rugged aluminium housing
RT14 flow rate totaliser which can interface with external control and monitoring equipment (PLC, SCADA, DCS) via scaled pulse, 4-20mA (Loop Powered) Output or flow alarms
M3 4-digit mechanical totaliser

Features

High accuracy and repeatability, direct volumetric reading

No requirement for flow conditioning (straight pipe runs)

Only two moving parts means less maintenance and better reliability

Factory calibrated

Flomec OM Series Flow Meters Small Capacity

Overview

The FLOMEC® Small Capacity OM Series Oval Gear meters are well suited to measurement of very low flow rates of fuels and lubricants Exceptional accuracy and reliability can be obtained on clean liquids of almost any viscosity.

Available in a range of sizes from 1/8” – 3/8” (4mm-10mm) and flow rates of 1 L/hr. – 550 L/hr.

The FLOMEC small capacity OM Series meters provide exceptional performance and easy installation using simple yet proven positive displacement technology with no flow conditioning required (straight pipe runs).

Our small capacity flow meters for fuels and oils are constructed with aluminium body material, stainless steel rotors (PPS in the 3/8 in.) and Viton O-rings.

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Read our complete warranty terms & conditions here.

All our online payment methods are secured.

Flomec OM Series Instruction Manual - GO Industrial

Flomec OM Series Small Capacity Datasheet - GO Industrial

Specifications

Body Material: Aluminium

Rotor Material: PPS (Stainless Steel in sizes 1/8" & 1/4")

O-Ring Material: Viton

Temperature Range: -40°C - +150°C

Accuracy of ± 1.0% of reading (accuracy is ± 0.2% of reading with optional RT14 with non-linearity correction)

Repeatability typically ± 0.03% of reading

Flows from 1 L/hr. – 550L/hr. with Pulse-Out or LCD Display

Sizes 1/8” – 3/8” (4mm-10mm) Pipe Sizes

Features

High accuracy and repeatability, direct volumetric reading
No requirement for flow conditioning (straight pipe runs)
Only two moving parts means less maintenance and better reliability
Factory calibrated
