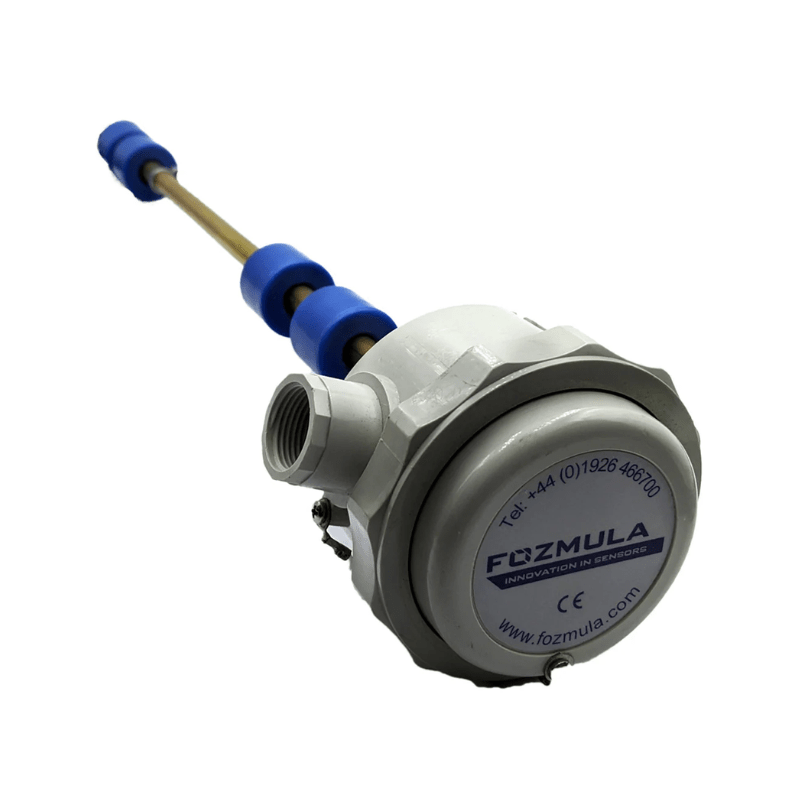

FOZMULA Float Switch Vertical

SKU: TLL70S1-0500

FOZMULA Float Switch Vertical

$368.00 AUD
$368.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Length

Other payment options

View full details
FOZMULA Float Switch Vertical - GO Industrial - TLL70S1 - 0500

FOZMULA Float Switch Vertical

From $368.00 AUD
$368.00
Sold out

Features

  • Customised to your specific application by GTS
  • Up to 6 switching points
  • Anywhere up to 2 metres in length
  • 1" BSP Connection
  • Compatible with diesel, water and other liquids
  • Designed with the magnet and reed switch principle

    • Fozmula Float Switch Vertical

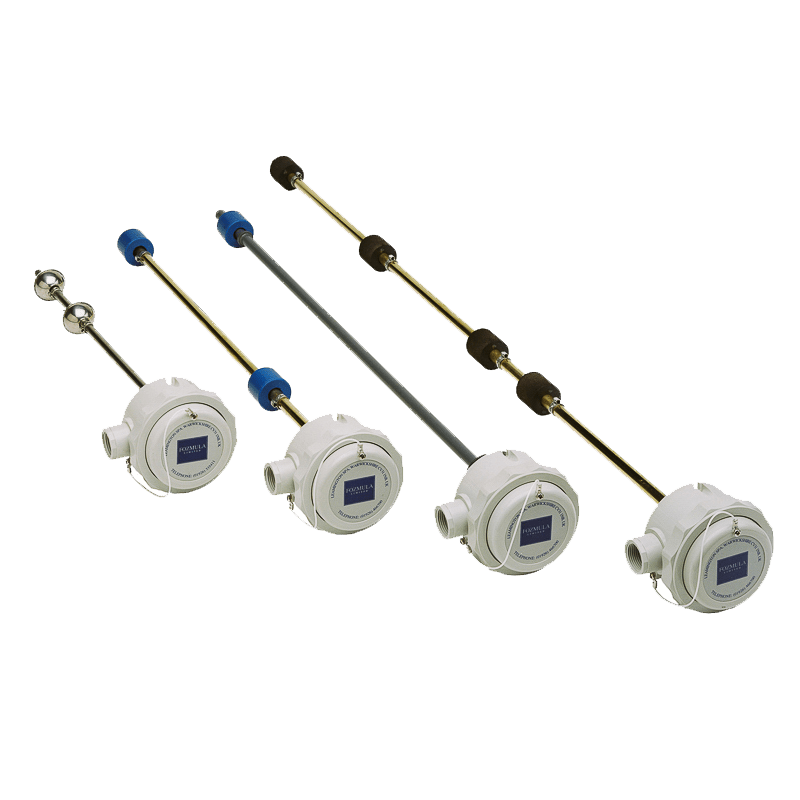

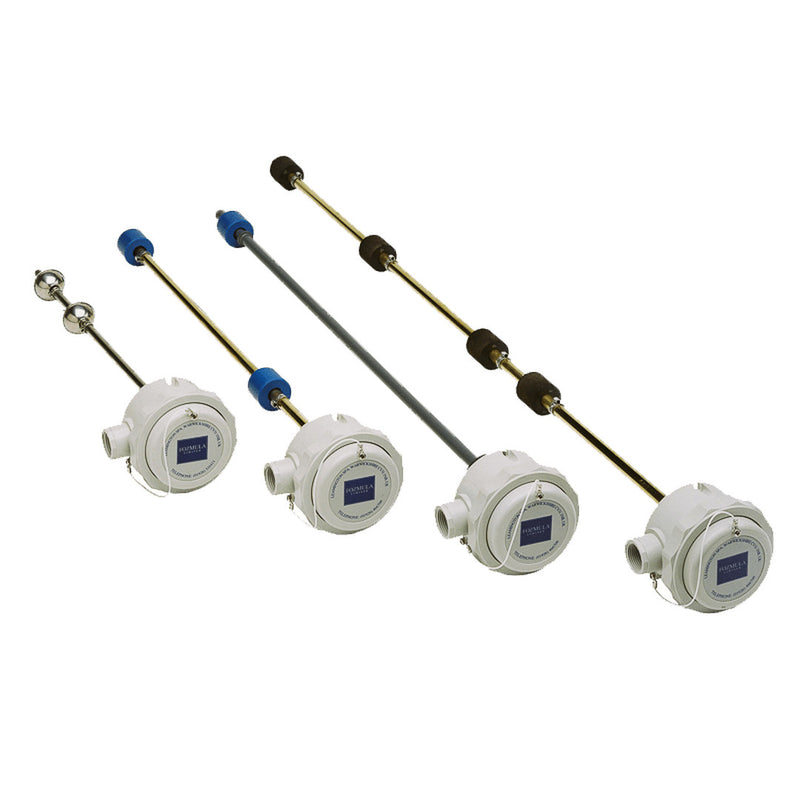

    The Fozmula T/LL70, from GO Industrial, is a comprehensive range of vertical float level switches designed around the proven and reliable magnet and reed switch principle.

    Comprising many build variants, the Fozmula T/LL70 vertical float level switch is customised to each application by means of materials, level adjustment, connection, thread and reed contact specification.

    • suitable for use with Diesel, Petrol, Water or Lubricants

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • GO Data Sheet Fozmula T LL70 Vertical Float Level Switch
    • GO Manual Fozmula TLL70
    • GO Specification Form Fozmula T LL70
    • GO Installation-Instructions Fozmula TLL70-HDLL70

    Specifications

    Liquid Types

    • Liquids compatible with the construction materials; typically diesel, kerosene, petrol, water.

    Dimensions

    • Max. Length: 2250 mm Brass, 3000 mm SS, 1500 mm uPVC
    • Min. Length: 200 mm (4 Floats, 10 VA Reeds)
    • Min. Switch to Switch Dim: 40 mm (10 VA Reeds)
    • Min. Switch to End Dim: 40 mm (10 VA Reeds)
    • Min. Switch to Datum Dim: 40 mm (10 VA Reeds)

    Operation

    • Max Number of Floats: 6 x N/O or N/C, 4 x C/O

    Reed Contact Specification

    Normally Open or Normally Closed

    • Voltage -≤ 250 VAC/VDC
    • Current -≤ 3 A -1 A standard
    • Power -≤ 120 VA

    Constant Open

    • Voltage - ≤ 500 VAC/VDC
    • Current -≤ 3 A -1 A standard
    • Power -≤ 100 VA

    Environmental Ratings

    • Ingress (Enclosure): IP67
    • Operating Temperature: -20 ºC to +70 ºC
    • Vibration: 7.44 Grms, BSEN 60068-2-64:1993, Random Vibration

    Connections

    • Enclosure: Entry is M20 threaded for gland / conduit. Screw terminals for ≤ Ø2 mm / 3 mm2 conductors.
    • Flying Leads: Connectors / terminals as required.

      Features

    • Customised to your specific application by GTS
    • Up to 6 switching points
    • Anywhere up to 2 metres in length
    • 1" BSP Connection
    • Compatible with diesel, water and other liquids
    • Designed with the magnet and reed switch principle
