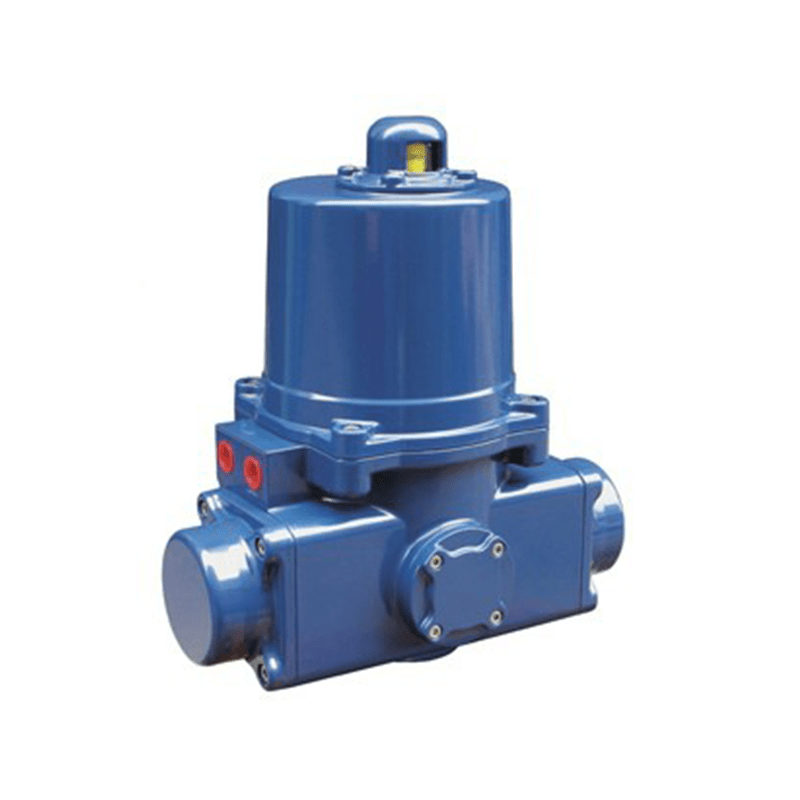

GO Actuator Electric Spring Return Range

SKU: S500

$7,321

GO Actuator Electric Spring Return Range

90 degree turn Spring Return/Fail Safe electric actuator. Mainly used in critical situations where no compressed air is available such as solar powered oil pipeline and irrigation stations. Also available with a manual override upon request.

Robust powder coated aluminium electric actuator to IP67 weatherproof standards, complete with a buffered spring return mechanism to fail safe on loss of power. CW visual position indicator & voltage free contacts for end of stroke feedback.

Model Torque (NM) Speed in Seconds (90°) MTG Flange Drive (mm) Weight (kg)
AC Open AC Close DC Open DC Close
S500 50 9 3 7 3 F07 17 sq 27
S1300 130 9 8 8 8 F10 22 sq 57
S2000 200 13 12 11 12 F12 27 sq 95
S2600 250 17 12 12 12 F12 27 sq 95

      Optional Items

      • Limit Switches 2xZero Voltage L/S Standard with all actuators other than modulating. (0.250v. 5 amp)

      • Modulating Control. 4–20MA, 1–5VDC, 2–10VDC

      • Explosion Proof IECEx

      • Special Voltages — Including 415V 3 Phase

      • Local Control Unit

      • Potentiometer (1K or 5K OHM)

      • Torque Limiter

      • Current Position Transmitter output 4-20MA

      • Heater

      • High Speed Open & Close, 3 Seconds, 8 Seconds

      • Floating Controller
