GO Actuator Pneumatic Spring Return Range
SKU: SR50
$132

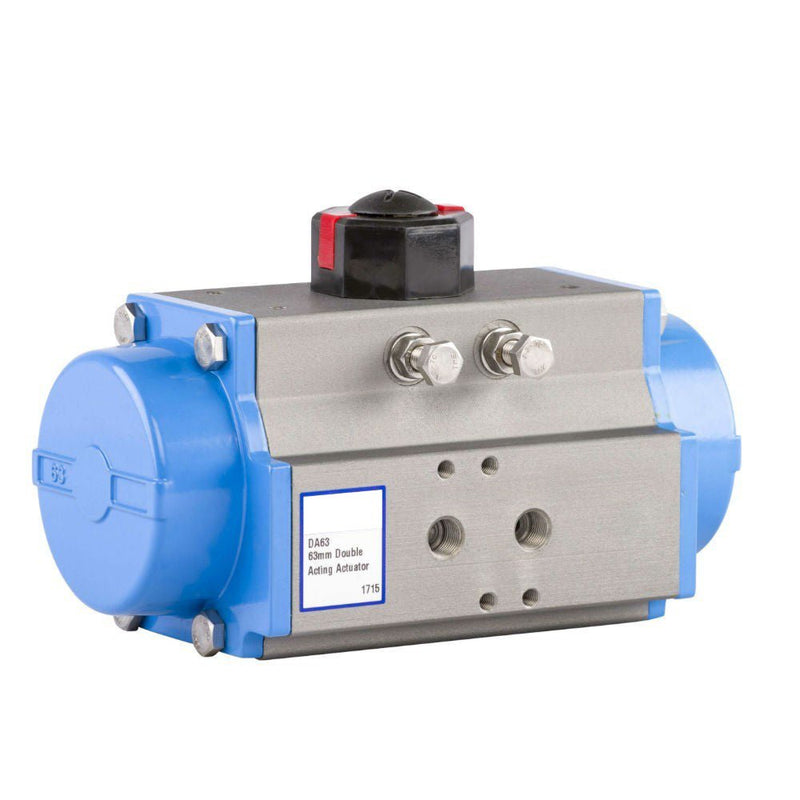

GO Actuator Pneumatic Spring Return Range
Incorporates the latest mechanical technology (rack and pinion design) to give long service life with light weight and high performance. The unit will spring back to its rest position in the absence of air making it great for fail safe applications.
Features include end of stroke adjustment, visual Indicator, namur interface and ISO mounting interface. Options include IP67 limit switch box with visual Indicator, Namur (direct mount) solenoid valves and a range of inserts to step the drive down.
- Size 50mm to 270mm
- Body Anodised Aluminium
- End Caps Epoxy coated aluminium
- Pinion Nickel Plated Steel
- Fixings 316 Stainless Steel
- Actuation Spring Return Pneumatic
| MOD | SET | Spring torque (Nm) | Air supply pressure (bar) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5.5 | 6 | 7 | 8 | ||||||||
| Torque output spring return actuators (NM) | |||||||||||
| 0o | 90o | 0o | 90o | 0o | 90o | 0o | 90o | 0o | 90o | ||
| SR50 | 5 | 6.7 | 9.7 | 11.5 | 8.5 | 13.2 | 10.2 | 16.5 | 13.5 | 19.8 | 16.8 |
| SR63 | 5 | 11.1 | 16.9 | 21.1 | 15.4 | 24.1 | 18.3 | 29.9 | 24.2 | 35.8 | 30 |
| SR75 | 5 | 22.1 | 34.6 | 41.9 | 29.4 | 47.7 | 35.2 | 59.3 | 46.8 | 71 | 58.5 |
| SR88 | 5 | 36.7 | 57.8 | 63 | 42.9 | 73.1 | 52.1 | 91.5 | 70.4 | 109 | 88.7 |
| SR100 | 5 | 50.7 | 78.8 | 95.6 | 67.5 | 108 | 80.8 | 135 | 107 | 162 | 133 |
| SR115 | 5 | 82 | 131 | 154 | 105 | 176 | 126 | 218 | 169 | 261 | 212 |
| SR125 | 5 | 105 | 165 | 200 | 140 | 227 | 168 | 283 | 223 | 338 | 278 |
| SR145 | 5 | 165 | 258 | 314 | 221 | 357 | 264 | 444 | 351 | 531 | 438 |
| SR160 | 5 | 224 | 332 | 400 | 292 | 456 | 349 | 570 | 462 | 683 | 575 |
| SR180 | 5 | 316 | 474 | 526 | 369 | 603 | 445 | 756 | 599 | 909 | 752 |
| SR200 | 5 | 425 | 630 | 745 | 540 | 851 | 646 | 1064 | 859 | 1277 | 1072 |
| SR240 | 5 | 937 | 1404 | 1616 | 1149 | 1848 | 1381 | 2312 | 1845 | 2776 | 2309 |
| SR270 | 5 | 1317 | 1974 | 2273 | 1616 | 2599 | 1942 | 3252 | 2595 | 3905 | 3248 |
Air Consumption in Litres (1 litre = 1000cm³)
| Model (SR) | 32 | 50 | 63 | 75 | 88 | 100 | 115 | 125 | 160 | 200 | 270 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Consumption | 0.038 | 0.108 | 0.199 | 0.266 | 0.495 | 0.743 | 1 | 1.751 | 3.606 | 5.704 | 15 |
To work out L/min multiply the value in the table by the number of strokes in a minute.
