GO Air Lubricator Range LUB
Dimensions - GO Air Lubricator Range LUB
Skip to product information
1 of 3
Specification LUB-02 LUB-03 LUB-04 LUB-05 LUB-06 LUB-08 LUB-09
Port Size (BSPP) 1/4” 3/8” 1/2” 3/4” 1” 1 ½” 2”
Flow Rate L/min 800 1700 5000 7000 7000
Max Pressure 8 Bar (118 psi)
Medium Temperature 0 to 60°C
Media Air
Lubricating Oil ISOVG32 or Equivalent
Drops per minute 0 to 120 Drops per minute
Construction Die Cast Aluminium
Bowl Material Polycarbonate
Bowl Guard Standard
Min Flow for Oil Drip 15L/min 30L/min 50L/min 190L/min 190L/min
Lubricating Oil Capacity 25 cm³ 50 cm³ 130 cm³

(LUB)

  • Size 1/4" to 2" BSP
  • Function Lubricator
  • Body Die Cast Aluminium
  • Pressure Range 0 to 8 BAR
  • Media Air

GO Air Lubricator Range LUB

SKU: LUB-02

GO Air Lubricator Range LUB

Regular price $44.00 AUD
Sale price $44.00 AUD Regular price
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Size

Other payment options

The Basics

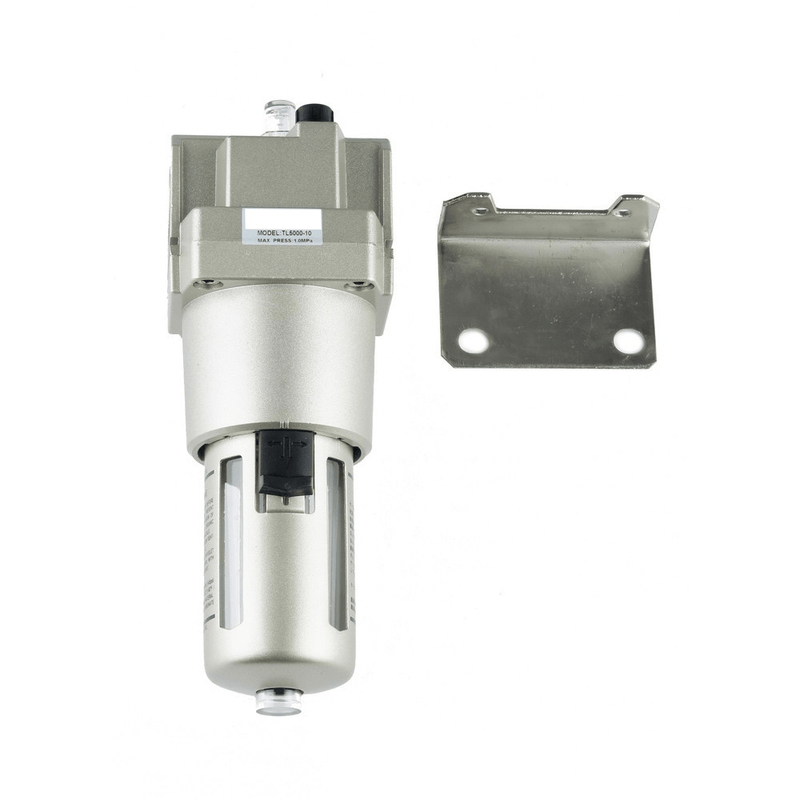

These lubricators work by emitting a micro fog into the air stream which preserves, prolongs and enhances the performance of down stream machinery. The amount of lubrication emitted is adjustable and all models include mounting bracket (except 1 1/2" & 2"). Easy to install, maintain and refill. Comes with polycarbonate bowl guard with sight glass.

        Specification LUB-02 LUB-03 LUB-04 LUB-05 LUB-06 LUB-08 LUB-09
        Port Size (BSPP) 1/4” 3/8” 1/2” 3/4” 1” 1 ½” 2”
        Flow Rate L/min 800 1700 5000 7000 7000
        Max Pressure 8 Bar (118 psi)
        Medium Temperature 0 to 60°C
        Media Air
        Lubricating Oil ISOVG32 or Equivalent
        Drops per minute 0 to 120 Drops per minute
        Construction Die Cast Aluminium
        Bowl Material Polycarbonate
        Bowl Guard Standard
        Min Flow for Oil Drip 15L/min 30L/min 50L/min 190L/min 190L/min
        Lubricating Oil Capacity 25 cm³ 50 cm³ 130 cm³

        (LUB)

        • Size 1/4" to 2" BSP
        • Function Lubricator
        • Body Die Cast Aluminium
        • Pressure Range 0 to 8 BAR
        • Media Air
