Built for the work it does.

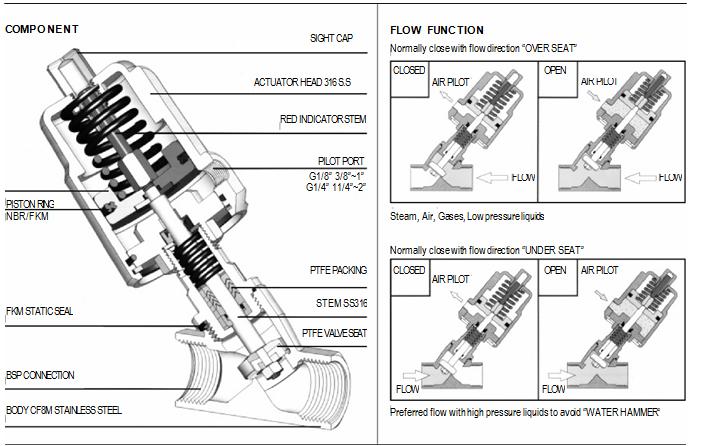

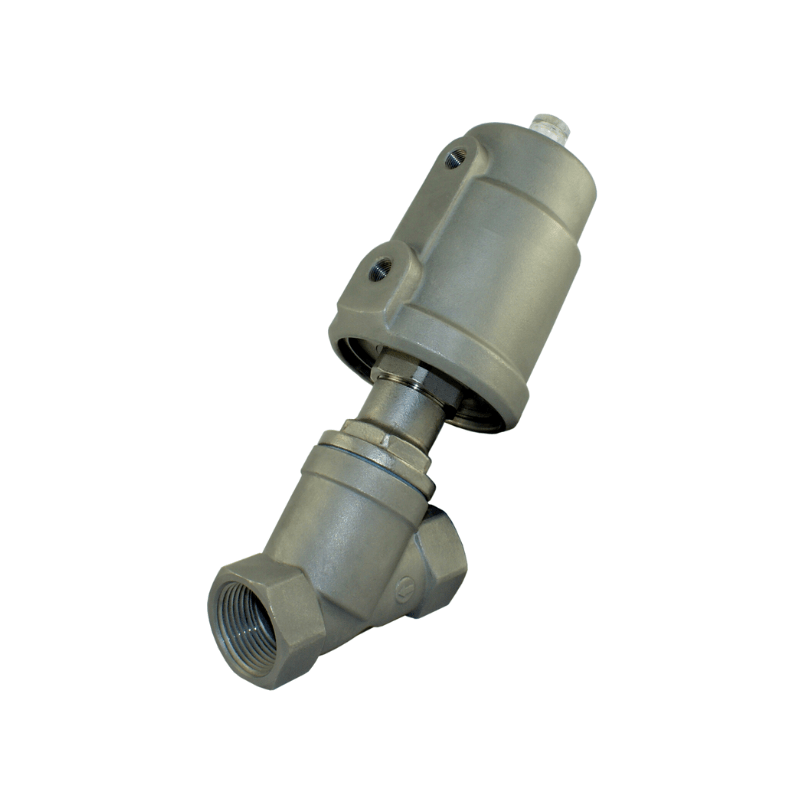

Spring return (normally closed) 316 stainless steel angle seat valve. Great for water control, dairy industry, medical industry etc. Available from 3/8" to 2" BSP. Operates by putting air into the head which opens the valve up, when the air is exhausted the spring closes the piston back onto the seat.
Specifications
| Model | Port Size BSP | Orifice Ømm | Actuator Size Ømm | Pressure Over Seat | Pressure Under Seat | Weight (kg) |
|---|---|---|---|---|---|---|
| AS5-03 | 3/8” | 13 | 50 | 16 Bar | 16 Bar | 1.1 |
| AS5-04 | 1/2" | 13 | 50 | 16 Bar | 16 Bar | 1.1 |
| AS5-05 | 3/4” | 18 | 50 | 16 Bar | 12 Bar | 1.2 |
| AS5-06 | 1” | 24 | 63 | 16 Bar | 10 Bar | 2.3 |
| AS5-07 | 11/4” | 31 | 80 | 16 Bar | 12 Bar | 3.9 |
| AS5-08 | 11/2” | 35 | 80 | 16 Bar | 10 Bar | 4.0 |
| AS5-09 | 2” | 45 | 80 | 16 Bar | 6 Bar | 5.1 |
