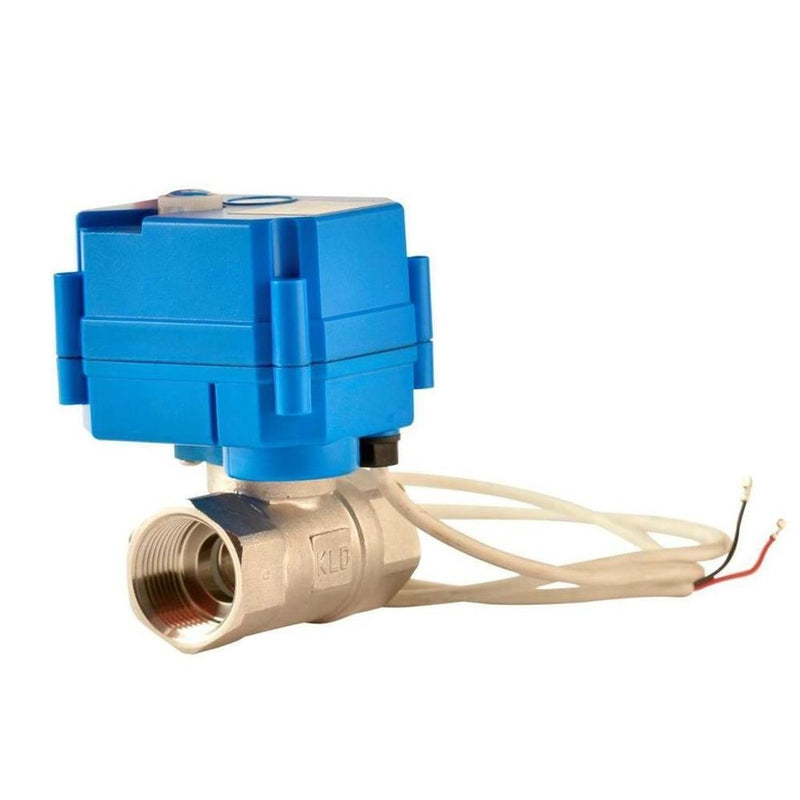

GO Ball Valve Actuated Capacitor Return 316 Stainless 1/2
  • GO Ball Valve Actuated Capacitor Return 316 Stainless 1/2" to 2" Scr BSP BAS Range
1 1

The BAS series has a wide range of industry applications namely; dirty or contaminated fluids, viscous fluids, some corrosive fluids (check compatibility), gravity feed applications, anti water hammer slow close function, IP67 corrosive resistant enclosure, low power/solar/battery operated circuits (12-24v AC/DC).

A ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle.  The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.

Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff and control applications, where they are often preferred to gate and globe valves, but they lack their fine control in throttling applications.



Body Material 316 S.S
Ball Material 316 S.S
Seat Material PTFE with Viton O’Ring
Enclosure Thermoplastic IP65
Current 5 Watt Max (45 ~ 100 mA)
Current Draw at rest (open or close position) 20 Milli Amp
Capacitor Charge Time 30 Seconds
Open/Close Time 3 Seconds
Mounting Any Attitude
Media Pressure 10 BAR Max
Media Temperature 0°C to 90°C
  • Size 1" to 2" BSP
  • Body 316 Stainless Steel
  • Seat PTFE
  • Pressure  10 BAR
  • Temperature 0°C to 90°C
  • Actuation Capacitor Return Low voltage

GO Ball Valve Actuated Capacitor Return 316 Stainless 1/2" to 2" Scr BSP BAS Range

SKU: BASM54B

GO Ball Valve Actuated Capacitor Return 316 Stainless 1/2" to 2" Scr BSP BAS Range

$248.00 AUD
$248.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Size
Normally Open or Closed

Other payment options

The Basics

The BAS series electrically actuated ball valves automatically returns the valve to its original position when de-energised. The compact design works in the same way as a solenoid valve and can be considered ‘fail safe’ once the storage capacitor has charged up (approx 30 seconds). Unlike a solenoid valve the BAS can take full pressure in either direction, eliminating the need for a check valve.



The BAS series has a wide range of industry applications namely; dirty or contaminated fluids, viscous fluids, some corrosive fluids (check compatibility), gravity feed applications, anti water hammer slow close function, IP67 corrosive resistant enclosure, low power/solar/battery operated circuits (12-24v AC/DC).

A ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle.  The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.

Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff and control applications, where they are often preferred to gate and globe valves, but they lack their fine control in throttling applications.



Body Material 316 S.S
Ball Material 316 S.S
Seat Material PTFE with Viton O’Ring
Enclosure Thermoplastic IP65
Current 5 Watt Max (45 ~ 100 mA)
Current Draw at rest (open or close position) 20 Milli Amp
Capacitor Charge Time 30 Seconds
Open/Close Time 3 Seconds
Mounting Any Attitude
Media Pressure 10 BAR Max
Media Temperature 0°C to 90°C
  • Size 1" to 2" BSP
  • Body 316 Stainless Steel
  • Seat PTFE
  • Pressure  10 BAR
  • Temperature 0°C to 90°C
  • Actuation Capacitor Return Low voltage
