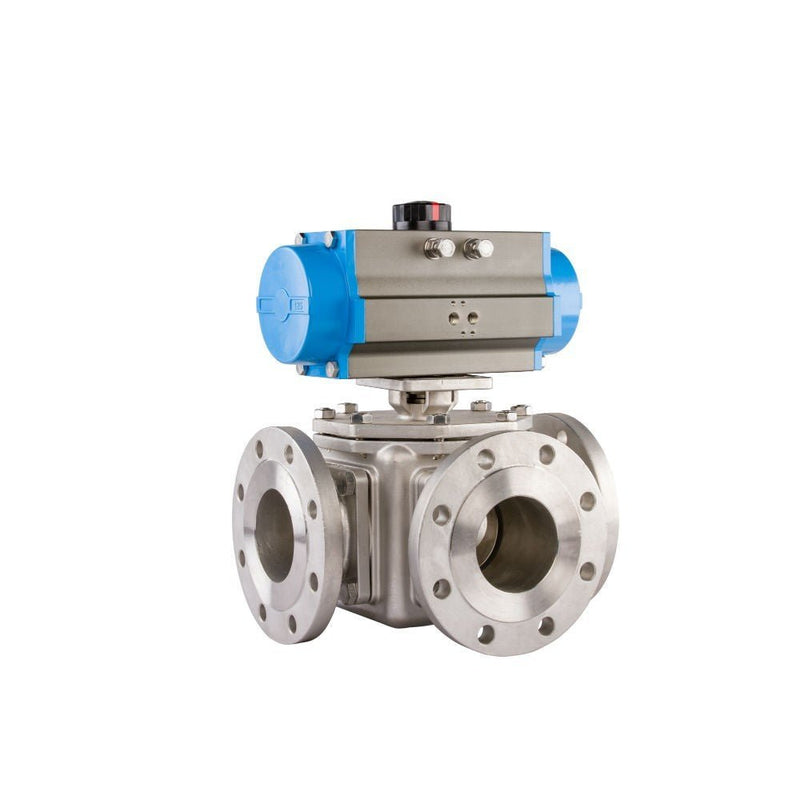

GO Ball Valve Actuated Double Acting Pneumatic Flanged ANSI 150# 3 Way 1/2" to 4" BLS3FADA Range
SKU: BLS3L4FA-DA
GO Ball Valve Actuated Double Acting Pneumatic Flanged ANSI 150# 3 Way 1/2" to 4" BLS3FADA Range
High performance 3 way full bore 316 Stainless Steel ball valve with ANSI 150 flanged connections and a double acting pneumatic actuator. Self adjusting stem packing assembly with belleville spring for temperature fluctuations and vibration. Pre drilled metric ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Anodized aluminium rack and pinion actuator with visual indicator, namur interface and stop adjustments.
Typical applications include water treatment, chemical, marine, petrochemical and general industry.
- Size 15mm to 100mm
- Body 316 Stainless Steel
- Seat RPTFE
- Pressure 20 BAR @ ambient
- Temperature -10°C to 180°C
- Actuation Double Acting Pneumatic
- Port L or T port
316SS 3 way, L port ball valve, fulll bore with double acting pneumatic actuator. ANSI 150 Flange, RTFE seat, FKM seals, live loaded packing150 lb pressure range, media temp -20°C to 180°C.Anodised & coated aluminium double acting pneumatic
| Model | DN (mm) | Actuator | Media Pressure | Media Temperature | Actuator Pressure |
|---|---|---|---|---|---|
| BLS3L4FA-DA-RT | 15 | DA50 | Vacuum to 20 BAR | -20°C to 180°C | 6 to 8 BAR |
| BLS3L5FA-DA-RT | 20 | DA63 | Vacuum to 20 BAR | -20°C to 180°C | 6 to 8 BAR |
| BLS3L6FA-DA-RT | 25 | DA63 | Vacuum to 20 BAR | -20°C to 180°C | 6 to 8 BAR |
| BLS3L7FA-DA-RT | 32 | DA75 | Vacuum to 20 BAR | -20°C to 180°C | 6 to 8 BAR |
| BLS3L8FA-DA-RT | 40 | DA75 | Vacuum to 20 BAR | -20°C to 180°C | 6 to 8 BAR |
| BLS3L9FA-DA-RT | 50 | DA88 | Vacuum to 20 BAR | -20°C to 180°C | 6 to 8 BAR |
| BLS3L10FA-DA-RT | 65 | DA100 | Vacuum to 20 BAR | -20°C to 180°C | 6 to 8 BAR |
| BLS3L11FA-DA-RT | 80 | DA115 | Vacuum to 20 BAR | -20°C to 180°C | 6 to 8 BAR |
| BLS3L12FA-DA-RT | 100 | DA125 | Vacuum to 20 BAR | -20°C to 180°C | 6 to 8 BAR |
