GO Ball Valve Actuated Double Acting Pneumatic PVC 1/2" to 4" BLPDA Range

SKU: BLP4B-DA

$187

GO Ball Valve Actuated Double Acting Pneumatic PVC 1/2" to 4" BLPDA Range

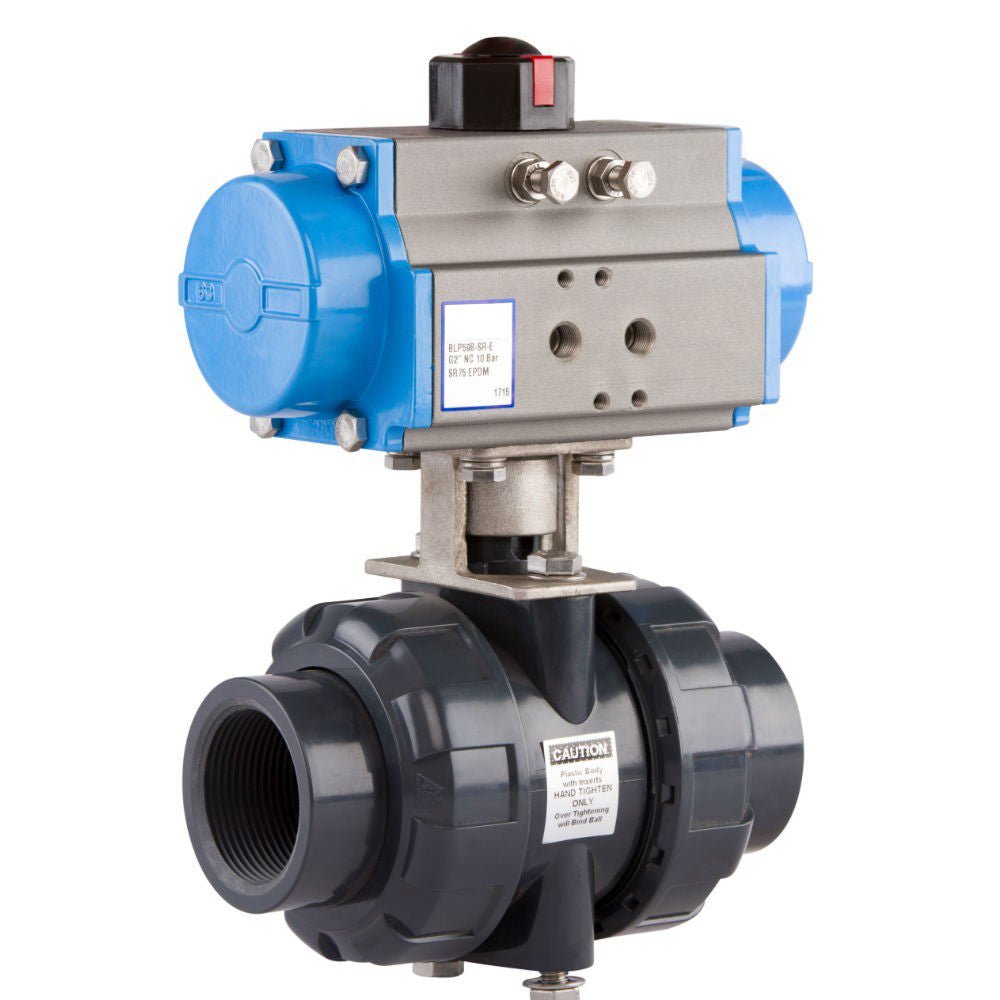

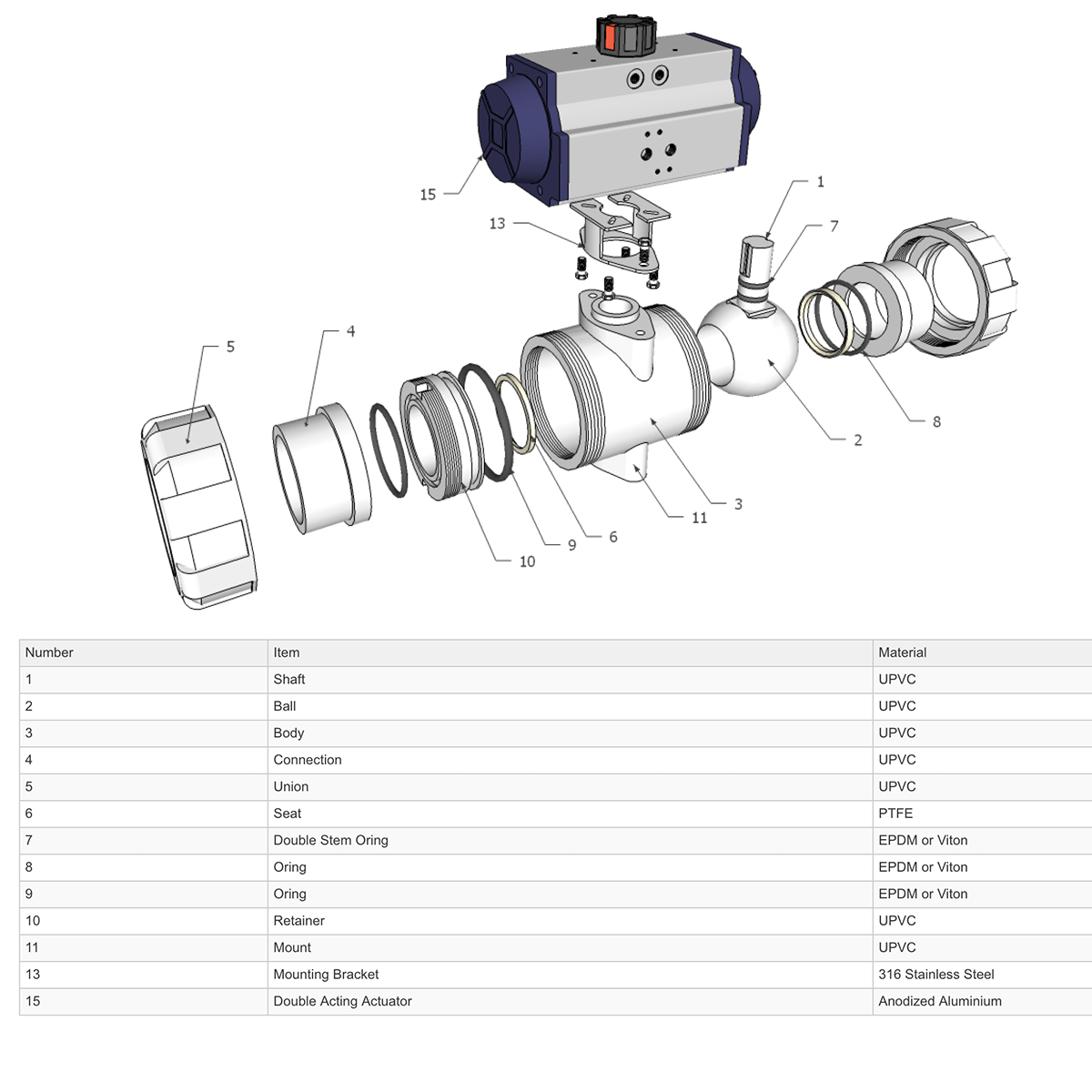

2 way UV stabilised PVC ball valve with double acting pneumatic actuator. Comes with PTFE (Teflon) seats and our unique double stem seal system (standard in EPDM but also available in Viton). Great for corrosive or chemical media where traditional material such as brass and stainless steel are not suitable. Anodised aluminium actuator with visual indicator.

Commonly used in the aquaculture industry (sea water), chemical dosing, water treatment and pool filtration.

Available in BSP threaded and solvent weld ends (ANSI Standard designed to fit Schdule 40 & 80 pipe).

  • Size 1/2" to 4" BSP & Solvent Weld
  • Body UV stabalised PVC
  • Seat PTFE
  • Pressure 10 BAR
  • Temperature Ambient
  • Actuation Double Acting Pneumatic

UPVC 2 way ball valve, with double acting actuator.G1/2", 15mm bore, PTFE seat, EPDM seals, DA50.Vacuum-10 BAR pressure range, media temp ambient.

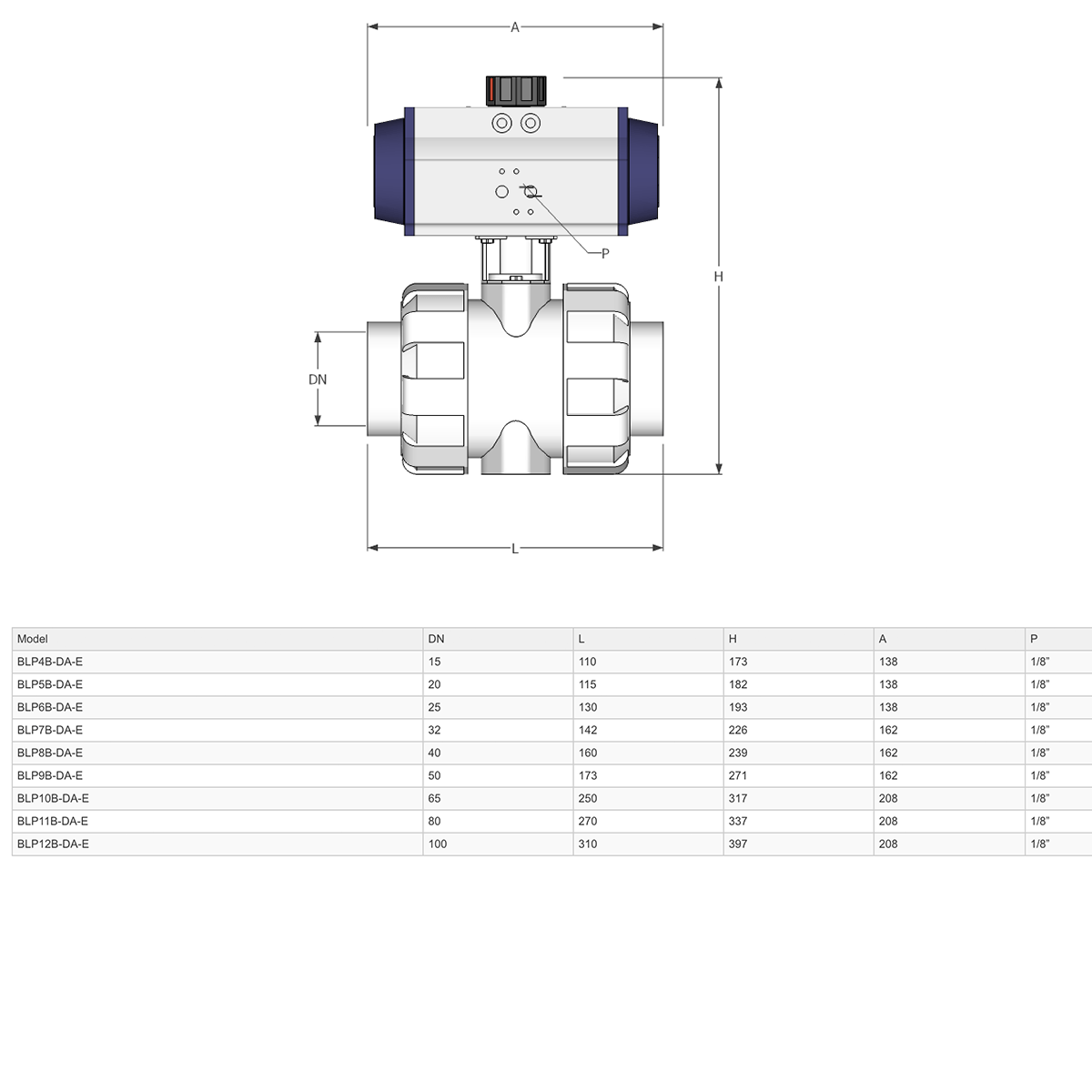

Model Size (BSP) Orifice Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure
BLP4B-DA-E 1/2 15 DA50 Vacuum to 10 BAR Ambient 6 to 8 BAR
BLP5B-DA-E 3/4 20 DA50 Vacuum to 10 BAR Ambient 6 to 8 BAR
BLP6B-DA-E 1 25 DA50 Vacuum to 10 BAR Ambient 6 to 8 BAR
BLP7B-DA-E 1 ¼ 32 DA63 Vacuum to 10 BAR Ambient 6 to 8 BAR
BLP8B-DA-E 1 ½ 40 DA63 Vacuum to 10 BAR Ambient 6 to 8 BAR
BLP9B-DA-E 2 50 DA63 Vacuum to 10 BAR Ambient 6 to 8 BAR
BLP10B-DA-E 2 ½ 65 DA75 Vacuum to 10 BAR Ambient 6 to 8 BAR
BLP11B-DA-E 3 80 DA75 Vacuum to 10 BAR Ambient 6 to 8 BAR
BLP12B-DA-E 4 100 DA75 Vacuum to 10 BAR Ambient 6 to 8 BAR
