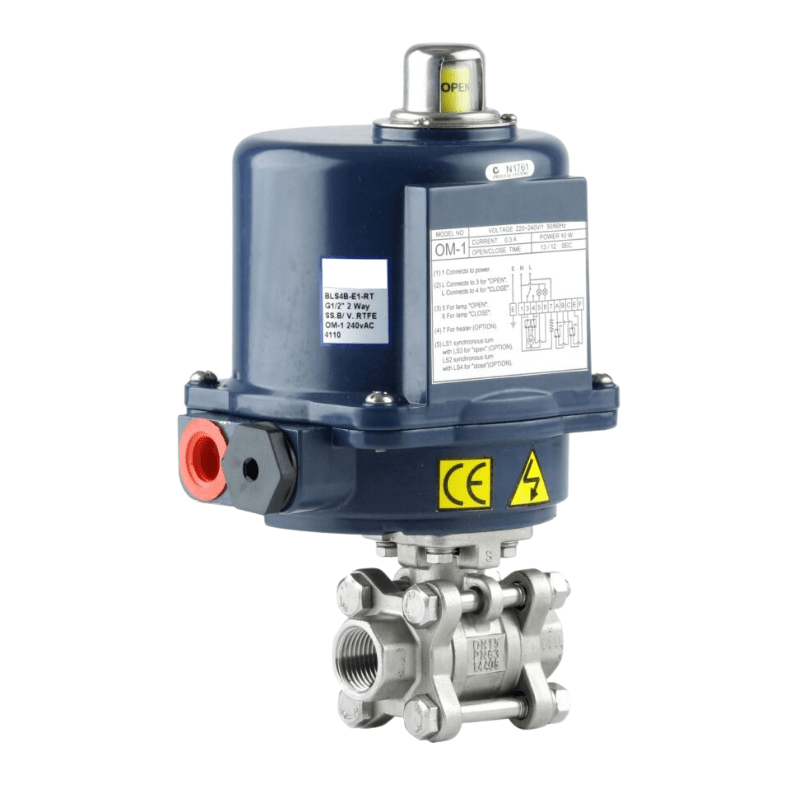

GO Ball Valve Actuated Electric 316 Stainless 3 Piece Full Bore 1/4" to 4" BLSE Range
SKU: BLS2B-E
GO Ball Valve Actuated Electric 316 Stainless 3 Piece Full Bore 1/4" to 4" BLSE Range
High performance 2 way 316 Stainless Steel ball valve (3 piece) with BSP threaded connections and a high quality IP67 electric actuator. Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Long neck mounting pad to reduce thermal transfer and preserve actuator. Reinforced PTFE seats for temperatures up to 180°C. Electric actuator includes visual indicator, 2 extra limit switches (voltage free) and a manual override.
Typical applications include water treatment, chemical, marine, petrochemical and general industry.
- Size 1/4" to 4" BSP
- Body 316 Stainless Steel 3 piece
- Seat Reinforced PTFE
- Pressure 70 BAR
- Temperature -20°C to 180°C
- Actuation Electric
316 S.S 2 way, 3 piece ball valve, with electric actuator IP67G2-1/2", RTFE seat, FKM seals, live loaded packing. Vacuum-68 BAR pressure range, media temp -20°C to 180°C.OM-2-7LS 12vDC Handwheel override, extra limit switch set, visual indicator
| Model | Size (BSP) | Size (mm) | Actuator | Media Pressure | Media Temperature |
|---|---|---|---|---|---|
| BLS2B-E*-RT | 1/4 | 8 | 0M-1 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C |
| BLS3B-E*-RT | 3/8 | 10 | 0M-1 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C |
| BLS4B-E*-RT | 1/2 | 15 | 0M-1 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C |
| BLS5B-E*-RT | 3/4 | 20 | 0M-1 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C |
| BLS6B-E*-RT | 1 | 25 | 0M-1 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C |
| BLS7B-E*-RT | 1 ¼ | 32 | 0M-1 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C |
| BLS8B-E*-RT | 1 ½ | 40 | 0M-A | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C |
| BLS9B-E*-RT | 2 | 50 | 0M-A | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C |
| BLS10B-E*-RT | 2 ½ | 63 | 0M-2 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C |
*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC.
