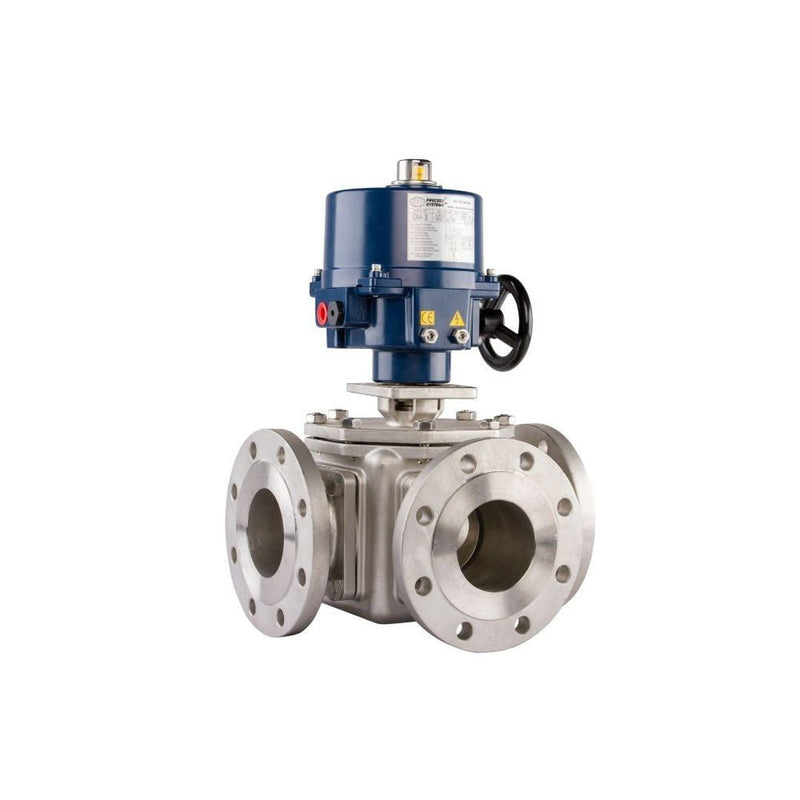

GO Ball Valve Actuated Electric Flanged ANSI 150# 3 Way 1/2" to 4" BLS3FAE Range

SKU: BLS3L4FA-E

$902

GO Ball Valve Actuated Electric Flanged ANSI 150# 3 Way 1/2" to 4" BLS3FAE Range

High performance 3 way full bore 316 Stainless Steel ball valve with ANSI 150 flanged connections and an electric actuator. Self adjusting stem packing assembly with belleville spring for temperature fluctuations and vibration. Pre drilled metric ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Powder coated die aluminium electric actuator with visual indicator, extra limit switches and a manual override.

Typical applications include water treatment, chemical, marine, petrochemical and general industry.

  • Size 15mm to 100mm
  • Body 316 Stainless Steel
  • Seat RPTFE
  • Pressure 20 BAR @ ambient
  • Temperature -10°C to 180°C
  • Actuation Electric

316 SS 3 way, L port ball valve, full bore with Electric Actuator IP67. ANSI 150 Flange, RTFE seat, FKM seals, live loaded packing150 lb pressure range, media temp -20°C to 180°C.OM-3-7LS 12vDC, handwheel override, extra limit switch set

Model DN (mm) Actuator Media Pressure Media Temperature
BLS3L4FA-E*-RT 15 0M-1 Vacuum to 20 BAR -20°C to 180°C
BLS3L5FA-E*-RT 20 0M-1 Vacuum to 20 BAR -20°C to 180°C
BLS3L6FA-E*-RT 25 0M-1 Vacuum to 20 BAR -20°C to 180°C
BLS3L7FA-E*-RT 32 0M-A Vacuum to 20 BAR -20°C to 180°C
BLS3L8FA-E*-RT 40 0M-2 Vacuum to 20 BAR -20°C to 180°C
BLS3L9FA-E*-RT 50 0M-2 Vacuum to 20 BAR -20°C to 180°C
BLS3L10FA-E*-RT 65 0M-3 Vacuum to 20 BAR -20°C to 180°C
BLS3L11FA-E*-RT 80 0M-4 Vacuum to 20 BAR -20°C to 180°C
BLS3L12FA-E*-RT 100 0M-4 Vacuum to 20 BAR -20°C to 180°C
