GO Ball Valves Actuated Electric Flanged ANSI 150# Full Bore Fire Safe

Overview

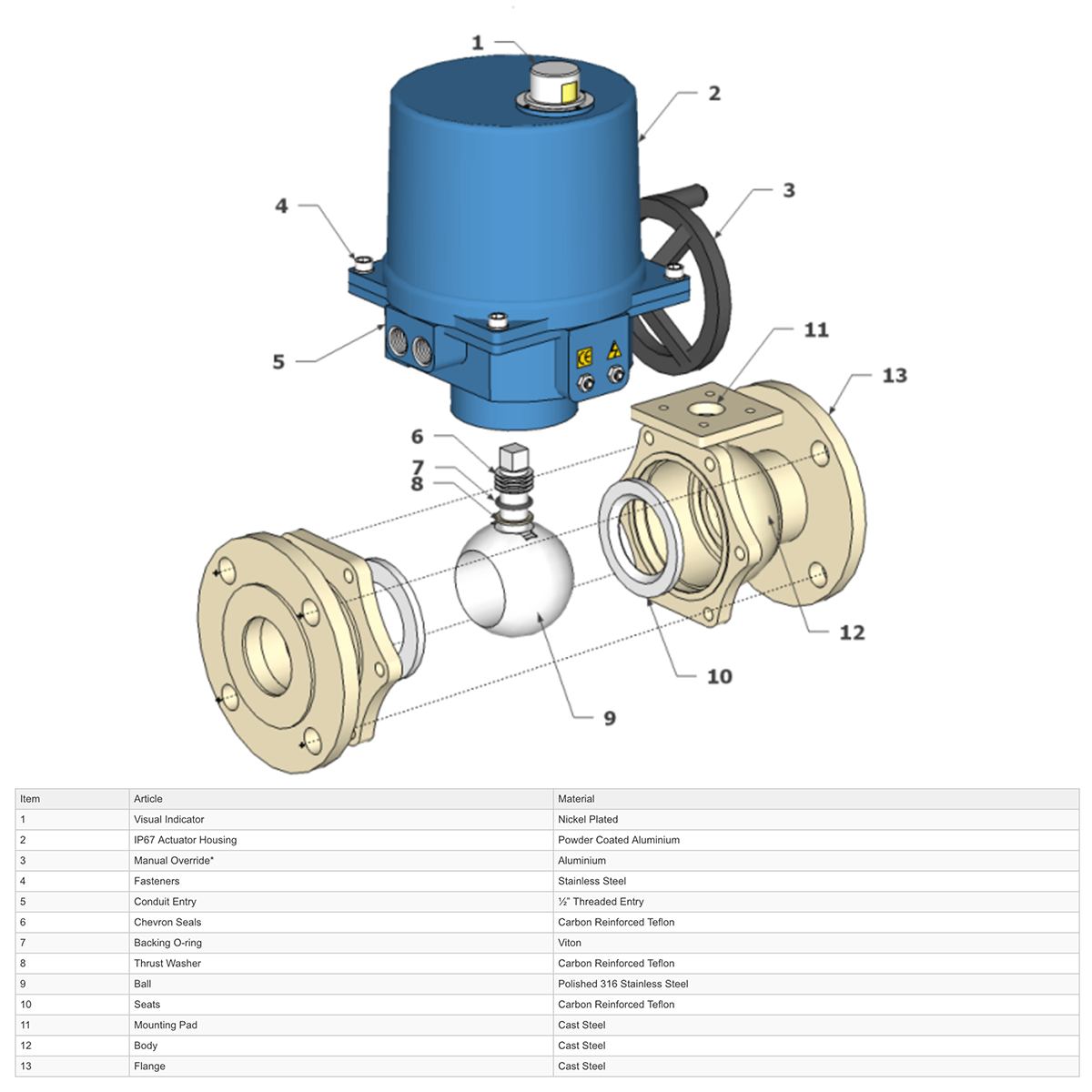

Two piece two way ANSI 150 lb flanged fire safe approved ball valve, electric operation. 316 Stainless Steel or Cast Steel Body, Graphite Filled PTFE seats, FKM backing ring, live loaded packing and anti static device. Ball valve designed & manufactured to ANSI B16.34, face to face complies with ANSI B16.10, flange ends comply with ANSI B16.5 and testing and inspection according to API598. Firesafe Approved API607 Sixth Edition, Cert. No 218781. Direct coupled IP67 electric actuator with visual indicator and extra limit switches. Media temp -20°C to 180°C.

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Read our complete warranty terms & conditions here.

All our online payment methods are secured.

Specifications

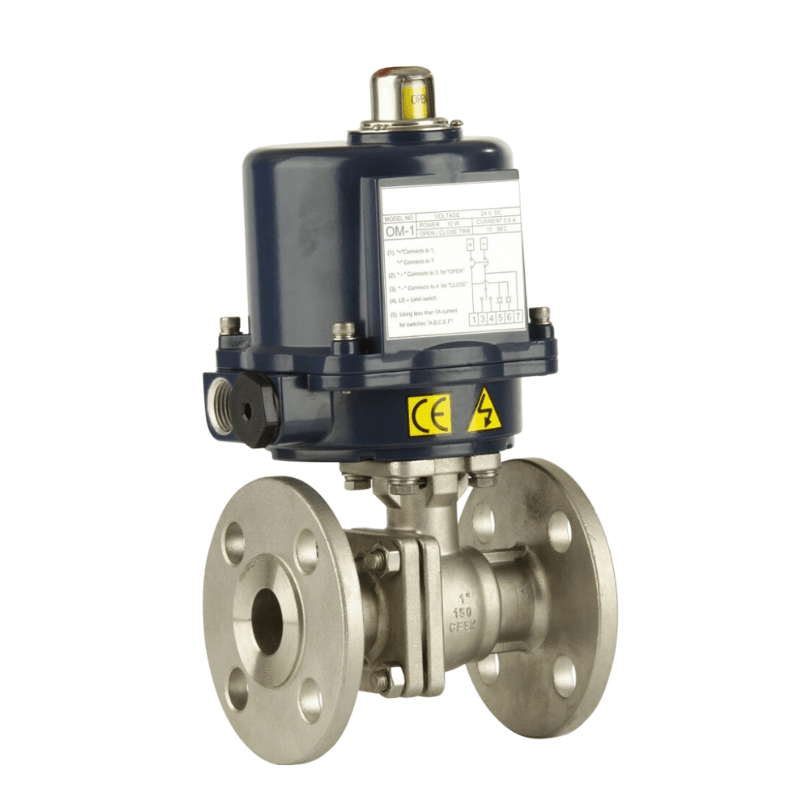

BLSFE SS316 Range

Model	Size (mm)	Actuator	Media Pressure	Media Temperature
BLSF4FA-E*-RT	15	0M-1	Vacuum to 20 BAR (10 BAR Steam)	-20°C to 180°C
BLSF5FA-E*-RT	20	0M-1	Vacuum to 20 BAR (10 BAR Steam)	-20°C to 180°C
BLSF6FA-E*-RT	25	0M-1	Vacuum to 20 BAR (10 BAR Steam)	-20°C to 180°C
BLSF7FA-E*-RT	32	0M-1	Vacuum to 20 BAR (10 BAR Steam)	-20°C to 180°C
BLSF8FA-E*-RT	40	0M-A	Vacuum to 20 BAR (10 BAR Steam)	-20°C to 180°C
BLSF9FA-E*-RT	50	0M-2	Vacuum to 20 BAR (10 BAR Steam)	-20°C to 180°C
BLSF10FA-E*-RT	63	0M-2	Vacuum to 20 BAR (10 BAR Steam)	-20°C to 180°C
BLSF11FA-E*-RT	80	0M-3	Vacuum to 20 BAR (10 BAR Steam)	-20°C to 180°C
BLSF12FA-E*-RT	100	0M-4	Vacuum to 20 BAR (10 BAR Steam)	-20°C to 180°C
BLSF13FA-E*-RT	125	0M-4	Vacuum to 20 BAR (10 BAR Steam)	-20°C to 180°C
BLSF14FA-E*-RT	150	0M-5	Vacuum to 20 BAR (10 BAR Steam)	-20°C to 180°C
BLSF15FA-E*-RT	200	0M-6	Vacuum to 20 BAR (10 BAR Steam)	-20°C to 180°C
BLSF16FA-E*-RT	250	0M-8	Vacuum to 20 BAR (10 BAR Steam)	-20°C to 180°C
BLSF17FA-E*-RT	300	0M-10	Vacuum to 20 BAR (10 BAR Steam)	-20°C to 180°C

Please note 125mm model is not fire safe approved.

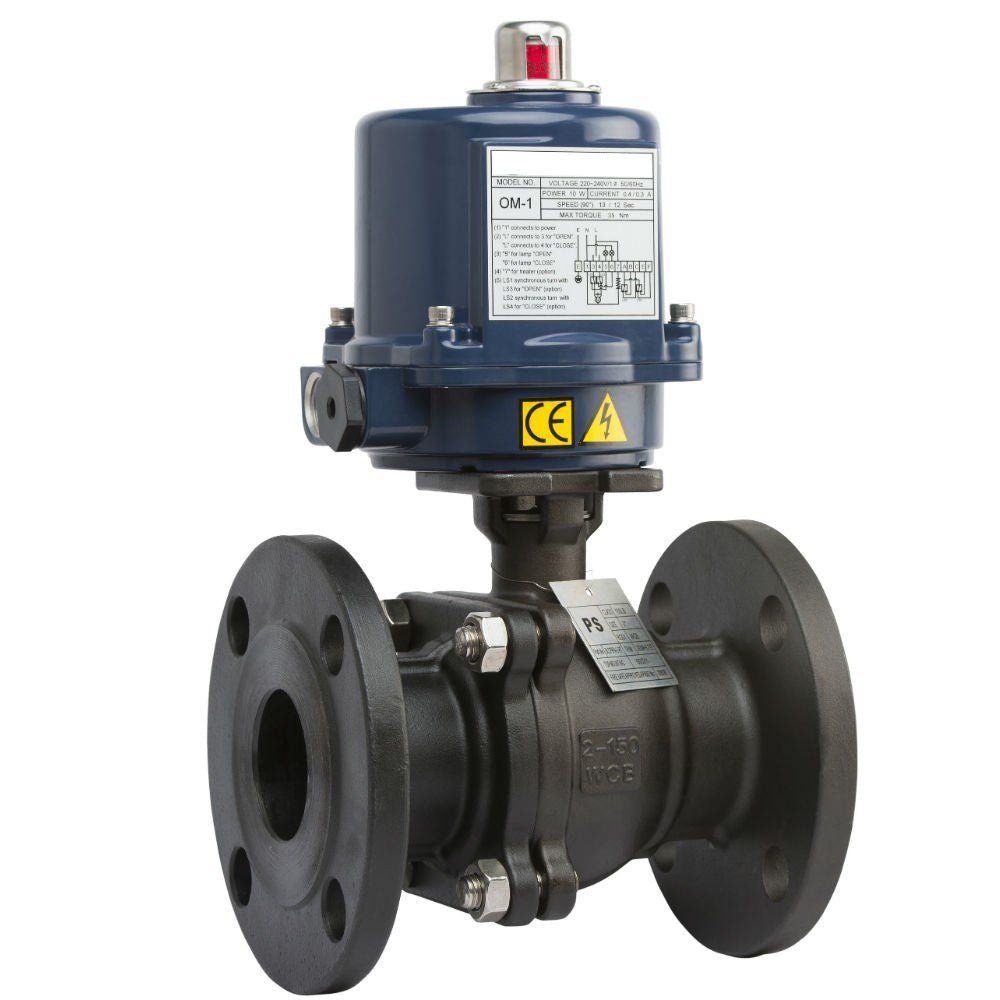

BLCFE Cast Steel Range

Model	Size (mm)	Actuator	Media Pressure	Media Temperature
BLCF4FA-E*-RT	15	0M-1	Vacuum to 20 BAR [10 BAR Steam]	-20°C to 180°C
BLCF5FA-E*-RT	20	0M-1	Vacuum to 20 BAR [10 BAR Steam]	-20°C to 180°C
BLCF6FA-E*-RT	25	0M-1	Vacuum to 20 BAR [10 BAR Steam]	-20°C to 180°C
BLCF7FA-E*-RT	32	0M-1	Vacuum to 20 BAR [10 BAR Steam]	-20°C to 180°C
BLCF8FA-E*-RT	40	0M-A	Vacuum to 20 BAR [10 BAR Steam]	-20°C to 180°C
BLCF9FA-E*-RT	50	0M-2	Vacuum to 20 BAR [10 BAR Steam]	-20°C to 180°C
BLCF10FA-E*-RT	63	0M-2	Vacuum to 20 BAR [10 BAR Steam]	-20°C to 180°C
BLCF11FA-E*-RT	80	0M-3	Vacuum to 20 BAR [10 BAR Steam]	-20°C to 180°C
BLCF12FA-E*-RT	100	0M-4	Vacuum to 20 BAR [10 BAR Steam]	-20°C to 180°C
BLCF13FA-E*-RT	125	0M-4	Vacuum to 20 BAR [10 BAR Steam]	-20°C to 180°C
BLCF14FA-E*-RT	150	0M-5	Vacuum to 20 BAR [10 BAR Steam]	-20°C to 180°C
BLCF15FA-E*-RT	200	0M-6	Vacuum to 20 BAR [10 BAR Steam]	-20°C to 180°C
BLCF16FA-E*-RT	250	0M-8	Vacuum to 20 BAR [10 BAR Steam]	-20°C to 180°C
BLCF17FA-E*-RT	300	0M-10	Vacuum to 20 BAR [10 BAR Steam]	-20°C to 180°C

Size 15mm to 200mm
Body 316 Stainless Steel or Cast Steel
Seat Reinforced Carbon PTFE
Pressure 150 pound
Temperature -20°C to 180°C
Actuation Electric
Fire Safe API607 6th E. Cert. No 218781
