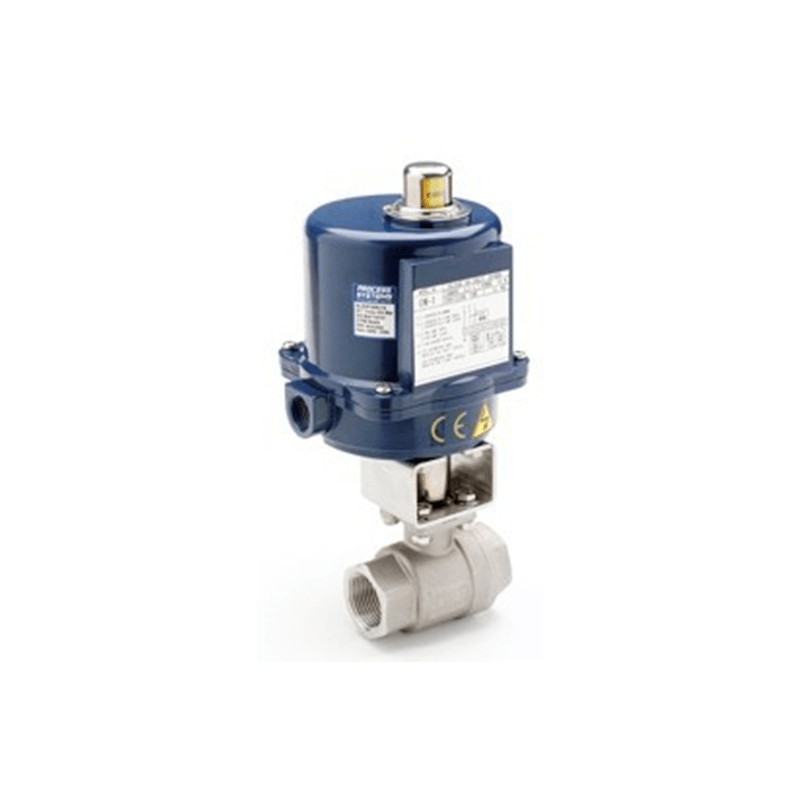

GO Ball Valve Actuated Electric High Pressure Two Piece Full Bore 316 Stainless 1/4" to 2" Scr BSP BLSHPE Range
SKU: BLSHP2B-E
GO Ball Valve Actuated Electric High Pressure Two Piece Full Bore 316 Stainless 1/4" to 2" Scr BSP BLSHPE Range
Series BLSHP high performance 316 stainless steel ball valves are specifically designed for high pressure applications. Delrin seats enable pressures up to 204 BAR or 3000 psi at 38°C. Comes with an IP67 electric actuator with visual indicator and extra limit switches.
Typical applications include water blasting, chemical injection, boiler feedwater and agricultural spraying.
- Size 1/4" to 2" BSP
- Body 316 Stainless Steel
- Seat Delrin
- Pressure 200 BAR
- Temperature Ambient
- Actuation Electric
| Model | Size(BSP) | Orifice Size (mm) | Actuator | Media Pressure | Media Temperature |
|---|---|---|---|---|---|
| BLSHP2B-E*-D | 1/4 | 8 | 0M-1 | 0 to 200 BAR | 40°C @ 200 BAR |
| BLSHP3B-E*-D | 3/8 | 10 | 0M-1 | 0 to 200 BAR | 40°C @ 200 BAR |
| BLSHP4B-E*-D | 1/2 | 12 | 0M-1 | 0 to 200 BAR | 40°C @ 200 BAR |
| BLSHP5B-E*-D | 3/4 | 17 | 0M-1 | 0 to 200 BAR | 40°C @ 200 BAR |
| BLSHP6B-E*-D | 1 | 22 | 0M-1 | 0 to 200 BAR | 40°C @ 200 BAR |
| BLSHP8B-E*-D | 1 ½ | 35 | 0M-2 | 0 to 200 BAR | 40°C @ 200 BAR |
| BLSHP9B-E*-D | 2 | 35 | 0M-2 | 0 to 200 BAR | 40°C @ 200 BAR |
A ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.
Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff and control applications, where they are often preferred to gate and globe valves, but they lack their fine control in throttling applications.
