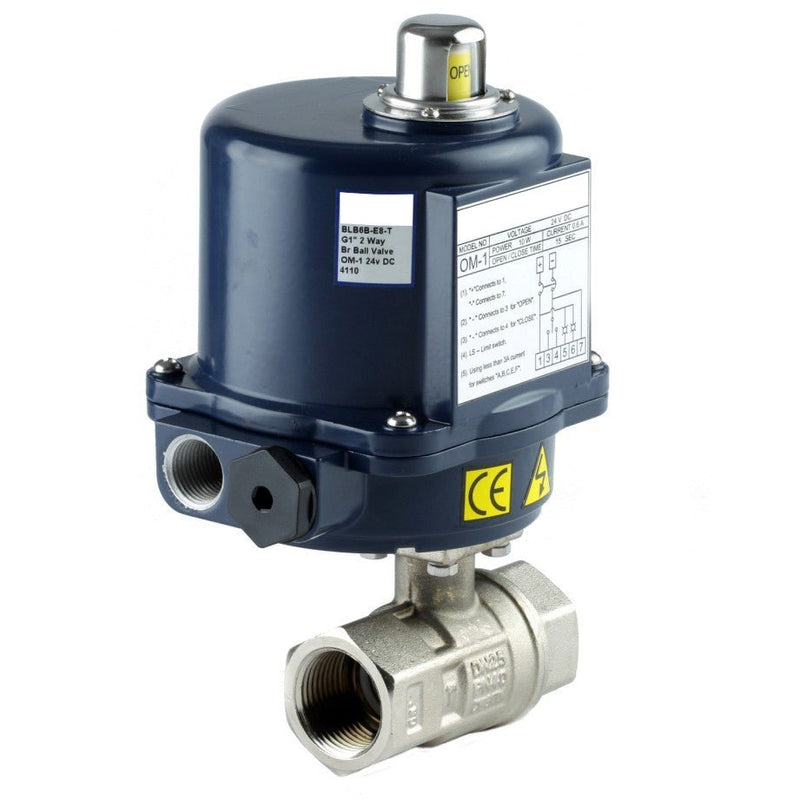

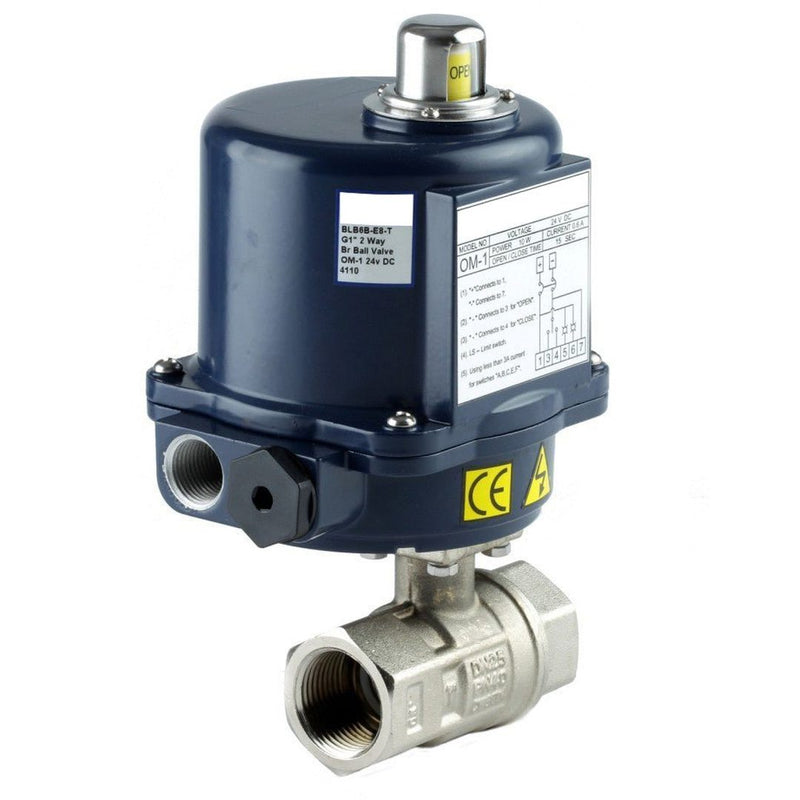

GO Ball Valve Actuated Electric Nickel Plated Brass 1/2" to 2" BLBE Range

SKU: BLB4B-E

$594

GO Ball Valve Actuated Electric Nickel Plated Brass  1/2" to 2" BLBE Range

2 way 2 piece full bore nickel plated brass ball valve with BSP threaded connections and an electric actuator (drive open, drive close). Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Pre drilled metric hole on ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. PTFE seats for temperatures up to 100°C. IP67 electric actuator with visual indicator and two extra limit switches.

Typical applications include water treatment, petrochemical and general industry.

  • Size 1/2" to 2" BSP
  • Body Nickel Plated Brass
  • Seat PTFE
  • Pressure 16 BAR
  • Temperature -10°C to 100°C
  • Actuation Electric

Nickel Plated Brass 2 way, 2 piece ball valve, with electric actuator. PTFE seat, FKM seals, 0M-1 electric actuator.Vacuum-16 BAR pressure range, media temp -20°C to 140°C.

Model Size(BSP) Orifice Size (mm) Actuator Media Pressure Media Temperature
BLB4B-E*-T 1/2 15 0M-1 Vacuum to 10 Bar -10°C to 100°C
BLB5B-E*-T 3/4 20 0M-1 Vacuum to 10 Bar -10°C to 100°C
BLB6B-E*-T 1 25 0M-1 Vacuum to 10 Bar -10°C to 100°C
BLB7B-E*-T 1 ¼ 32 0M-1 Vacuum to 10 Bar -10°C to 100°C
BLB8B-E*-T 1 ½ 40 0M-1 Vacuum to 10 Bar -10°C to 100°C
BLB9B-E*-T 2 50 0M-A Vacuum to 10 Bar -10°C to 100°C
