GO Ball Valve Actuated Electric PVC 1/2
Construction - GO Ball Valve Actuated Electric PVC 1/2
Dimensions - GO Ball Valve Actuated Electric PVC 1/2
Skip to product information
1 of 4

Commonly used in the aquaculture industry (sea water), chemical dosing, water treatment and pool filtration.

Available with BSP threaded or Solvent Weld connections (ANSI Standard designed to fit Schedule 40 & 80 pipe).

UV Stabilised PVC 2 way true union ball valve, with IP67 electric actuator.G2-1/2", 63mm bore, PTFE seat, EPDM seals, 0M-A electric actuator.Vacuum to 10 BAR pressure range, media temp ambient.

Model Size DN(mm) Actuator Media Pressure Media Temperature
BLP4B-E*-E 1/2 15 0M-1 -1 to 10 Bar Ambient
BLP5B-E*-E 3/4 20 0M-1 -1 to 10 Bar Ambient
BLP6B-E*-E 1 25 0M-1 -1 to 10 Bar Ambient
BLP7B-E*-E 1 ¼ 32 0M-1 -1 to 10 Bar Ambient
BLP8B-E*-E 1 ½ 40 0M-1 -1 to 10 Bar Ambient
BLP9B-E*-E 2 50 0M-1 -1 to 10 Bar Ambient
BLP10B-E*-E 2 ½ 65 0M-A -1 to 10 Bar Ambient
BLP11B-E*-E 3 80 0M-A -1 to 10 Bar Ambient
BLP12B-E*-E 4 100 0M-A -1 to 10 Bar Ambient

*Voltage Code 1 = 240v AC, 2 = 110v AC, 5 = 24v AC, 7 = 12v DC, 8 = 24v DC. For Solvent Weld Ends change the 'B' to an 'S'.

  • Size 1/2" to 4" BSP & Solvent Weld
  • Body UV stabalised PVC
  • Seat PTFE
  • Pressure 10 BAR
  • Temperature Ambient
  • Actuation Electric



    pagination here

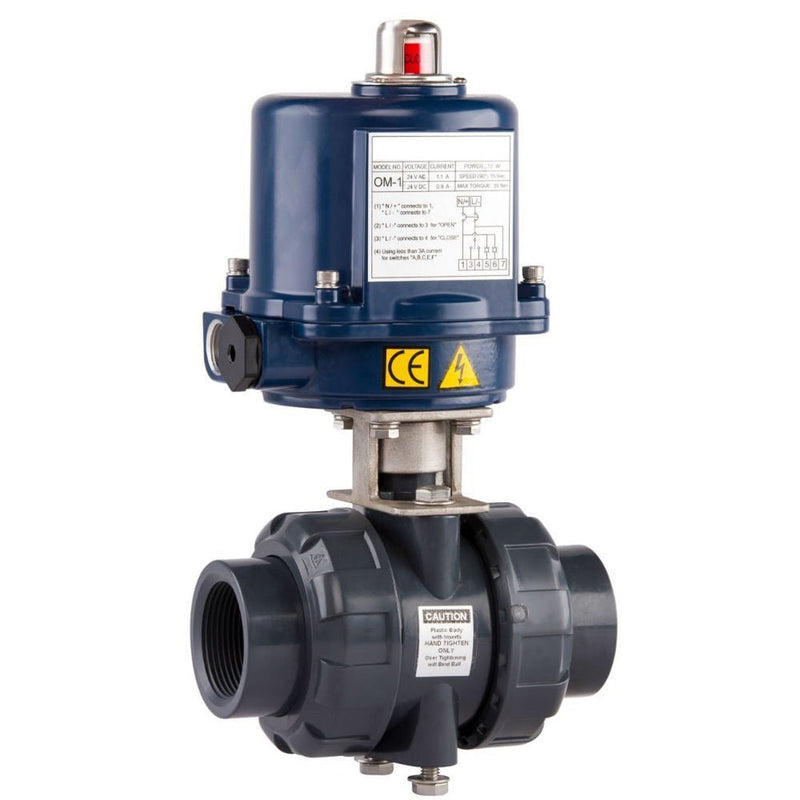

GO Ball Valve Actuated Electric PVC 1/2" to 4" BLPE Range

SKU: BLP4B-E

GO Ball Valve Actuated Electric PVC 1/2" to 4" BLPE Range

Regular price $578.00 AUD
Sale price $578.00 AUD Regular price
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Size

Other payment options

The Basics

2 way UV stabilised PVC ball valve with an electric actuator (drive open, drive close). Comes with PTFE (Teflon) seats and our unique double stem seal system (standard in EPDM but also available in Viton). Great for corrosive or chemical media where traditional material such as brass and stainless steel are not suitable. IP67 electric actuator with visual indicator and extra limit switches.

Commonly used in the aquaculture industry (sea water), chemical dosing, water treatment and pool filtration.

Available with BSP threaded or Solvent Weld connections (ANSI Standard designed to fit Schedule 40 & 80 pipe).

UV Stabilised PVC 2 way true union ball valve, with IP67 electric actuator.G2-1/2", 63mm bore, PTFE seat, EPDM seals, 0M-A electric actuator.Vacuum to 10 BAR pressure range, media temp ambient.

Model Size DN(mm) Actuator Media Pressure Media Temperature
BLP4B-E*-E 1/2 15 0M-1 -1 to 10 Bar Ambient
BLP5B-E*-E 3/4 20 0M-1 -1 to 10 Bar Ambient
BLP6B-E*-E 1 25 0M-1 -1 to 10 Bar Ambient
BLP7B-E*-E 1 ¼ 32 0M-1 -1 to 10 Bar Ambient
BLP8B-E*-E 1 ½ 40 0M-1 -1 to 10 Bar Ambient
BLP9B-E*-E 2 50 0M-1 -1 to 10 Bar Ambient
BLP10B-E*-E 2 ½ 65 0M-A -1 to 10 Bar Ambient
BLP11B-E*-E 3 80 0M-A -1 to 10 Bar Ambient
BLP12B-E*-E 4 100 0M-A -1 to 10 Bar Ambient

*Voltage Code 1 = 240v AC, 2 = 110v AC, 5 = 24v AC, 7 = 12v DC, 8 = 24v DC. For Solvent Weld Ends change the 'B' to an 'S'.

  • Size 1/2" to 4" BSP & Solvent Weld
  • Body UV stabalised PVC
  • Seat PTFE
  • Pressure 10 BAR
  • Temperature Ambient
  • Actuation Electric
