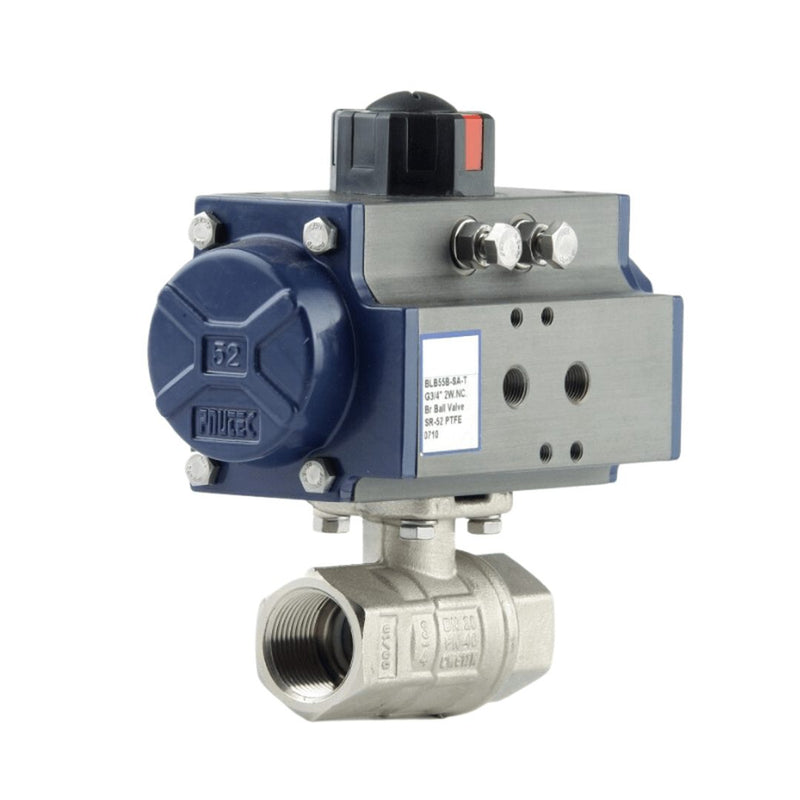

GO Ball Valve Actuated Spring Return Pneumatic Nickel Plated Brass 1/2" to 2" BLBSR Range

SKU: BLB4B-SR

$187

GO Ball Valve Actuated Spring Return Pneumatic Nickel Plated Brass  1/2" to 2" BLBSR Range

2 way 2 piece full bore nickel plated brass ball valve with BSP threaded connections and a spring return pneumatic actuator (rack and pinion). Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Pre drilled metric hole on ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. PTFE seats for temperatures up to 100°C. Anodised aluminium spring return pneumatic actuator.

Typical applications include water treatment, petrochemical and general industry.

  • Size 1/2" to 2" BSP
  • Body Nickel Plated Brass
  • Seat PTFE
  • Pressure 16 BAR
  • Temperature -10°C to 100°C
  • Actuation Spring Return Pneumatic

Nickel Plated Brass 2 way, 2 piece normally closed ball valve, spring return. PTFE seat, FKM seals, SR50.Vacuum-16 BAR pressure range, media temp -20°C to 140°C.

Model Size (BSP) Orifice Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure
BLB4B-SR-T 1/2 15 SR50 Vacuum to 16 BAR -10°C to 100°C 6 to 8 BAR
BLB5B-SR-T 3/4 20 SR50 Vacuum to 16 BAR -10°C to 100°C 6 to 8 BAR
BLB6B-SR-T 1 25 SR50 Vacuum to 16 BAR -10°C to 100°C 6 to 8 BAR
BLB7B-SR-T 1 ¼ 32 SR63 Vacuum to 16 BAR -10°C to 100°C 6 to 8 BAR
BLB8B-SR-T 1 ½ 40 SR75 Vacuum to 16 BAR -10°C to 100°C 6 to 8 BAR
BLB9B-SR-T 2 50 SR88 Vacuum to 16 BAR -10°C to 100°C 6 to 8 BAR
