GO Ball Valve V Port Actuated Double Acting Pneumatic 316 Stainless 3 Piece Full Bore 1/2" to 4" BLVDA Range

$226.00


or make 4 interest-free payments of $56.50 AUD fortnightly with Afterpay More info

Maximum quantity available reached.

Product Description

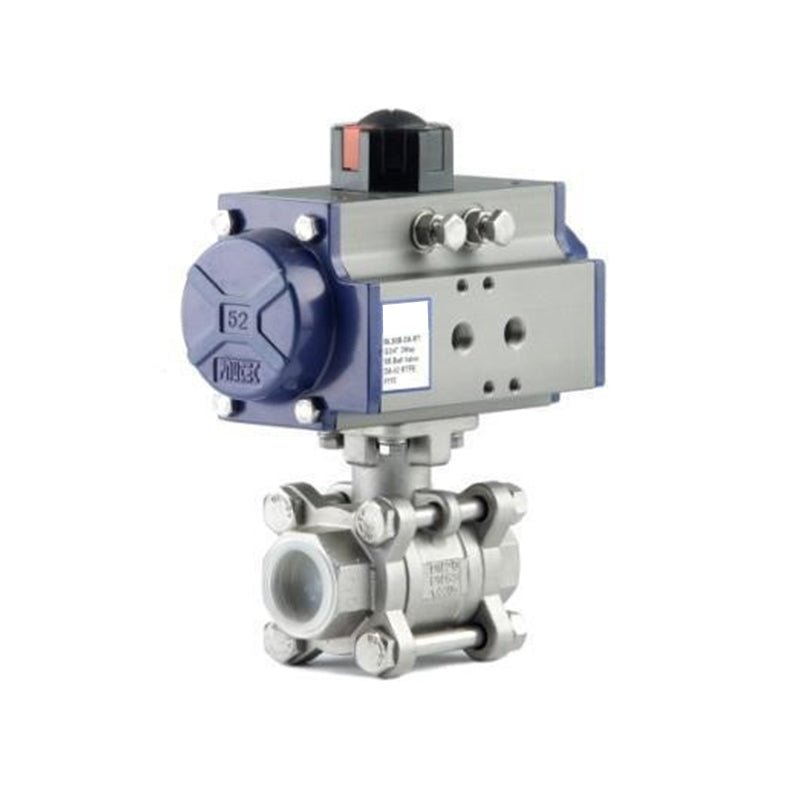

GO Ball Valve V Port Actuated Double Acting Pneumatic 316 Stainless 3 Piece Full Bore 1/2" to 4" BLVDA Range

High performance 3 piece full bore 316 Stainless Steel V Port Ball Valve with BSP threaded connections and a double acting pneumatic actuator. Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Pre drilled metric hole on ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Anodised aluminium spring return pneumatic actuator which allows a fail safe position if air is lost.

Typical applications include water treatment, chemical, marine, petrochemical and general industry.

  • Size 1/2" to 4" BSP
  • Body 316 Stainless Steel 3 piece
  • Seat Reinforced PTFE
  • Pressure 70 BAR
  • Temperature -20°C to 180°C
  • Actuation Double Acting Pneumatic



Sku: BLV4B-DA
