GO Butterfly Valve Actuated Double Acting Pneumatic 316 SS Body 2" to 12" BFSDA Range

SKU: BFS50-DA

$451

GO Butterfly Valve Actuated Double Acting Pneumatic 316 SS Body 2" to 12" BFSDA Range

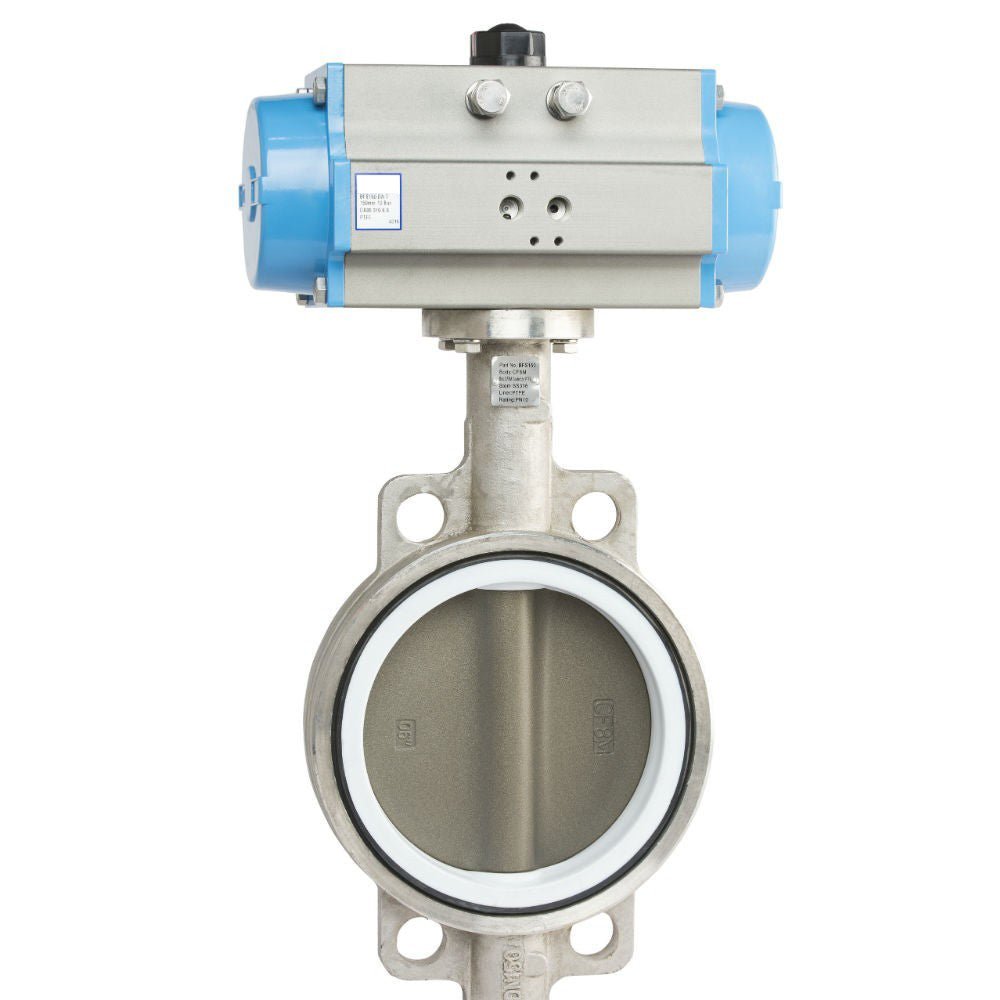

The BFS series of butterfly valve has a 316 Stainless Steel body, PTFE coated 316 S.S disc and a PTFE coated EPDM seat making them suited to a wide range of high end applications. These wafer butterfly valves will fit all standard flanges and are operated by a high quality anodised aluminium double acting pneumatic actuator (rack and pinion design). The unique bonded cartridge design gives them a longer life span, allow vacuum to be run through them and makes them replaceable if ever the need should arise.

Common applications include food industry, chemicals, pharmaceuticals and other industrial applications. If sizes above 300mm are required please contact us.

  • Size 50mm to 300mm
  • Body 316 Stainless Steel
  • Seat PTFE coated EPDM
  • Disc PTFE coated 316 Stainless Steel
  • Pressure 16 BAR
  • Actuation Double Acting Pneumatic
Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure
BFS50-DA-T 50 DA63 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR
BFS65-DA-T 65 DA75 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR
BFS80-DA-T 80 DA75 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR
BFS100-DA-T 100 DA88 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR
BFS125-DA-T 125 DA100 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR
BFS150-DA-T 150 DA115 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR
BFS200-DA-T 200 DA125 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR
BFS250-DA-T 250 DA160 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR
BFS300-DA-T 300 DA180 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR
