GO Butterfly Valve Actuated Double Acting Pneumatic CI Body 316 SS Disc EPDM Liner 2" to 24" BFDDA Range

$220.00


or make 4 interest-free payments of $55.00 AUD fortnightly with Afterpay More info

Maximum quantity available reached.

Product Description

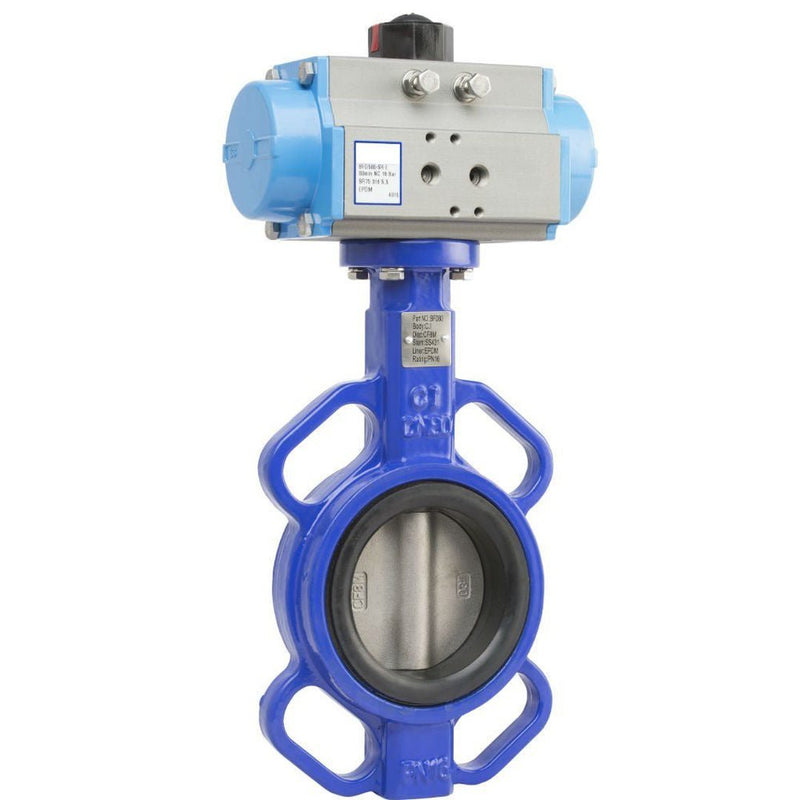

GO Butterfly Valve Actuated Double Acting Pneumatic CI Body 316 SS Disc EPDM Liner 2" to 24" BFDDA Range

The BFD series has a cast iron body, 316 S.S disc, EPDM seat and a double acting pneumatic actuator making it suited to a wide range of industrial applications. These wafer butterfly valves will fit all standard flanges and are operated by a high quality double acting (rack and pionion design) anodised aluminium pneumatic actuator.

The unique bonded catridge design of the butterfly valve gives it a longer life span, allows vacuum to be run through it and enables the seat to be replaceable if ever the need should arise. Designed & manufactured in accordance with API609, inspected and tested in accordance with API598.

Common applications include water trucks, irrigation, irrigation and other industrial applications. If sizes above 600mm or extension shafts are required please contact us.

  • Size 50mm to 600mm
  • Body FBE coated Cast Iron
  • Seat EPDM
  • Disc 316 Stainless Steel
  • Pressure 16 BAR
  • Actuation Double Acting Pneumatic
Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure
BFD50-DA-E 50 DA50 Vacuum to 16 BAR -10°C to 120°C 6 to 8 BAR
BFD65-DA-E 65 DA50 Vacuum to 16 BAR -10°C to 120°C 6 to 8 BAR
BFD80-DA-E 80 DA63 Vacuum to 16 BAR -10°C to 120°C 6 to 8 BAR
BFD100-DA-E 100 DA75 Vacuum to 16 BAR -10°C to 120°C 6 to 8 BAR
BFD125-DA-E 125 DA75 Vacuum to 16 BAR -10°C to 120°C 6 to 8 BAR
BFD150-DA-E 150 DA88 Vacuum to 16 BAR -10°C to 120°C 6 to 8 BAR
BFD200-DA-E 200 DA115 Vacuum to 16 BAR -10°C to 120°C 6 to 8 BAR
BFD250-DA-E 250 DA125 Vacuum to 16 BAR -10°C to 120°C 6 to 8 BAR
BFD300-DA-E 300 DA145 Vacuum to 16 BAR -10°C to 120°C 6 to 8 BAR
BFD350-DA-E 350 DA160 Vacuum to 10 BAR -10°C to 120°C 6 to 8 BAR
BFD400-DA-E 400 DA180 Vacuum to 10 BAR -10°C to 120°C 6 to 8 BAR
BFD450-DA-E 450 DA200 Vacuum to 10 BAR -10°C to 120°C 6 to 8 BAR
BFD500-DA-E 500 DA240 Vacuum to 10 BAR -10°C to 120°C 6 to 8 BAR
BFD600-DA-E 600 DA270 Vacuum to 10 BAR -10°C to 120°C 6 to 8 BAR

Sku: BFD50-DA
