GO CI Body 316 SS Disc EPDM Liner BFLDA Butterfly Valves Actuated Double Acting Pneumatic Lugged

SKU: BFL50-DA

GO CI Body 316 SS Disc EPDM Liner BFLDA Butterfly Valves Actuated Double Acting Pneumatic Lugged

$215.00 AUD
$215.00 AUD
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Size
Seat
Flange

Other payment options

GO CI Body 316 SS Disc EPDM Liner BFLDA Butterfly Valves Actuated Double Acting Pneumatic Lugged

Overview

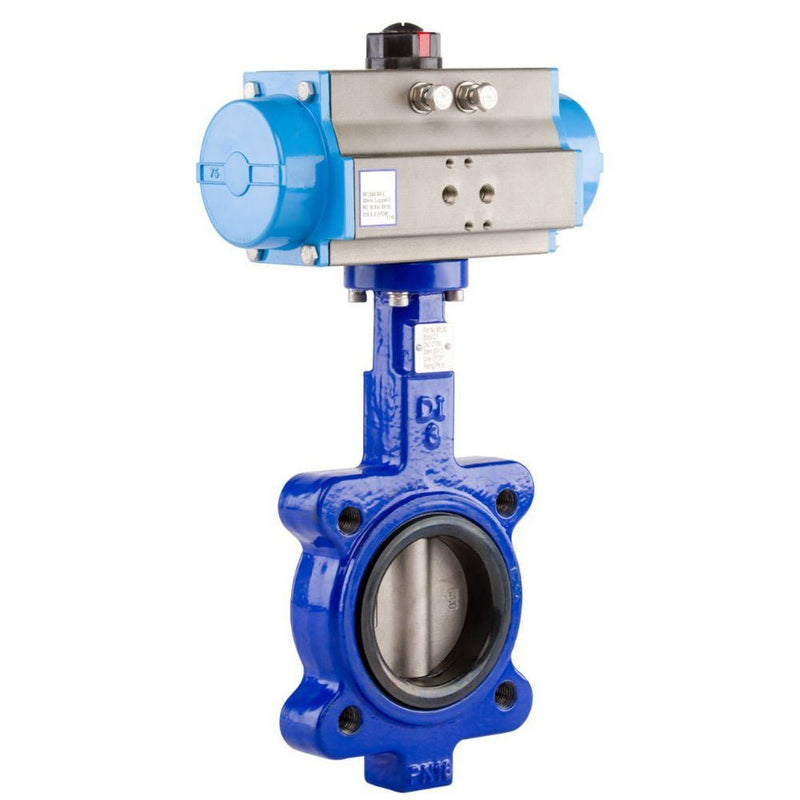

The BFL series of lugged butterfly valves (table E standard) have a cast iron body, 316 S.S disc and an EPDM seat making them suited to a wide range of general water and industrial applications. They are operated by either a high quality anodised aluminium double acting (rack and pinion design) pneumatic actuator. The unique bonded catridge design of the valve gives it a longer life span, allows vacuum to be run through it and makes it replaceable if ever the need should arise.

      Details

      Common applications include water trucks, irrigation, cement hoppers and other industrial applications. If sizes above 300mm, different flange standards or different seat materials are required please contact us.

      Specifications

    • Size 50mm to 300mm
    • Body FBE coated Cast Iron
    • Seat EPDM
    • Disc 316 Stainless Steel
    • Pressure 16 BAR
    • Actuation Double Acting Pneumatic
      • Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure
      BFL50-DA-E 50 DA50 Vacuum to 16 BAR -20°C to 120°C 6 to 8 BAR
      BFL65-DA-E 65 DA50 Vacuum to 16 BAR -20°C to 120°C 6 to 8 BAR
      BFL80-DA-E 80 DA63 Vacuum to 16 BAR -20°C to 120°C 6 to 8 BAR
      BFL100-DA-E 100 DA75 Vacuum to 16 BAR -20°C to 120°C 6 to 8 BAR
      BFL125-DA-E 125 DA75 Vacuum to 16 BAR -20°C to 120°C 6 to 8 BAR
      BFL150-DA-E 150 DA88 Vacuum to 16 BAR -20°C to 120°C 6 to 8 BAR
      BFL200-DA-E 200 DA115 Vacuum to 16 BAR -20°C to 120°C 6 to 8 BAR
      BFL250-DA-E 250 DA125 Vacuum to 16 BAR -20°C to 120°C 6 to 8 BAR
      BFL300-DA-E 300 DA145 Vacuum to 16 BAR -20°C to 120°C 6 to 8 BAR
