GO Butterfly Valve Manual 316 SS Body PTFE Coated 316 SS Disc PTFE Coated EPDM Liner 2
Construction - GO Butterfly Valve Manual 316 SS Body PTFE Coated 316 SS Disc PTFE Coated EPDM Liner 2
Dimensions - GO Butterfly Valve Manual 316 SS Body PTFE Coated 316 SS Disc PTFE Coated EPDM Liner 2
  • GO Butterfly Valve Manual 316 SS Body PTFE Coated 316 SS Disc PTFE Coated EPDM Liner 2" to 12" BFS Range
  • Construction - GO Butterfly Valve Manual 316 SS Body PTFE Coated 316 SS Disc PTFE Coated EPDM Liner 2" to 12" BFS Range
  • Dimensions - GO Butterfly Valve Manual 316 SS Body PTFE Coated 316 SS Disc PTFE Coated EPDM Liner 2" to 12" BFS Range
1 4

Common applications include food industry, chemicals, pharmaceuticals and other industrial applications.

If sizes above 300mm are required please contact us.



Model Size (mm) Pressure Range Temperature Square drive size ISO Mtg
BFS50-L-E 50 0 to 16 Bar -10°C to 120°C 9mm F05
BFS65-L-E 65 0 to 16 Bar -10°C to 120°C 9mm F05
BFS80-L-E 80 0 to 16 Bar -10°C to 120°C 9mm F05
BFS100-L-E 100 0 to 16 Bar -10°C to 120°C 11mm F07
BFS125-L-E 125 0 to 16 Bar -10°C to 120°C 14mm F07
BFS150-L-E 150 0 to 16 Bar -10°C to 120°C 14mm F07
BFS200-L-E 200 0 to 16 Bar -10°C to 120°C 17mm F10
BFS250-L-E 250 0 to 16 Bar -10°C to 120°C 22mm F10
BFS300-L-E 300 0 to 16 Bar -10°C to 120°C 22mm F10
  • Size 50mm to 300mm
  • Body 316 Stainless Steel
  • Seat PTFE coated EPDM
  • Disc PTFE coated 316 Stainless Steel
  • Pressure 16 BAR
  • Actuation Lever or Gearbox
  • Handle 304 Stainless Steel

GO Butterfly Valve Manual 316 SS Body 2" to 12" BFS Range

SKU: BFS50-L

GO Butterfly Valve Manual 316 SS Body 2" to 12" BFS Range

$319.00 AUD
$319.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Size

Other payment options

The Basics

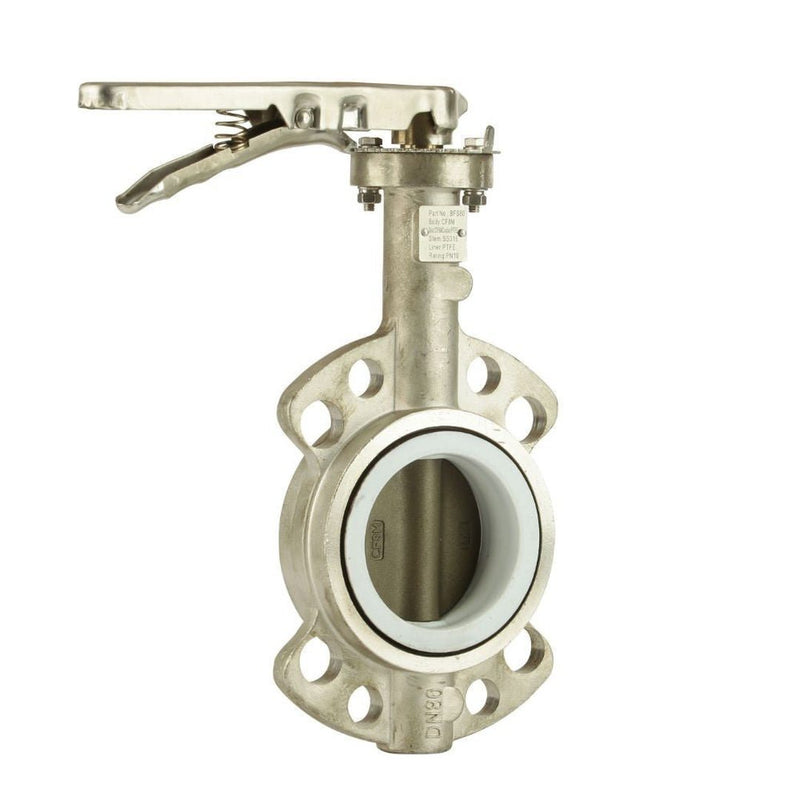

The BFS series of butterfly valve has a 316 Stainless Steel body, PTFE coated 316 S.S disc and a PTFE coated EPDM seat making them suited to a wide range of high end applications. These wafer butterfly valves will fit all standard flanges and are operated by either a lever or gear box. The unique bonded cartridge design gives them a longer life span, allow vacuum to be run through them and makes them replaceable if ever the need should arise.



Common applications include food industry, chemicals, pharmaceuticals and other industrial applications.

If sizes above 300mm are required please contact us.



Model Size (mm) Pressure Range Temperature Square drive size ISO Mtg
BFS50-L-E 50 0 to 16 Bar -10°C to 120°C 9mm F05
BFS65-L-E 65 0 to 16 Bar -10°C to 120°C 9mm F05
BFS80-L-E 80 0 to 16 Bar -10°C to 120°C 9mm F05
BFS100-L-E 100 0 to 16 Bar -10°C to 120°C 11mm F07
BFS125-L-E 125 0 to 16 Bar -10°C to 120°C 14mm F07
BFS150-L-E 150 0 to 16 Bar -10°C to 120°C 14mm F07
BFS200-L-E 200 0 to 16 Bar -10°C to 120°C 17mm F10
BFS250-L-E 250 0 to 16 Bar -10°C to 120°C 22mm F10
BFS300-L-E 300 0 to 16 Bar -10°C to 120°C 22mm F10
  • Size 50mm to 300mm
  • Body 316 Stainless Steel
  • Seat PTFE coated EPDM
  • Disc PTFE coated 316 Stainless Steel
  • Pressure 16 BAR
  • Actuation Lever or Gearbox
  • Handle 304 Stainless Steel
View full details
