Details

Common applications include water trucks, irrigation, cement hoppers and other industrial applications.

If sizes above 600mm double flanged is used. Please contact us for details.

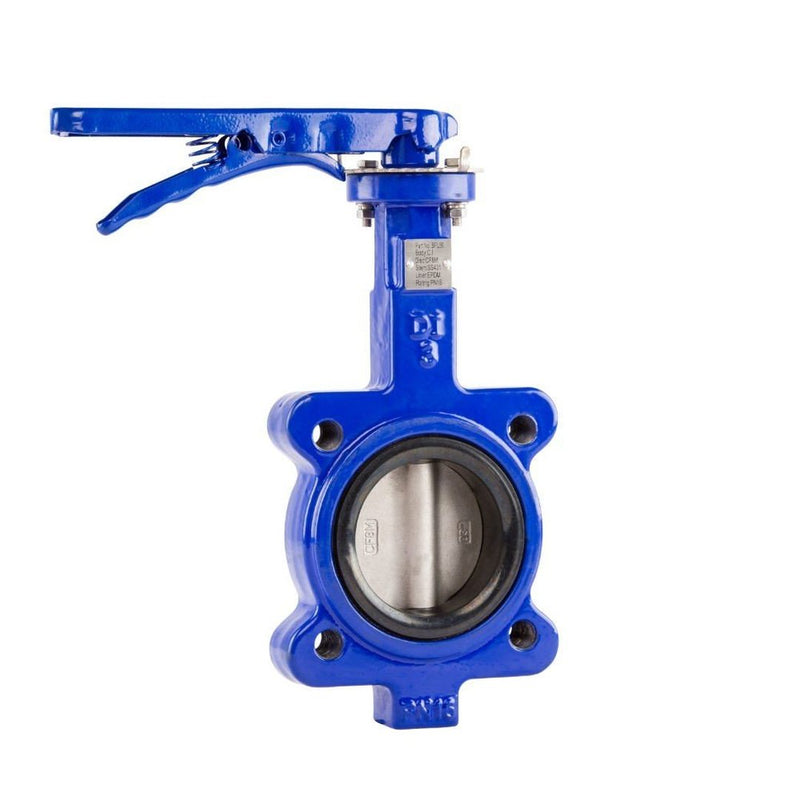

GO CI Body 316 SS Disc EPDM Liner BFL Butterfly Valves Manual Lugged

Name: GO CI Body 316 SS Disc EPDM Liner BFL Butterfly Valves Manual Lugged
Brand: Process Systems
SKU: BFL50-L
Price: 99.0 AUD
Availability: InStock

Overview

The BFL series has a lugged table E cast iron body, 316 S.S disc and an EPDM seat making them suited to a wide range of general water applications. These are operated by either a lever or gear box. The unique bonded cartridge design gives them a longer life span, allow vacuum to be run through them and makes them replaceable if ever the need should arise.

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Read our complete warranty terms & conditions here.

All our online payment methods are secured.

Specifications

Size 50mm to 300mm

Body FBE coated Cast Iron

Seat EPDM

Disc 316 Stainless Steel

Pressure 16 BAR

Actuation Lever or Gearbox

Model	Size (mm)	Pressure Range	Temperature	Square drive size	ISO Mtg
BFL50-L-E	50	0 to 16 Bar	-10°C to 120°C	9mm	F05
BFL65-L-E	65	0 to 16 Bar	-10°C to 120°C	9mm	F05
BFL80-L-E	80	0 to 16 Bar	-10°C to 120°C	9mm	F05
BFL100-L-E	100	0 to 16 Bar	-10°C to 120°C	11mm	F07
BFL125-L-E	125	0 to 16 Bar	-10°C to 120°C	14mm	F07
BFL150-L-E	150	0 to 16 Bar	-10°C to 120°C	14mm	F07
BFL200-L-E	200	0 to 16 Bar	-10°C to 120°C	17mm	F10
BFL250-L-E	250	0 to 16 Bar	-10°C to 120°C	22mm	F10
BFL300-L-E	300	0 to 16 Bar	-10°C to 120°C	22mm	F10
