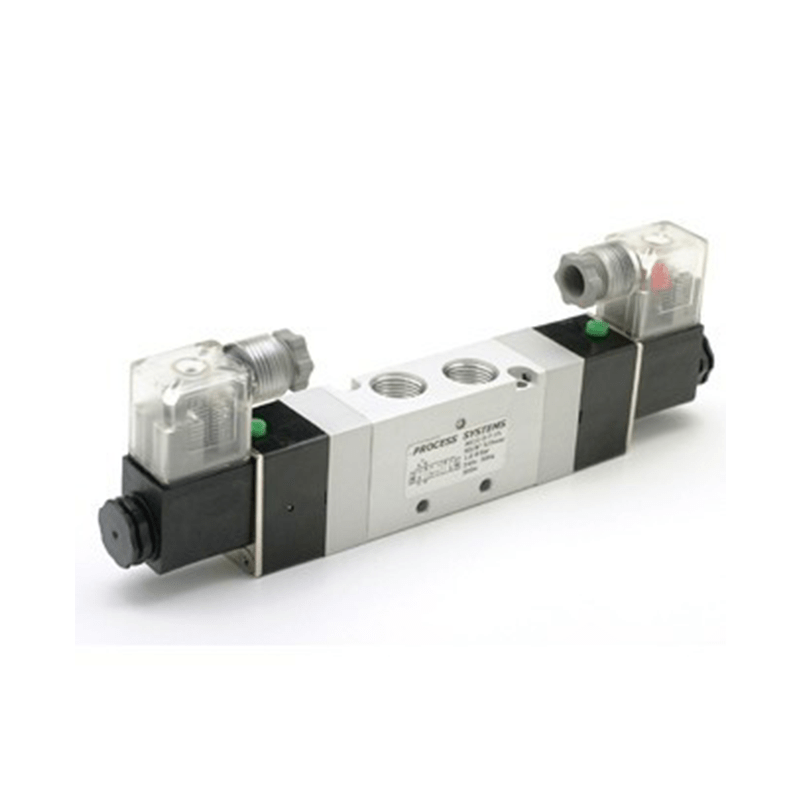

GO Double Solenoid Valve 1/4" to 1/2" A611 5 Way 3 Position Range

SKU: A611-3-7

$319

GO Double Solenoid Valve 1/4" to 1/2" A611 5 Way 3 Position Range

Aluminium 5 way 3 position, closed centres differential solenoid/solenoid valve.G1/4", 7mm orifice, 304 SS operator, copper shading ring, NBR seat, man o/ride.1.5-8 BAR pressure range, media temp 5°C to 80°C.Coil Class F insulation, 4.8 Watts, IP65 protection

  • Size 1/4" to 1/2" BSP
  • Function 5 way 3 position (closed centres) double solenoid with manual override
  • Valve Operation Servo Assisted
  • Body Aluminium
  • Seat NBR
  • Pressure Range 1.5 to 8 BAR
  • Media Air

5 way 3 position solenoid valve (solenoid both ends) suitable for use in controlling air actuators or cylinders. The sprung centred position has closed centres so no air will be exhausted in this position (will keep your actuator or cylinder locked in its last position). Standard features include manual override, led indicator plug (IP65), fully encapsulated low wattage coil.

Model Port Size (BSP) Orifice ømm CV Pressure Media Temperature Weight Kg Coil Specifications
A611-2-7-*NM 1/4 7 2 1.5 to 8 Bar 5°C to 80°C 0.35 SC-A1
5 Watts
6 Volt Amps
Class H Insulation
100% Ed
