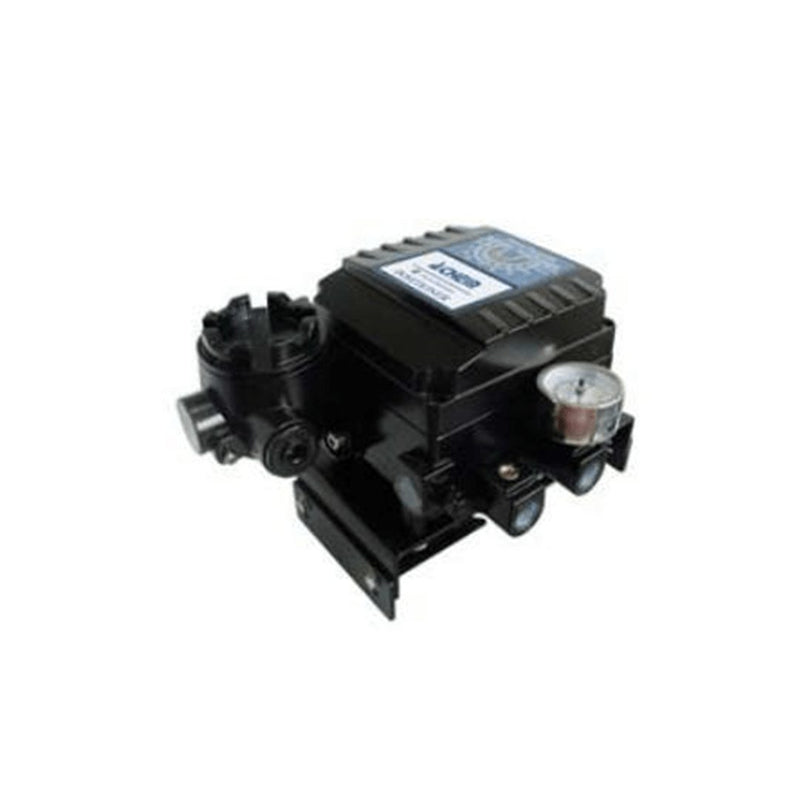

GO Electro Pneumatic Positioner 4-20mA input/output POS-A
Dimensions - GO Electro Pneumatic Positioner 4-20mA input/output POS-A
Skip to product information
1 of 3



Input Signal 4 to 20mA
Impedance 250 +/- 15 Ω
Supply Pressure 1.4 to 7kgf/cm² (20~100psi)
Air Connection G1/4”
Gauge Connection G1/8”
Conduit G1/2”
Weather Protection IP66
Ambient Temperature -20°C to 70°C
Hysteresis 1.50%
Sensitivity 0.40%
Air Consumption 3 LPM @1.5 BAR
Flow Capactiy 8 LPM
Material Die Cast Aluminium
Weight 2.8kg
  • Input Signal 4 to 20mA
  • Output Signal 4 to 20mA
  • Body Aluminium
  • IP Rating IP66

GO Electro Pneumatic Positioner 4-20mA input/output POS-A

SKU: POS-A

GO Electro Pneumatic Positioner 4-20mA input/output POS-A

Regular price $1,375.00 AUD
Sale price $1,375.00 AUD Regular price
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.

Other payment options

The Basics

GO Electro Pneumatic Positioner 4-20mA input/output POS-A

Aluminium die cast body electro pneumatic positioner. Allows accurate modulation of pneumatic actuators. Namur interface and suits up to 180ccm volume actuator with a supply pressure of 1.5 to 7 BAR.



Input Signal 4 to 20mA
Impedance 250 +/- 15 Ω
Supply Pressure 1.4 to 7kgf/cm² (20~100psi)
Air Connection G1/4”
Gauge Connection G1/8”
Conduit G1/2”
Weather Protection IP66
Ambient Temperature -20°C to 70°C
Hysteresis 1.50%
Sensitivity 0.40%
Air Consumption 3 LPM @1.5 BAR
Flow Capactiy 8 LPM
Material Die Cast Aluminium
Weight 2.8kg
  • Input Signal 4 to 20mA
  • Output Signal 4 to 20mA
  • Body Aluminium
  • IP Rating IP66
