FAR-17.5 17500L Safe Fill Level Single Wall Tank from GO Industrial
FAR-17.5 17500L Safe Fill Level Single Wall Tank from GO Industrial
FAR12 FAR Single Wall Tank fitted with Adam by Piusi AF3000 Pump and iFUEL Lite Electronic Fluids Management System
  • FAR-17.5 17500L Safe Fill Level Single Wall Tank from GO Industrial
  • FAR-17.5 17500L Safe Fill Level Single Wall Tank from GO Industrial
  • FAR12 FAR Single Wall Tank fitted with Adam by Piusi AF3000 Pump and iFUEL Lite Electronic Fluids Management System
1 4
  • GO Data Sheet Tank FAR
  • GO TANK FAR-4.5 GA Drawing
  • GO TANK FAR-8.5 GA Drawing
  • GO TANK FAR-12 GA Drawing
  • GO TANK FAR-17.5 GA Drawing
CODE CAPACITY
(litres)		 SAFE FILL LEVEL
(litres)		 LENGTH
(mm)		 WIDTH
(mm)		 HEIGHT
(mm)		 WEIGHT
(kg)
FAR-4.5 4,830 4,500 2,895 1,800 1,935 668
FAR-8.5 8,948 8,500 3,669 2,050 2,185 850
FAR-12 12,630 12,000 4,677 2,086 2,229 1,018
FAR-17.5 18,433 17,500 6,569 2,050 2,185 1,463

    APPROVALS

    • Designed and approved to AS1692.
    • NOTE - to be installed in accordance with AS1940-2017 and State Environmental requirements

    TANK DESIGN

    • Mild Steel Q234B 3mm
    • Robust Cylindrical Manufacture designed to handle our unique conditions
    • Heavy Duty Cradle Assembly ready to fasten to a concrete pad
    • Full under tank visibility for ongoing maintenance inspections
    • Crane Lifting Lugs

    PAINT

    • White, Two Pack Epoxy Marine Grade

    FILL

    • DN50 (2") Fill Line with Camlock Dust Cap / Non Return Valve / Isolation Valve
    • Nozzle Fill option with dedicated Fill / Dip Point.
    • Dip Point with Calibrated Anodised Aluminium Dipstick
    • Optional Overfill Alarm is available

    OUTLET

    • DN50 (2") Gravity Outlet with Isolation Valve

    ACCESS

    • Galvanised stairway and platform assembly for access to the tank dip point.

    VENT

    • DN50 (2') Galvanised Vent Pipe with Updraft Vent Assembly.
    • Option for Filtered Breather Assembly

    STATUTORY DECALS

    • supplied with all required Statutory Decals

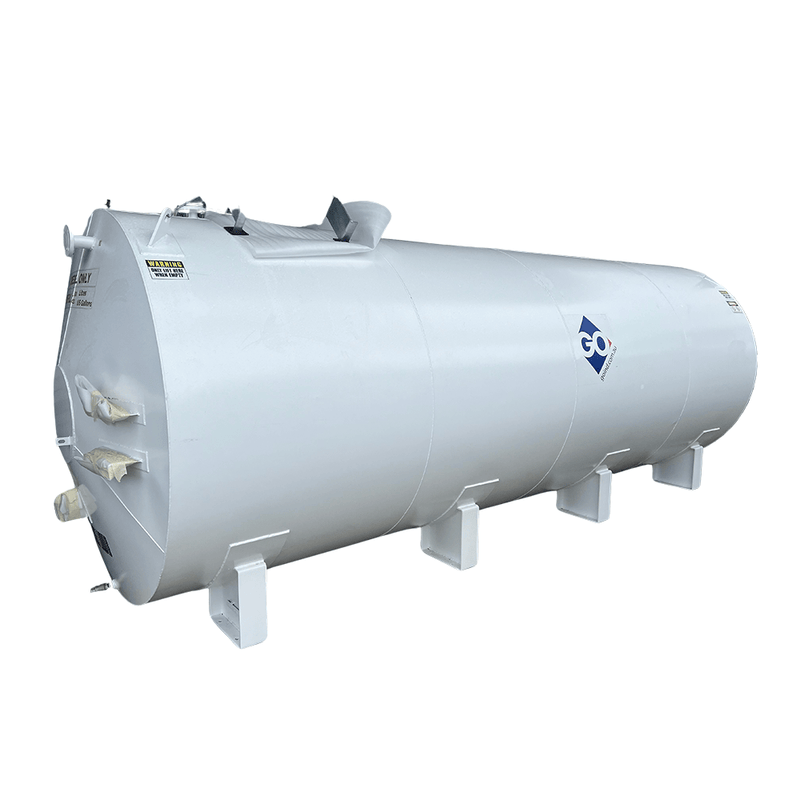

GO FAR Single Wall Tank Range

SKU:

GO FAR Single Wall Tank Range

Safe Fill Level

The GO FAR Single Wall Tank range is designed as an economical bulk fuel, lubricants or waste oil tank for Agriculture, Construction and Industrial applications.  This innovative yet cost effective single wall tank range is manufactured to the strictest quality standards and meets the design and fabrication requirements of AS1692.  The range includes 4,500L | 8,500L | 12,000L | 17,500L Safe Fill Level tanks.  For quick deployment we carry these ex stock, subject of course to prior sale.
