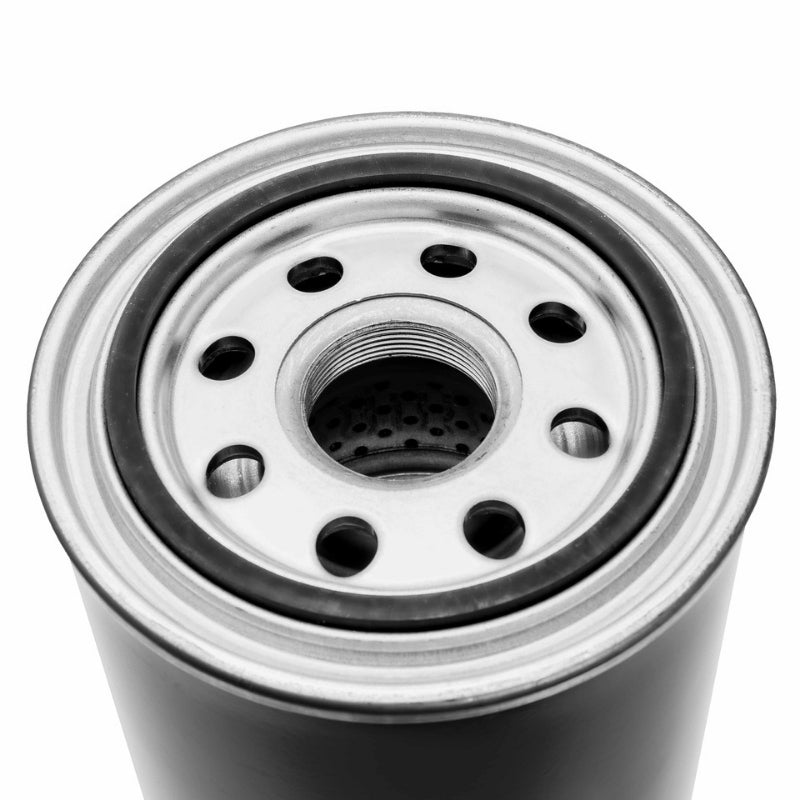

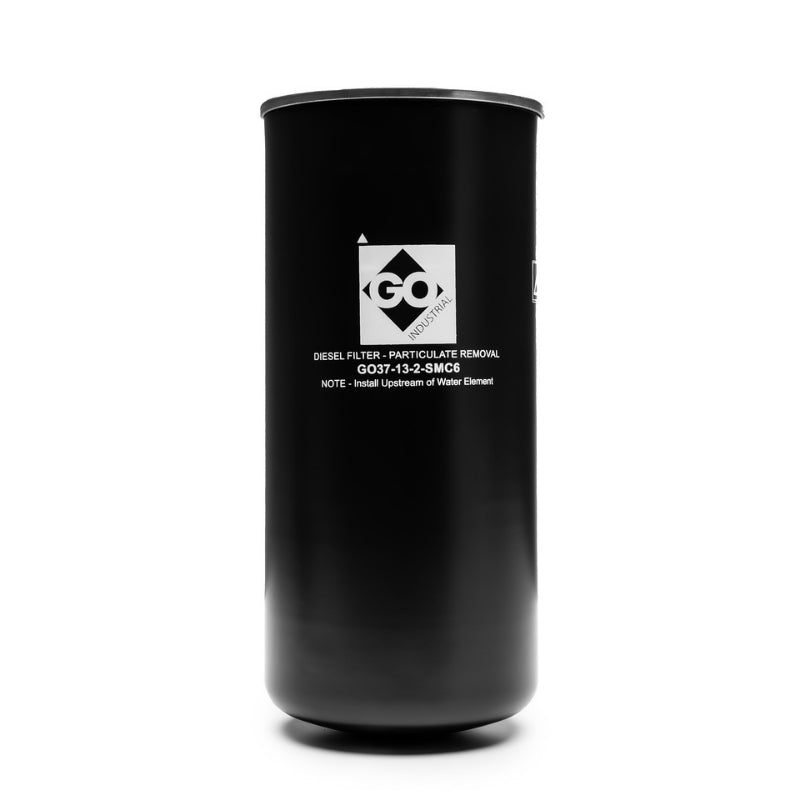

GO FILL FILTER Element Diesel Particulate 6um
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Designed for robust performance in demanding diesel dispensing systems, the GO FILL FILTER Element 6um Particulate (GO37-13-2-SMX6) provides high-efficiency filtration for Diesel.
Featuring advanced 6um glass fibre filter media, this element effectively captures contaminants to protect critical components in systems handling diesel, petrol, hydraulic oils, and lubrication fluids.
Engineered for use with the GO FILL GO2214-047 Filter Head, this spin-on element combines high dirt-holding capacity with low pressure drop in a durable, easy-to-service format suitable for a wide range of industrial and mobile applications.
The construction, including NBR seals, offers broad compatibility with common petroleum-based fluids. (For fluids with unique compositions or additives, verification of compatibility is recommended).
How it Works
When installed on the GO FILL GO2214-047 filter head, the GO FILL Filter Element (GO37-13-2-SMX6) directs incoming fluid through its external surface and into the high-efficiency 6um glass fibre media. As the fluid flows inward, particulate contaminants are trapped within the depth of the filter material. Clean, filtered diesel fluid then exits through the element's central core, returning to the system protected from harmful particles.
Features
Features
- High-efficiency 6 µm filtration (ß₇(c) ≥ 200)
- Advanced glass fiber (Sm-x) filter media
- High dirt-holding capacity (Surface Area: 13500 cm²)
- Compact, easy-to-service spin-on design
- Optimised flow for minimal pressure drop
- Durable steel housing
- Reliable Perbunan (NBR) sealing
- High collapse pressure resistance (≥ 5 bar)
- Broad fluid compatibility (oils, diesel, hydrocarbons)
Specifications
- Type: GO37-13-2-SMX6
- Filtration Rating: 6 µm (ß₇(c) ≥ 200 per ISO 16889)
- Filter Media: Glass Fiber (Sm-x)
- Nominal Pressure: 16 bar
- Collapse Pressure: ≥ 5 bar
- Seal Material: Perbunan (NBR)
- Housing Material: Steel
- Temperature Range: -10°C to +120°C
- Bypass Valve: None (Standard)
- Filter Surface Area: 13500 cm²
Dimensions
- Height (F): 310mm
- Lip Width (Ø A): 140mm
- Seal Diameter (Ø B): 111mm
- Outer Diameter (Ø E): 136mm
- Thread (D): 1 1/2"-16 UN-2B
Shipping & Returns
Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.
30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.
Need help speccing your kit?
Talk to a real specialist on our team. We'll match the right unit to your daily volume and the materials you spray most.
