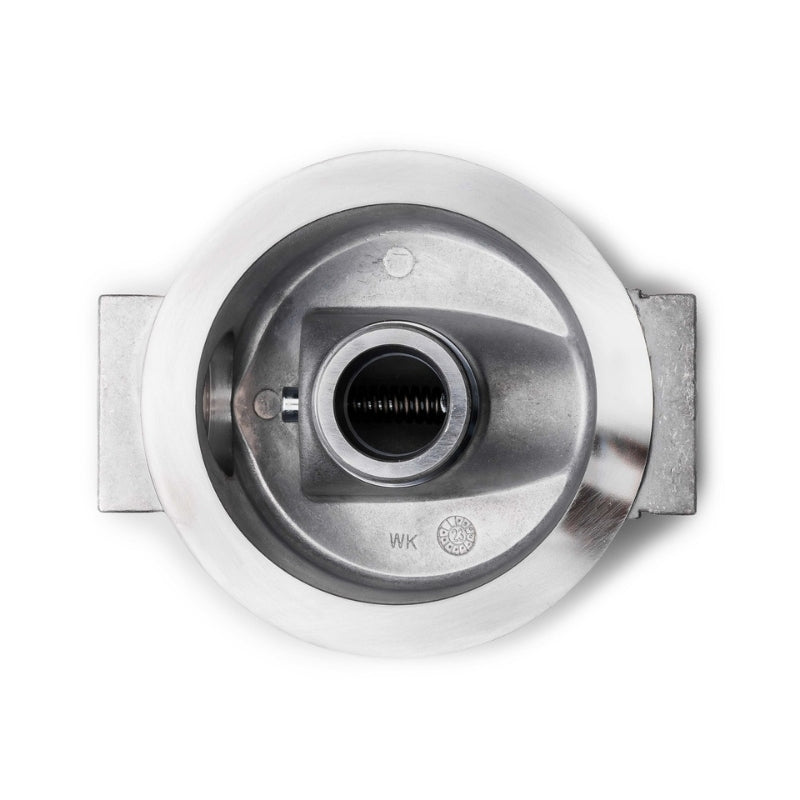

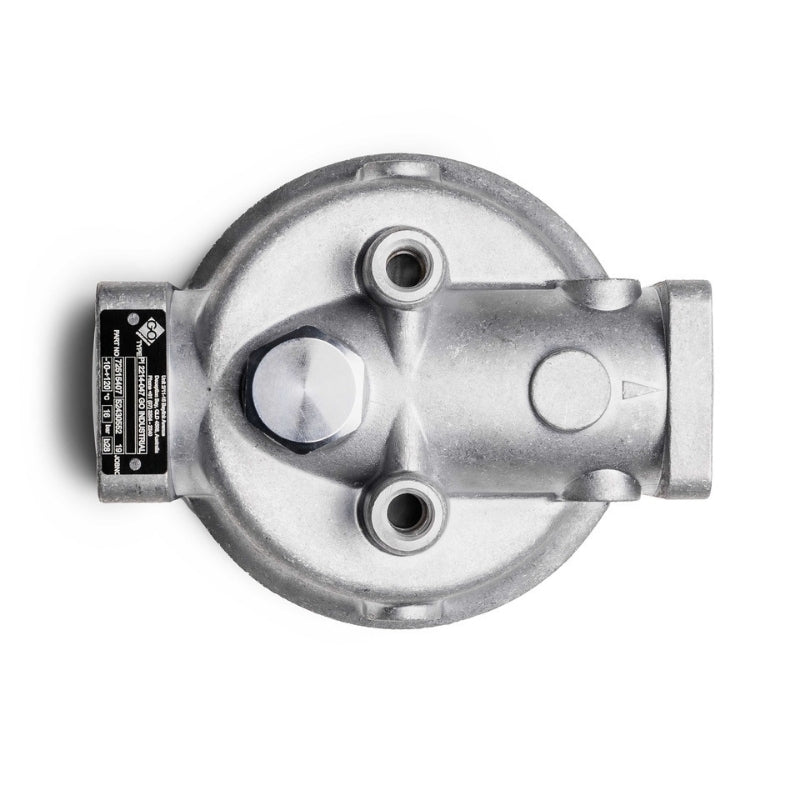

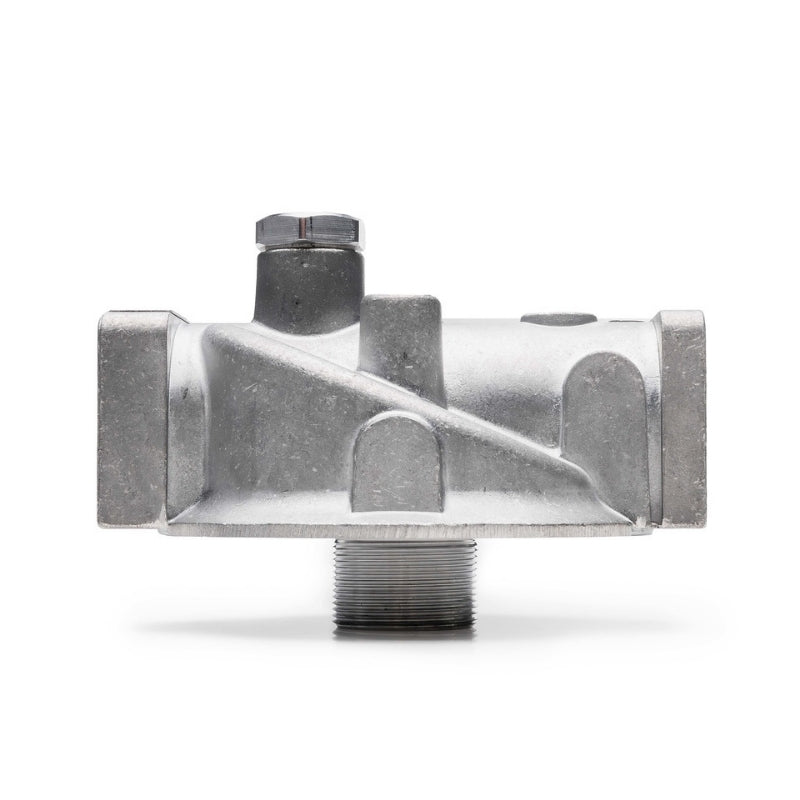

GO Filter Head DN32 (11/4") BSP F 160LPM 16 Bar

SKU: GO2214-047

GO Filter Head DN32 (11/4") BSP F 160LPM 16 Bar

$242.00 AUD
$242.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In stock and ready to ship or collect in 1 to 2 days. Delivery times vary as per courier.

Other payment options

Couldn't load pickup availability
View full details
GO Filter Head DN32 (11/4

GO Filter Head DN32 (11/4") BSP F 160LPM 16 Bar

$242.00 AUD
$242.00 AUD
Save $0
Sold out

Features

  • Designed for pipe installation
  • Connection: 1 1/4" BSPP Female (G 1 1/4)
  • Nominal Flow Rate: Up to 160 LPM (NG 160 size)
  • Max Operating Pressure: 10 bar / 140 psi (per datasheet)
  • Housing Material: Aluminium
  • Seal Material: NBR (Standard)
  • Temperature Range: -10°C to +100°C (with NBR seals)

GO Filter Head DN32 (11/4") BSP F 160LPM 16 Bar

Overview

The FILTER GO Head DN32 is a high-performance filter head designed for hose or pipe installation in modern hydraulic and lubrication systems requiring flow rates up to 160 LPM. Based on the robust Pi 2214 design, this aluminium filter head features an optimal flow path to minimise pressure drop and offers a reliable mounting point for compatible spin-on filter cartridges (like the GO37-13 series). Its compact, modular design allows for flexibility, including options for visual or electrical maintenance indicators to monitor filter element condition. This head provides a quality, serviceable solution for low-pressure filtration applications.

How it Works

The FILTER GO Head DN32 serves as the mounting interface and flow director within a low pressure fluid system. Installed directly into the piping via its 1 1/4" BSP ports, it receives unfiltered fluid from the inlet port and channels it to the attached spin-on filter cartridge (sold separately). After passing through the filter element, the cleaned fluid returns to the head and exits through the outlet port back into the system. The head ensures proper sealing of the filter element and provides connection points for optional pressure/clogging indicators.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

  • GO Data Sheet Filter Head GO2214-047

Specifications

  • Type: GO2214-047
  • Connection (A): G 1 1/4 (1 1/4" BSPP Female)
  • Filter Media: Glass Fiber (Sm-x)
  • Nominal Flow Rate: 160 L/min
  • Nominal Pressure: 10 bar (140 psi)
  • Temperature Range (NBR Seals): 10 bar (140 psi)
  • Head Material: Aluminium
  • Seal Material (Standard): NBR
  • Element Connection Thread: 1 1/2"-16 UN

Dimensions

  • Mounting Bolt Holes (D): 2 x M8
  • Mounting Hole Spacing (E): 100mm
  • Overall Width (B): 144mm
  • Overall Height (F): 110mm
  • Port Centreline Height (H): 51mm

    Features

    • Designed for pipe installation
    • Connection: 1 1/4" BSPP Female (G 1 1/4)
    • Nominal Flow Rate: Up to 160 LPM (NG 160 size)
    • Max Operating Pressure: 10 bar / 140 psi (per datasheet)
    • Housing Material: Aluminium
    • Seal Material: NBR (Standard)
    • Temperature Range: -10°C to +100°C (with NBR seals)
