Features

• Provides electrical signal for filter status
• Mounts directly onto mechanical indicator base (GO-VI77669971)
• Compatible with FILTER GO heads (e.g., GO2214-047 / Pi 220 series)
• Enables remote monitoring and system integration
• Robust electrical switching capacity
• Standard DIN 43650-A electrical connection
• IP65 protection class (with plug properly fitted)

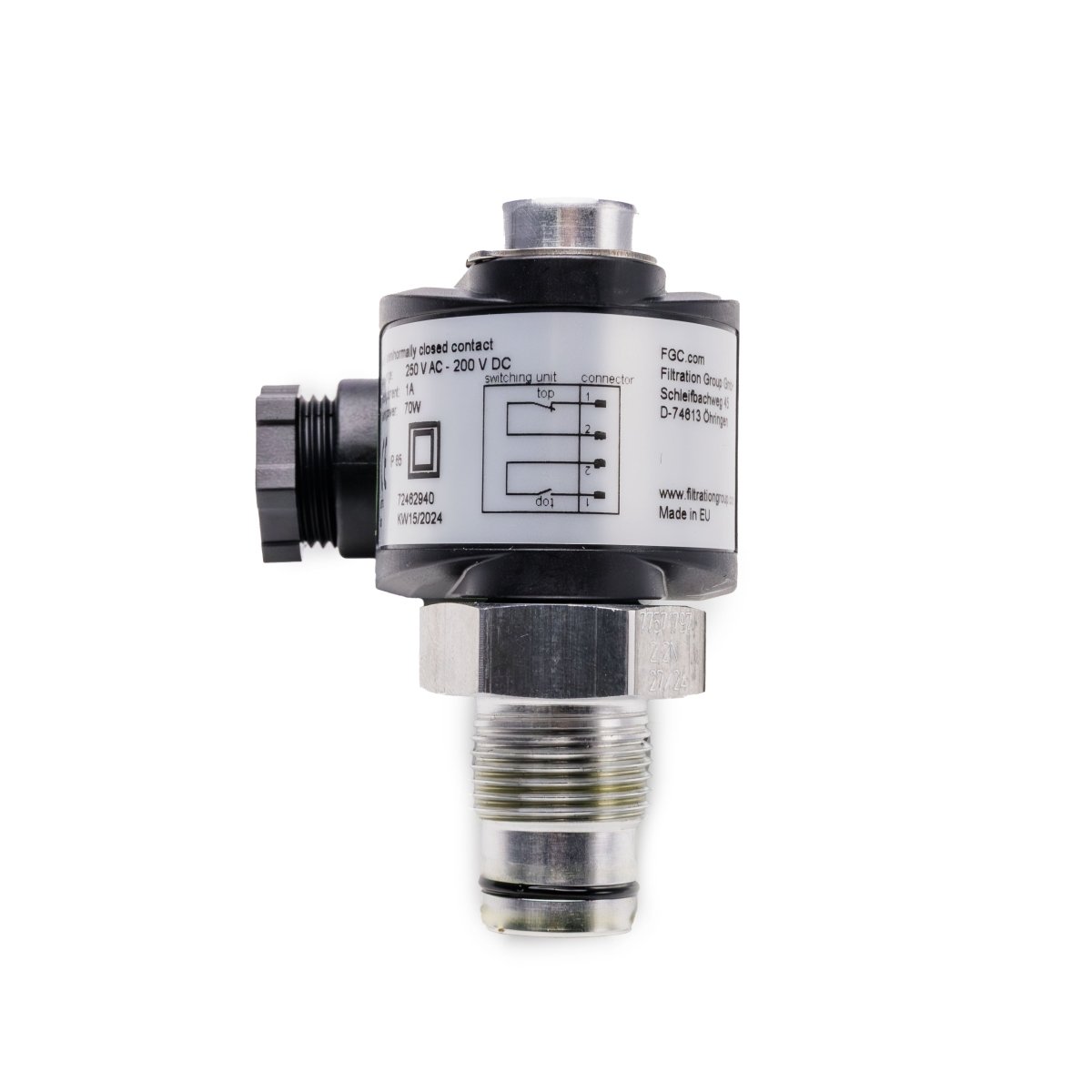

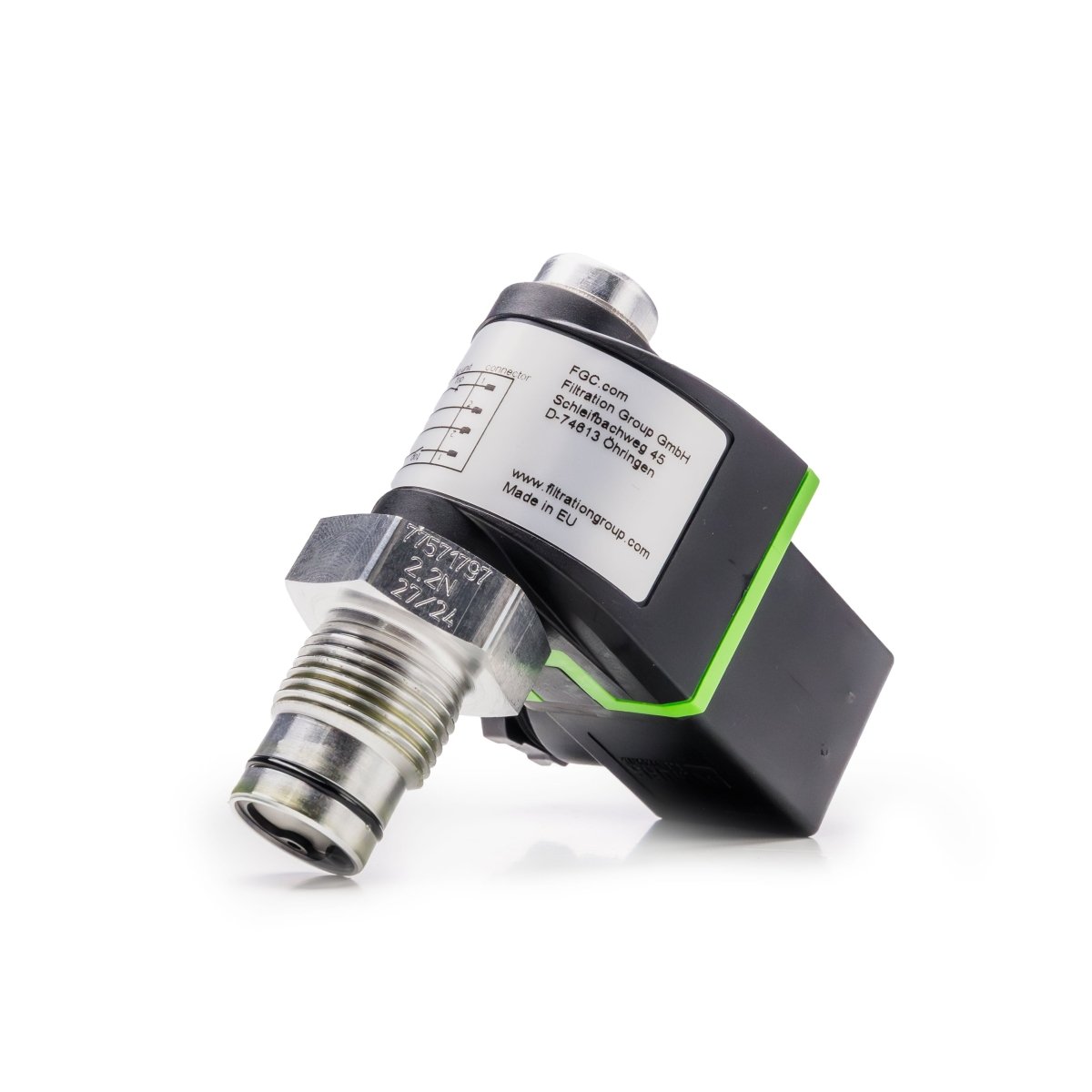

GO Filter Head Electrical Differential Pressure Indicator

Overview

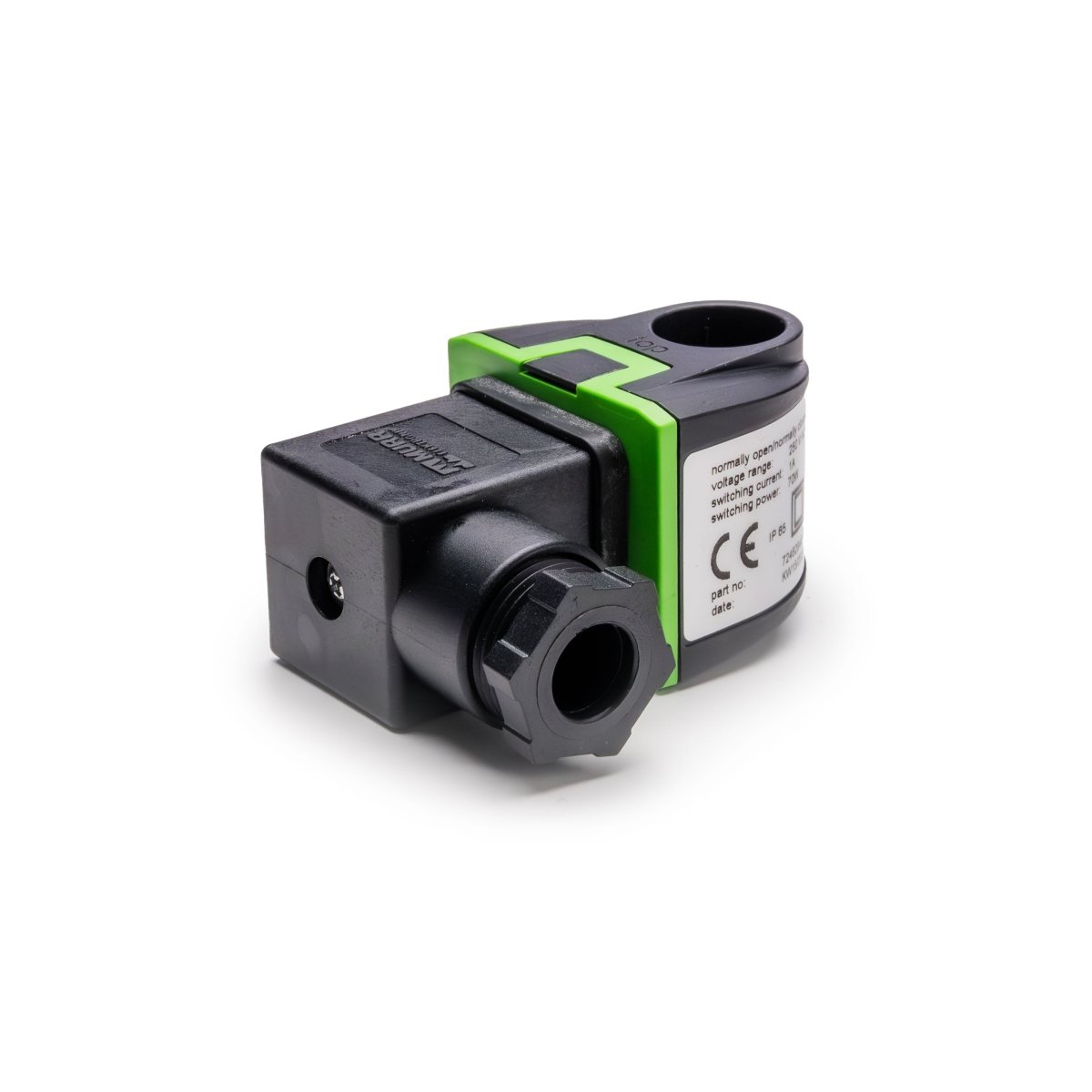

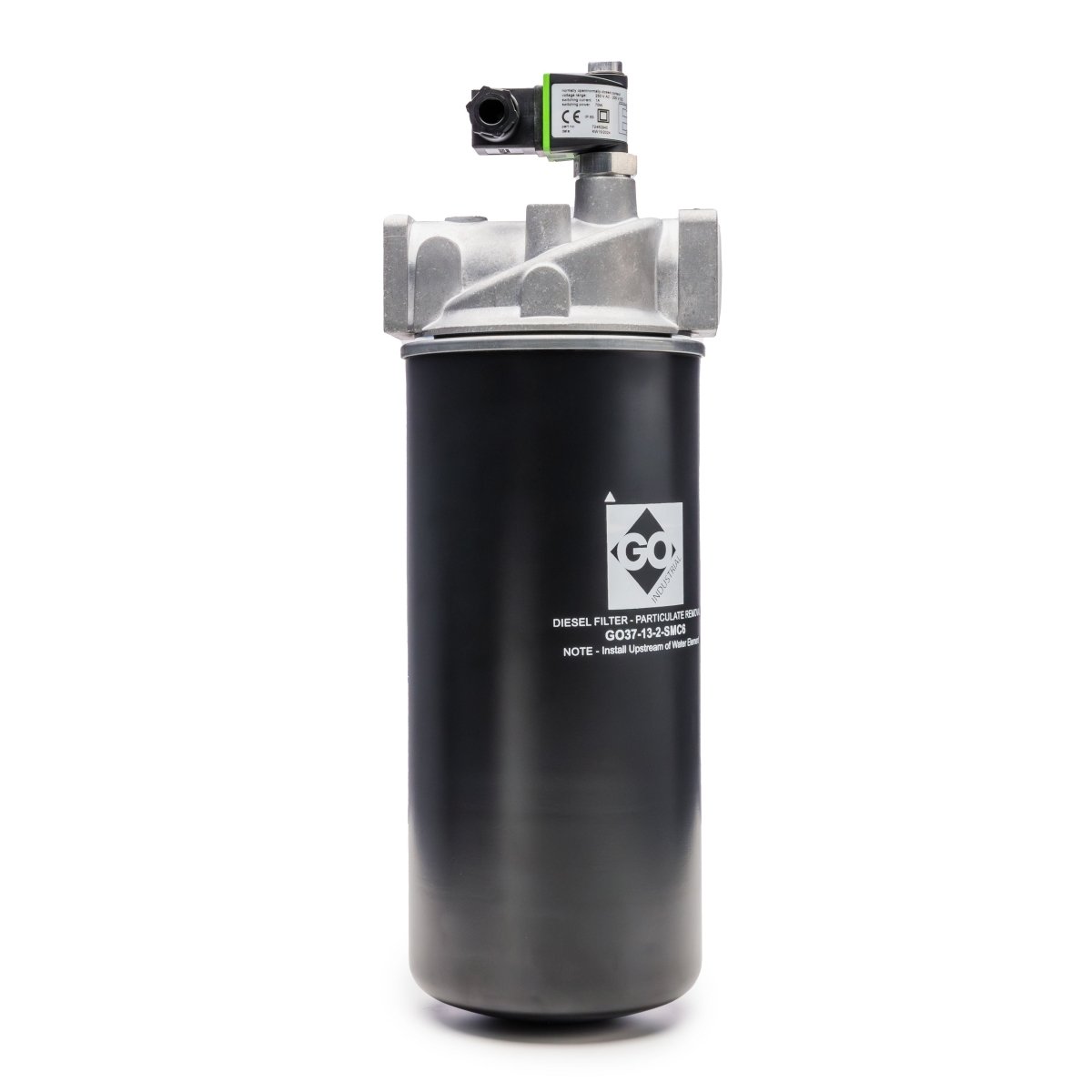

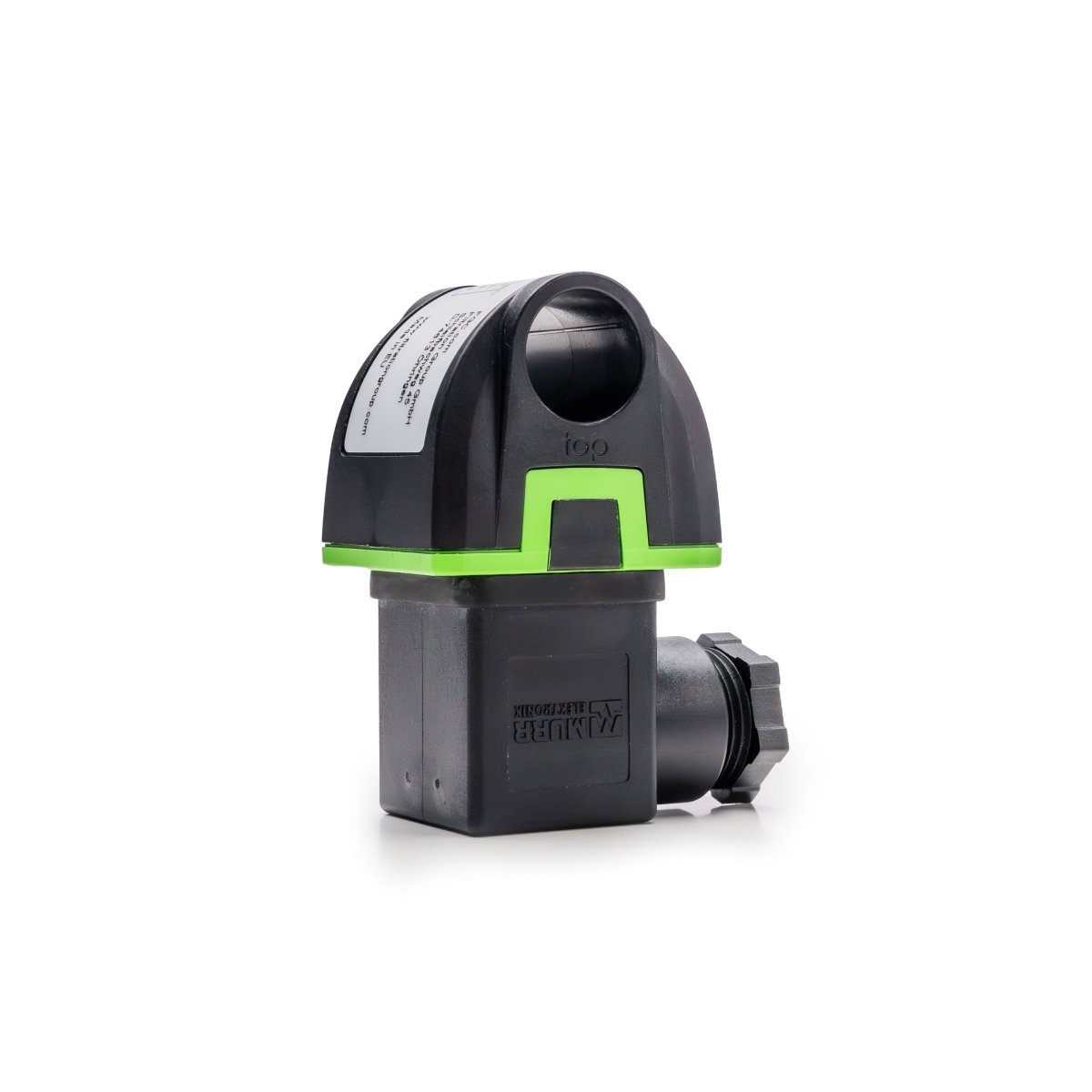

The FILTER GO Electrical Output Module (GO-VIE77536550) provides remote electrical signaling of filter element condition for compatible filter housings. Designed specifically to mount onto the FILTER GO Mechanical Differential Pressure Indicator base (GO-VI77669971 / PiS 3098), this module converts the mechanical indicator's actuation into an electrical signal. When the filter element reaches its preset differential pressure limit (determined by the mechanical base), this module activates its internal switch, allowing for integration with control systems, alarms, or remote monitoring panels. It's designed for use with FILTER GO heads like the GO2214-047 (Pi 220 series).

How it Works

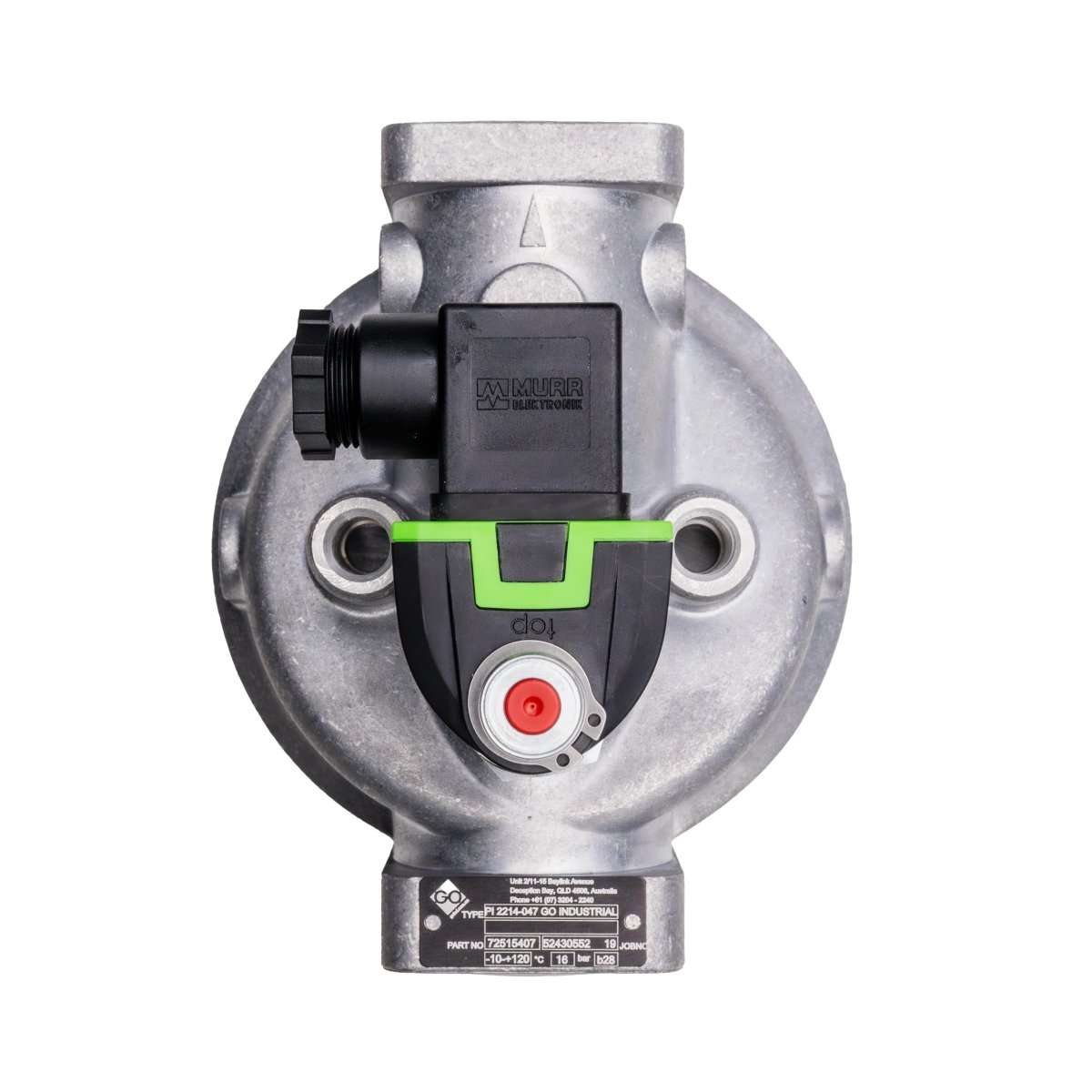

Attached to the compatible mechanical indicator (GO-VI77669971), this module is triggered when high differential pressure actuates the indicator base. This movement activates the module's internal switch, providing an electrical signal via the DIN connector to alert monitoring systems (PLCs, alarms, lights) that filter service is needed.

Data Sheet
GO Data Sheet Mechanical Differential Pressure Indicator GO-VIE77536550 37440bd2-ef12-4bee-a306-8048d1604183

Specifications

• Type: Electrical Output Module
• Required Base: GO2214-047
• Max Voltage Rating: 250 V AC / 200 V DC
• Max Current Rating: 5 A AC / 2 A DC
• Electrical Connection: Plug per DIN 43650-A / ISO 4400
• Protection Class: IP 65

Features

• Provides electrical signal for filter status
• Mounts directly onto mechanical indicator base (GO-VI77669971)
• Compatible with FILTER GO heads (e.g., GO2214-047 / Pi 220 series)
• Enables remote monitoring and system integration
• Robust electrical switching capacity
• Standard DIN 43650-A electrical connection
• IP65 protection class (with plug properly fitted)
