GO Helios Self Bunded Tank - 5,000L - GO Industrial - GO - Helios - 5

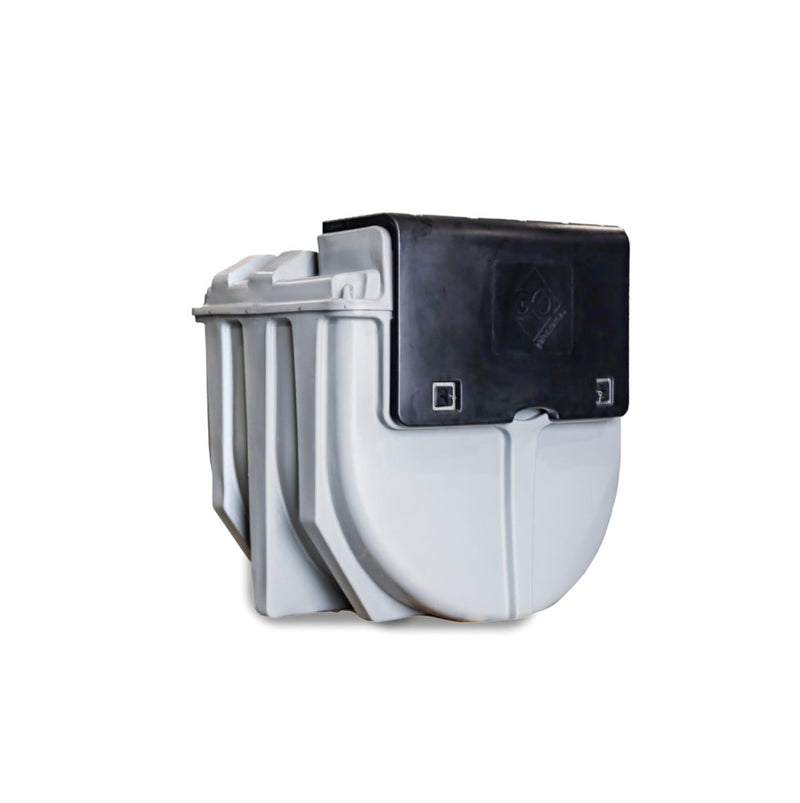

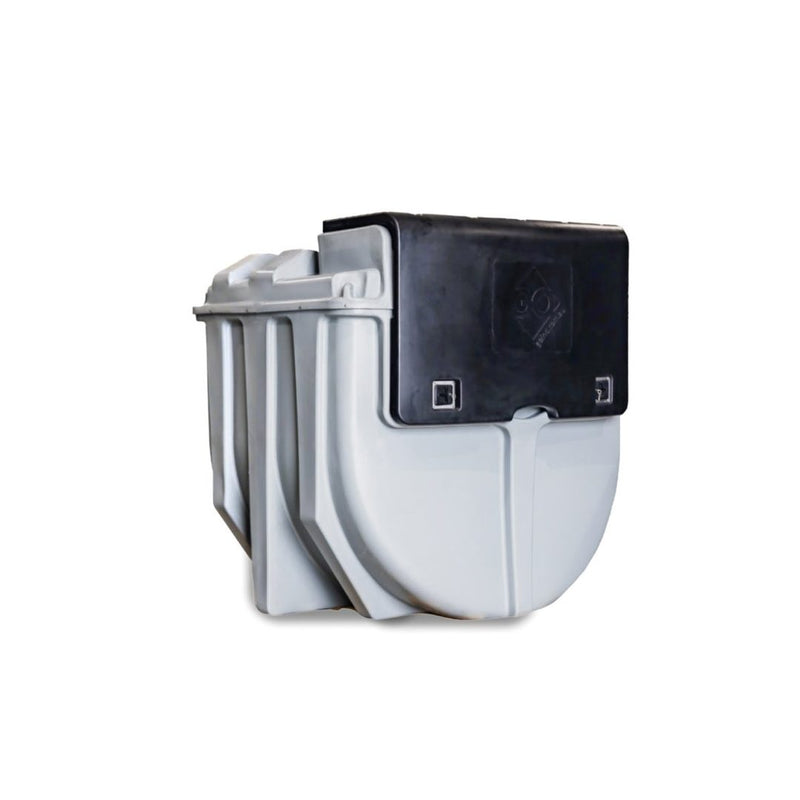

GO Helios Self Bunded Tank - 5,000L

SKU GO-Helios-5
Afterpay Zip PayPal LeaseGO
$12,954.55 ex GST · $14,250.00 inc GST
Prices shown ex GST.
Quantity
Contact for pricing

Get a shipping estimate

The same live rates you'll see at checkout, for this item.

GO Helios Self Bunded Tank - 5,000L · Qty 1

Estimate inc GST for this item plus anything already in your cart. Your final rate is confirmed at checkout.

Need it palletised or delivered to site? Chat with us.

Calculate your LeaseGO repayments

Spread the cost over 24, 36 or 48 months with simple monthly payments.

Business customers only. LeaseGO finance is available to businesses with an active ABN. It isn't available for personal or household purchases.

$
Pick a term that suits your cash flow
24 months
Per month-
Per week-
Per day-
36 months
Per month-
Per week-
Per day-
48 months
Per month-
Per week-
Per day-

Terms and conditions apply, subject to suitability assessment. Prices quoted are indicative only and payable monthly in advance over the chosen term. $99 Establishment Fee payable upon commencement ($79 under $1,500). Visit LeaseGo.com.au to learn more.

Scan or click here to apply now with LeaseGo

Apply in minutes with your mobile, licence and ABN, then give your approval number to the GO team.

Apply now
LeaseGo application QR code

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Unlock superior fuel storage for your operation, no matter the scale. The GO Helios Self-Bunded 5,000L Tank delivers the same premium performance and compliance as its larger counterpart (GO Helios Self Bunded Tank - 10,000L), perfectly sized for businesses needing a more compact footprint. This robust poly tank provides a complete, reliable solution for on-site fuel management. Engineered for smaller-scale operations that refuse to compromise on safety and efficiency. Whether you need a dependable Diesel tank or a specialised AdBlue tank, this unit offers the same advanced features in a more versatile size.

How it Works

This isn't just a container, it's a fully integrated fuel management system designed for maximum safety and immediate use.

  • 110% Self-Bunded Security: Its double-walled, self-bunded design offers 110% containment, preventing spills and eliminating the need for costly concrete bunds.
  • Plug-and-Play Simplicity: Arrives ready-to-use with a pre-installed PIUSI pump. Just plug in and go. Available in 240V or 12V with various flow rates.
  • Integrated Pumping Cabinet: The integrated cabinet with an 80L bund contains spills during dispensing, protecting your site and the environment.
  • True Capacity Guarantee: Our design ensures the safe fill level allows for maximum usable storage, so you get the full capacity you pay for.
Features

Features

  • Minimum Clearances
    • Tank to be accessible for fuel deliveries, with barriers to prevent
      vehicle damage.
    • 3m from buildings, public areas, boundary or ignition sources
    • 8m from other flammable storage
    • 15m vegetation clearance in rural areas
  • Base Requirements
    • Concrete bitumen, or compacted crusher dust
    • 75–100mm thick, extending 300mm beyond the tank base

  • Fire & Safety
    • Keep a fire extinguisher within 10–15m
    • Signage: "Diesel Fuel – No Smoking", tank capacity and Warning
      Signage - this comes standard with your Fuel Bunker

  • Spill & Electrical Safety
    • Have a spill kit on site and train staff in its use
    • If connecting to mains, an electrician must install the power and
      earthing rod.
  • Built-in Compliance Features
    • 110% bunding capacity - A bunded tank is a tank within a tank
      the outer tank captures leaks or spills from the inner tank.
    • Breather vents and overfill protection
    • Earthing rod and antistatic probe included
    • Pre-fitted diesel-grade pumps, hoses, and nozzles
    • Lockable cabinet with built-in containment
Specifications

  • 110% Self-Bunded: Double-walled design contains leaks and spills. The outer tank is engineered to hold 110% of the inner tank's capacity, providing peace of mind and eliminating the need for costly and space-consuming concrete bunds.

  • Plug & Play: pump system is installed and ready to use - Quality PIUSI pump, choose an option to best suit - 240V, 12V, High or Low Flow options.

  • Fully Integrated Pumping Cabinet with 80L Bund: Ensures overfill protection at the point of dispensing with a fully integrated bund in the cabinet to collect fill spillage.

  • True Capacity Guarantee: Safe fill level ensures maximum usable storage.

  • Long-life build: Unlike steel, UV-stabilised polyethylene won’t rust, corrode or crack.

  • Australian made: built for harsh climates by a trusted local manufacturer. UV-resistant, will not rust.

  • Australian Standards Compliance: Designed to AS1940:2017 (The Storage and Handling of Flammable and Combustible Liquids) and AS4766 (Polyethylene Storage Tanks).

Dimensions

  • Length: 2,410cm
  • Width: 2,320cm
  • Height: 2,292cm

Weight

  • Diesel Tank: 570KG
  • AdBlue Tank: 615KG
