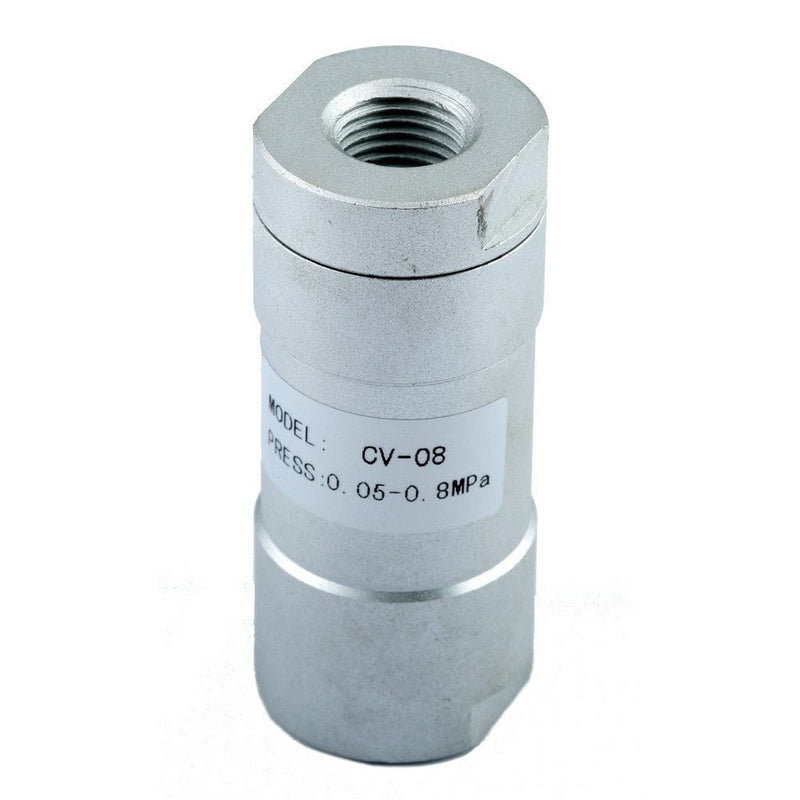

Aluminium in line check valve for air and inert gases, with a 0.5 to 12 BAR operating pressure range and media temperatures from -5°C to 60°C. Great for installation in pneumatic systems where backflow prevention is needed, and it can be installed in any direction. Available from 1/8" to 1" BSP.
Included accessories
Specifications
| Specification | ACV-01 | ACV-02 | ACV-03 | ACV-04 | ACV-05 | ACV-06 |
|---|---|---|---|---|---|---|
| Port Size | G1/8” | G1/4” | G3/8” | G1/2” | G3/4” | G1” |
| Nominal Diameter | 6mm | 8mm | 10mm | 15mm | 20mm | 25mm |
| Pressure Range | 0.5 to 12 BAR | |||||
| Max Inlet Pressure | 12 BAR | |||||
| Medium Temperature | -5 to 60°C | |||||
| Body | Aluminium | |||||
| Lubrication | Not Required | |||||
| Applicable Medium | Air | |||||
