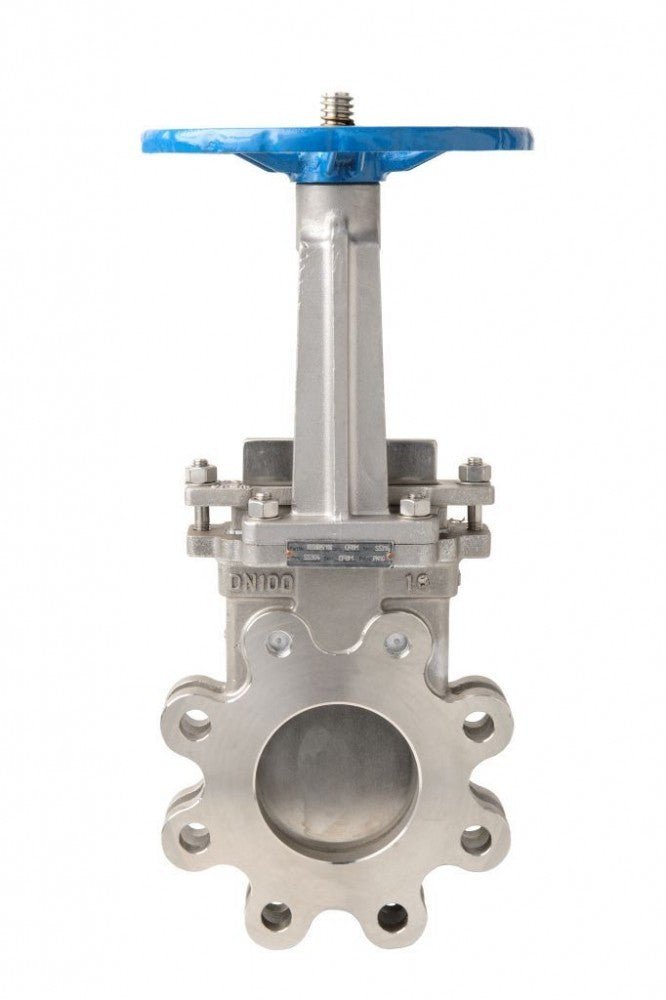

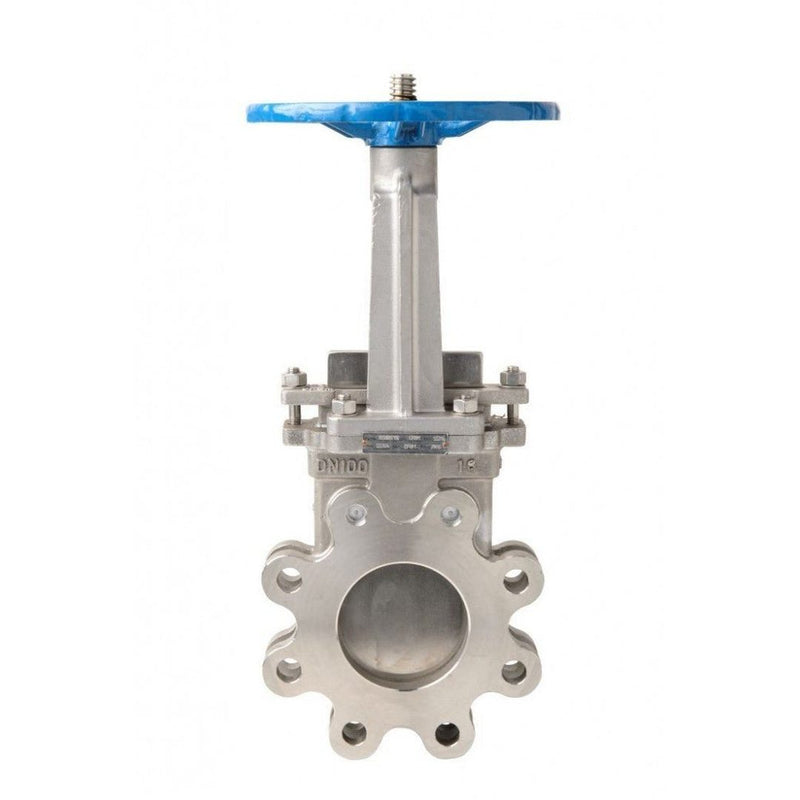

316 stainless steel wafer knife gate valve with a resilient NBR seat or metal seat and a 316 stainless steel gate. It is operated by a rising stem hand wheel and is suitable for media pressures up to 10 BAR. Suitable for slurries, effluent, the wine industry and sewerage treatment plants. It suits table E flanges, with other flanges available on request. Designed in accordance with MSS SP-81. In the model code, insert N for NBR or M for a metal seat.
Options include chain drive, lever operation, an extension shaft and a deflector cone, with seat materials available in EPDM, PTFE and FKM. Sizes up to 2400mm are available on request.
Included accessories
Specifications

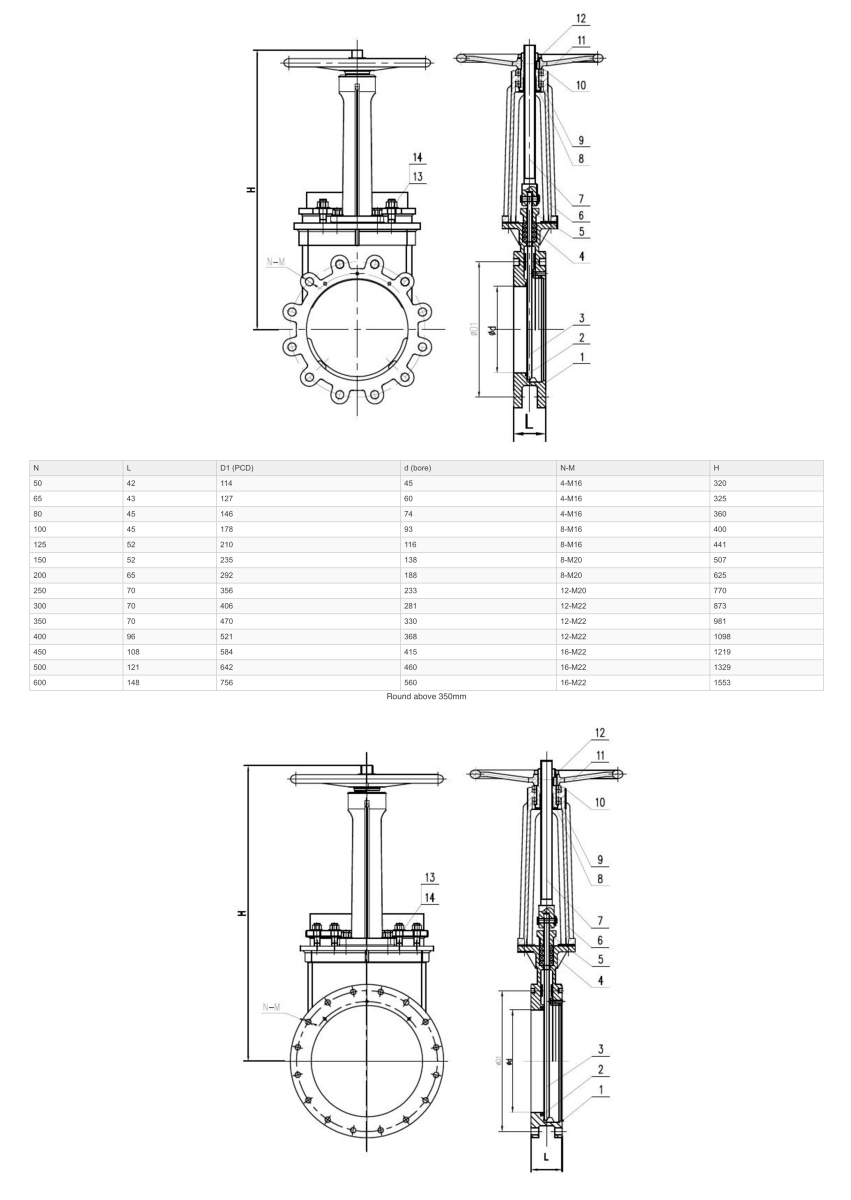

| Model | Size (mm) | Pressure Range | Media Temperature | Weight (kg) |
|---|---|---|---|---|
| KGSHR*-50 | 50 | 0 to 10 BAR | 0°C to 80°C NBR, 150°C Metal | 4 |
| KGSHR*-65 | 65 | 0 to 10 BAR | 0°C to 80°C NBR, 150°C Metal | 5 |
| KGSHR*-80 | 80 | 0 to 10 BAR | 0°C to 80°C NBR, 150°C Metal | 9 |
| KGSHR*-100 | 100 | 0 to 10 BAR | 0°C to 80°C NBR, 150°C Metal | 11 |
| KGSHR*-125 | 125 | 0 to 10 BAR | 0°C to 80°C NBR, 150°C Metal | 17 |
| KGSHR*-150 | 150 | 0 to 10 BAR | 0°C to 80°C NBR, 150°C Metal | 27 |
| KGSHR*-200 | 200 | 0 to 10 BAR | 0°C to 80°C NBR, 150°C Metal | 32 |
| KGSHR*-250 | 250 | 0 to 10 BAR | 0°C to 80°C NBR, 150°C Metal | 60 |
| KGSHR*-300 | 300 | 0 to 10 BAR | 0°C to 80°C NBR, 150°C Metal | 90 |
| KGSHR*-350 | 350 | 0 to 10 BAR | 0°C to 80°C NBR, 150°C Metal | 110 |
| KGSHR*-400 | 400 | 0 to 10 BAR | 0°C to 80°C NBR, 150°C Metal | 166 |
| KGSHR*-450 | 450 | 0 to 10 BAR | 0°C to 80°C NBR, 150°C Metal | 242 |
| KGSHR*-500 | 500 | 0 to 10 BAR | 0°C to 80°C NBR, 150°C Metal | 298 |
| KGSHR*-600 | 600 | 0 to 10 BAR | 0°C to 80°C NBR, 150°C Metal | 430 |
