GO Knifegate Valve Manual Cast Iron KGDHW Range
SKU: KGDHWN-50
$275

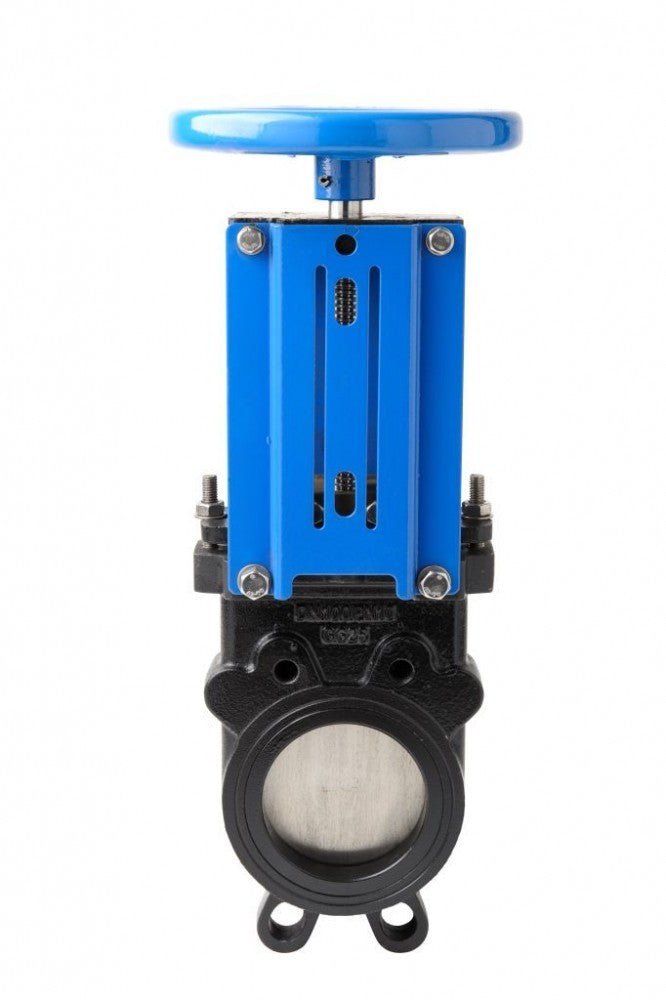

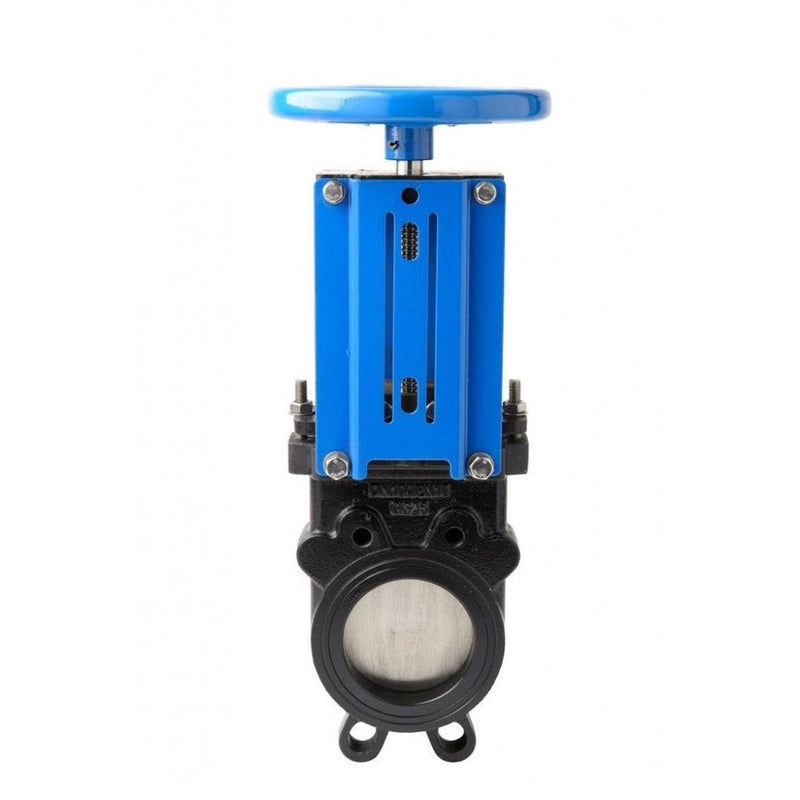

GO Knifegate Valve Manual Cast Iron KGDHW Range
Cast iron wafer knife gate valve with resilient seat (NBR) and 316 stainless steel gate. Operated by a non rising stem hand wheel and suitable for up to 10 BAR media pressure.
Great for effluent, sewerage treatment plants and other applicable media (not recommended for abrasive media which will sit in seats).
Suits table E & AS4087 PN16 flanges. Unique design allows for a long life and low maintenance once installed. Accepts bi-directional flow. Other flanges available upon request. Designed to JB308, face to face according to DIN3202-K1 and tested to ISO5208.
- Size 50mm to 300mm
- Body Cast Iron
- Seat NBR
- Gate 316 Stainless Steel
- Pressure 10 BAR
- Actuation Hand Wheel Non-Rising Spindle
| Model | Size (mm) | Pressure Range | Media Temperature | Weight (kg) |
|---|---|---|---|---|
| KGDHWN-50 | 50 | 0 to 10 BAR | 0°C to 80°C | 6 |
| KGDHWN-65 | 65 | 0 to 10 BAR | 0°C to 80°C | 8 |
| KGDHWN-80 | 80 | 0 to 10 BAR | 0°C to 80°C | 9 |
| KGDHWN-100 | 100 | 0 to 10 BAR | 0°C to 80°C | 11 |
| KGDHWN-125 | 125 | 0 to 10 BAR | 0°C to 80°C | 20 |
| KGDHWN-150 | 150 | 0 to 10 BAR | 0°C to 80°C | 21 |
| KGDHWN-200 | 200 | 0 to 10 BAR | 0°C to 80°C | 30 |
| KGDHWN-250 | 250 | 0 to 10 BAR | 0°C to 80°C | 50 |
| KGDHWN-300 | 300 | 0 to 10 BAR | 0°C to 80°C | 60 |
