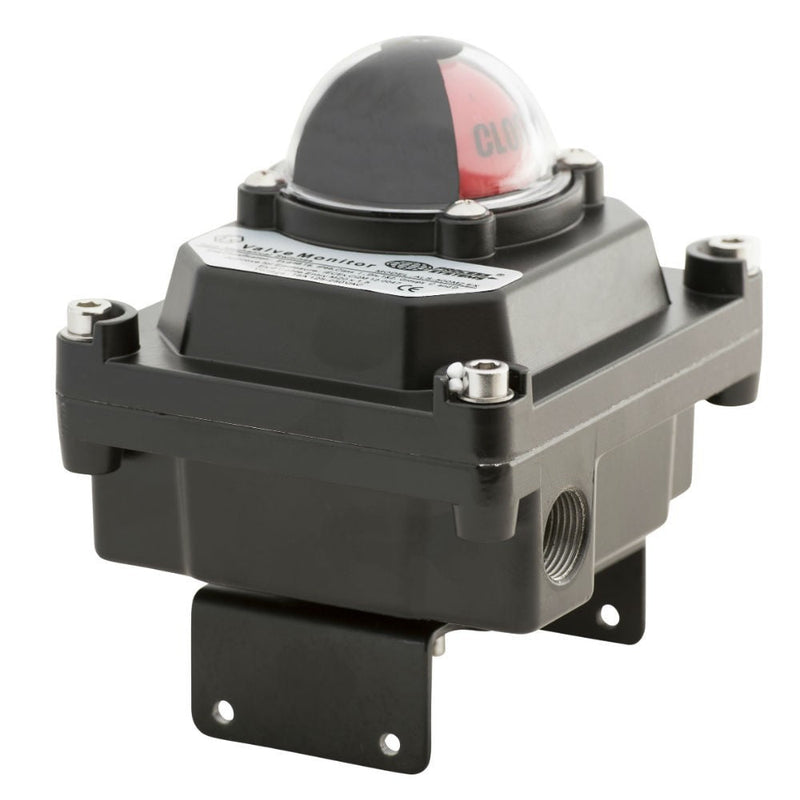

GO EXD IECEX Limit Switch Box for Pneumatic Actuator
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
Our hazardous area limit switch box is designed to mount onto the top of pneumatic actuators to give position feedback. Four adjustable SPDT mechanical switches (two for open and two for closed) are wired into a terminal block. It also has termination for a solenoid valve so that a single multiple cable can be used. The solenoid can then be wired through the second conduit entry.
Specifications
Construction
- Powder coated aluminium body limit switch box.
- Two M20x1.5 cable entry. High visability dome indicator.
- 2 x SPDT 15A 125-250vAC Honywell limit switches for Open/Close indication
- Ex d IIC T6 IP66. M20x1.5 connection. -20 to+50deg.C IECEx CQM 12.0047
| Enclosure | Die cast aluminium or 316 Stainless Steel |
|---|---|
| Coating | Dichromate conversion with polyester powder coating |
| O-Rings | NBR |
| Environment | IP66 |
| Fasteners | Stainless Steel |
| Shaft | Stainless Steel |
| Conduit Entries | Two M20 x 1.5 |
| Terminal Strip Contacts | 14 |
| Mounting Bracket | MB- 3.4:30 x 80, 130 H:20, 30 carbon steel or 316 SS |
| Temperature Rating | -20°C to 85°C |
| Operating Voltage | Max 15A |
- Function IECex Limit Swithc Box
- Switches 2 x SPDT
- Body Powder Coated Aluminium
- IP Rating IP66
