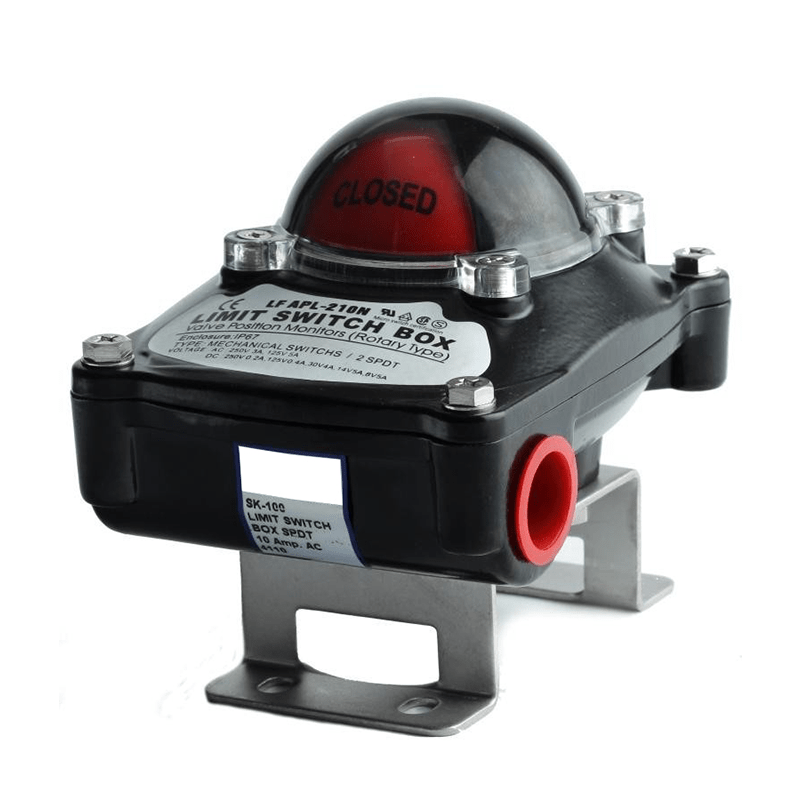

GO Limit Switch Box for Pneumatic Actuator
Overview
The SK100 series of limit switch box is a multifunctional unit that gives panoramic visual indication of the valve position as well as an electrical feedback from two micro switches. The terminal strip and twin conduit entry points allow a solenoid valve and micro switches to be wired up through a single multi core cable.
Specifications
| Item | Standard |
|---|---|
| Enclosure | Weatherproof IP67/NEMA4 & 4X |
| Temperature | -20°C to 80°C |
| Conduit Entries | 2 x M20 |
| Terminal Strips | 8 points (.08-2.5mm²) |
| Position Indicator | Closed: Red, Open: Yellow |
| Switches | Mechanical switch x 2 SPDT |
| External Coating | Polyester powder coating (black) |
| Shaft | ISO Standard (17mm long) |
| Housing | Powder coated die cast aluminium |
| Cam | Quick Set spring loaded splined cam (no need to adjust again after initial setting, set without tools) |
| Mounting Interface | Namur |
| Max Current |
10 AMP AC, 2 AMP DC |
Construction
- Powder coated aluminum body. IP67 protection.
- Two M20 cable entry. High visability dome indicator.
- Two single pole double throw voltage free switches.
- Max current 10 AMP AC, 2 AMP DC
| Part | Material |
|---|---|
| Body | Aluminium die cast |
| Shaft | Stainless Steel |
| Indicator Cover | Polycarbonate |
| Indicator | ABS/Polycarbonate |
| Cam | Polycarbonate |
| Spring | Stainless Steel |
| Housing cover bolt | Stainless Steel |
| O-Ring | NBR |
| Bushing | Bronze |
| E-Ring (shaft) | Stainless Steel |
| Earth Lug | Stainless Steel |
| Bracket | Stainless Steel |
- Function Limit Switch Box
- Switches 2 x SPDT
- Body Powder Coated Aluminium
- IP Rating IP66
