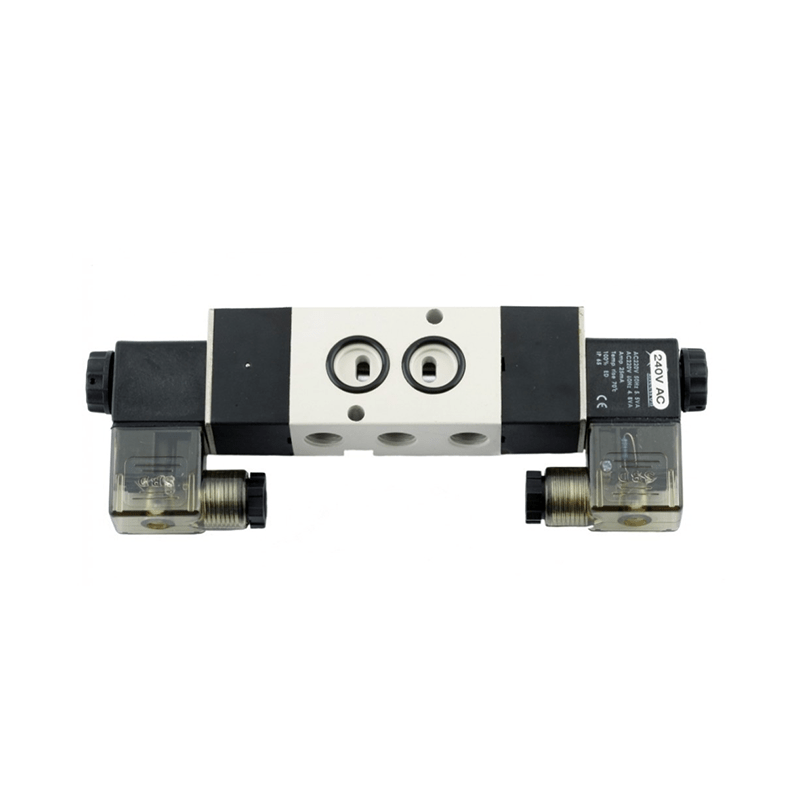

GO Namur END12 5 Way 2 Position Double Solenoid Valve 1/4"
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
5 way 2 position solenoid valve (double solenoid, one each end) with namur interface making it suitable for direct mounting onto pneumatic actuators (both double acting and spring return). Standard features include manual override, led indicator plug (IP65), fully encapsulated low wattage coil. Includes mounting screws and gasket orings.
Specifications
Aluminium 5 way 2 position differential namur solenoid/solenoid valve.G1/4", 5mm orifice, 304 SS operator, copper shading ring, NBR seat, man o/ride.1.5-8 BAR pressure range, media temp 5°C to 80°C.Coil Class F insulation, 4.8 Watts, IP65 protection.
| Model | Port Size | Orifice ømm | CV | Pressure | Media Temp | Weight Kg | Coil specifications |
|---|---|---|---|---|---|---|---|
| END12*5 | 1/4" BSP | 5 | 1.4 | 1.5 to 8 BAR | 5°C to 80°C | 0.5 | SC-A1 6 Volt Amps 5 Watts Class F Insulation 100% ED |
